DJI ARGAS T30

A New Flagship for Digital Agriculture

With a 30 liter spraying tank, the DJI Agras T30 takes aerial spraying efficiency to new heights. A revolutionary transforming body enables more effective spraying, especially for fruit trees. Using DJI digital agriculture solutions, the T30 helps reduce fertilizer use and increase yield with effective, data-driven best practices.

30L Spray Tank

Spherical Radar System

IP67 Water and Dust Resistance

Dual FPV Cameras for Monitoring

High Precision Operation

Smart Agriculture Cloud Platform

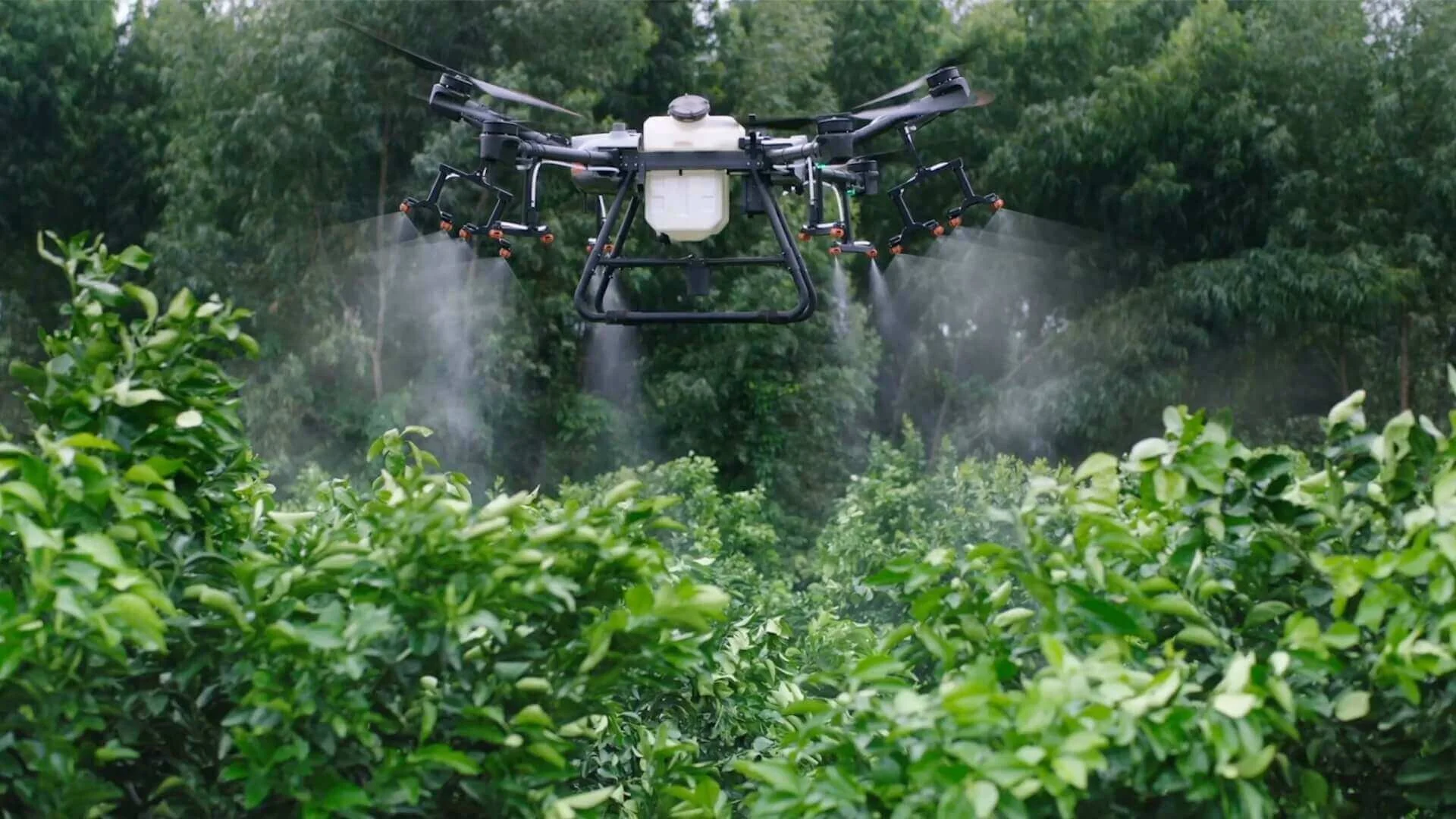

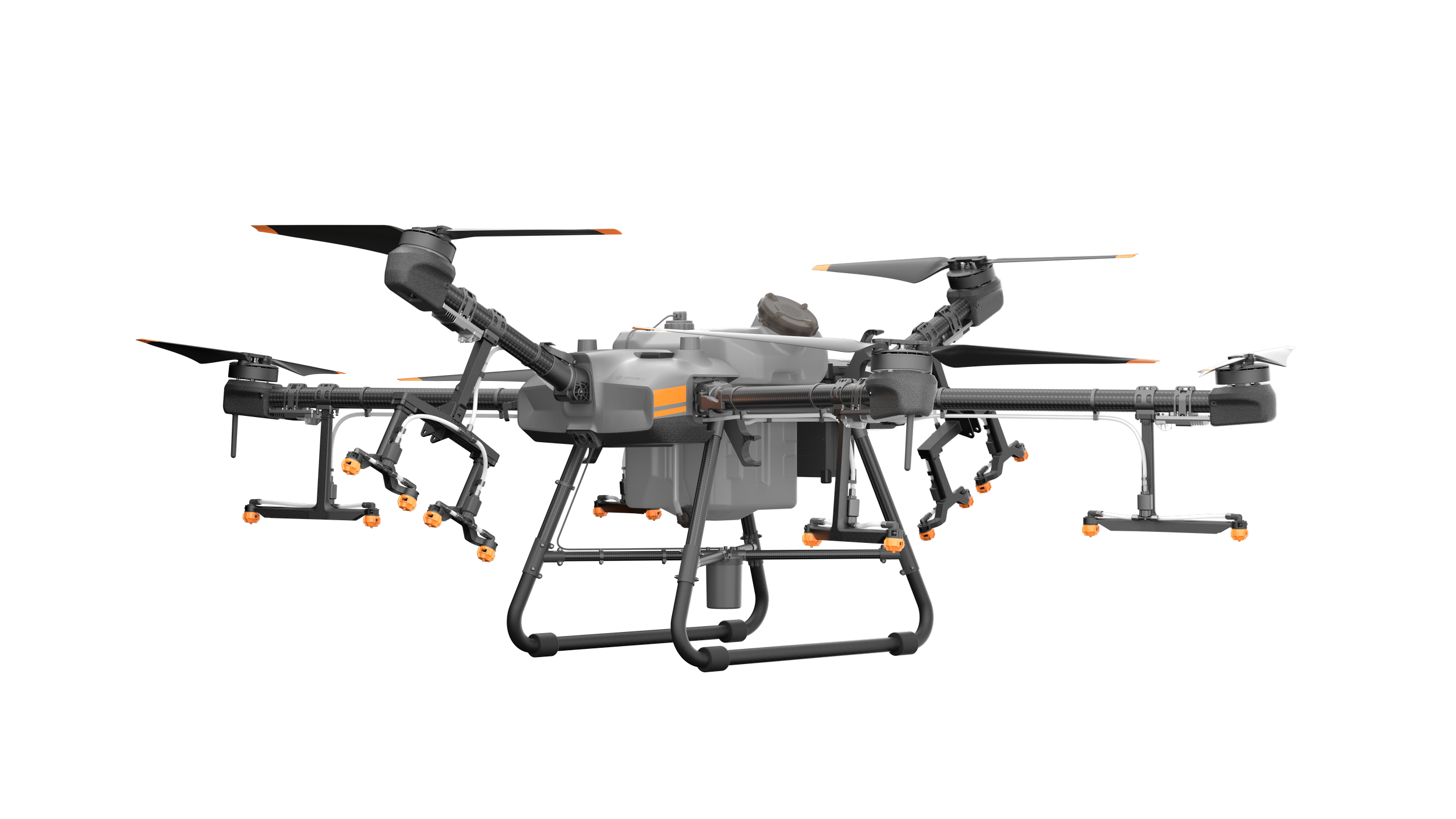

Branch-Targeting Technology for Thorough Penetration

With revolutionary branch-targeting technology and adjustable arms, the Agras T30 penetrates thick canopies with oblique spraying, ensuring an even application of liquid pesticides and doubling the number of droplets. [1] With the help of the Smart Agriculture Cloud Platform and cloud-based mapping, users can manage a 3D digital orchard, making it easy to get started with digital agriculture.

16 spray nozzles provide extensive coverage with even distribution, strong penetration, and exceptional drift prevention

A 16-nozzle layout further improves droplet penetration. Eight sets of solenoid valves enable independent variable frequency control and spraying in turn. The horizontally opposed six-cylinder double plunger pump design provides strong spraying power and a high flow rate of up to 8 liters per minute.

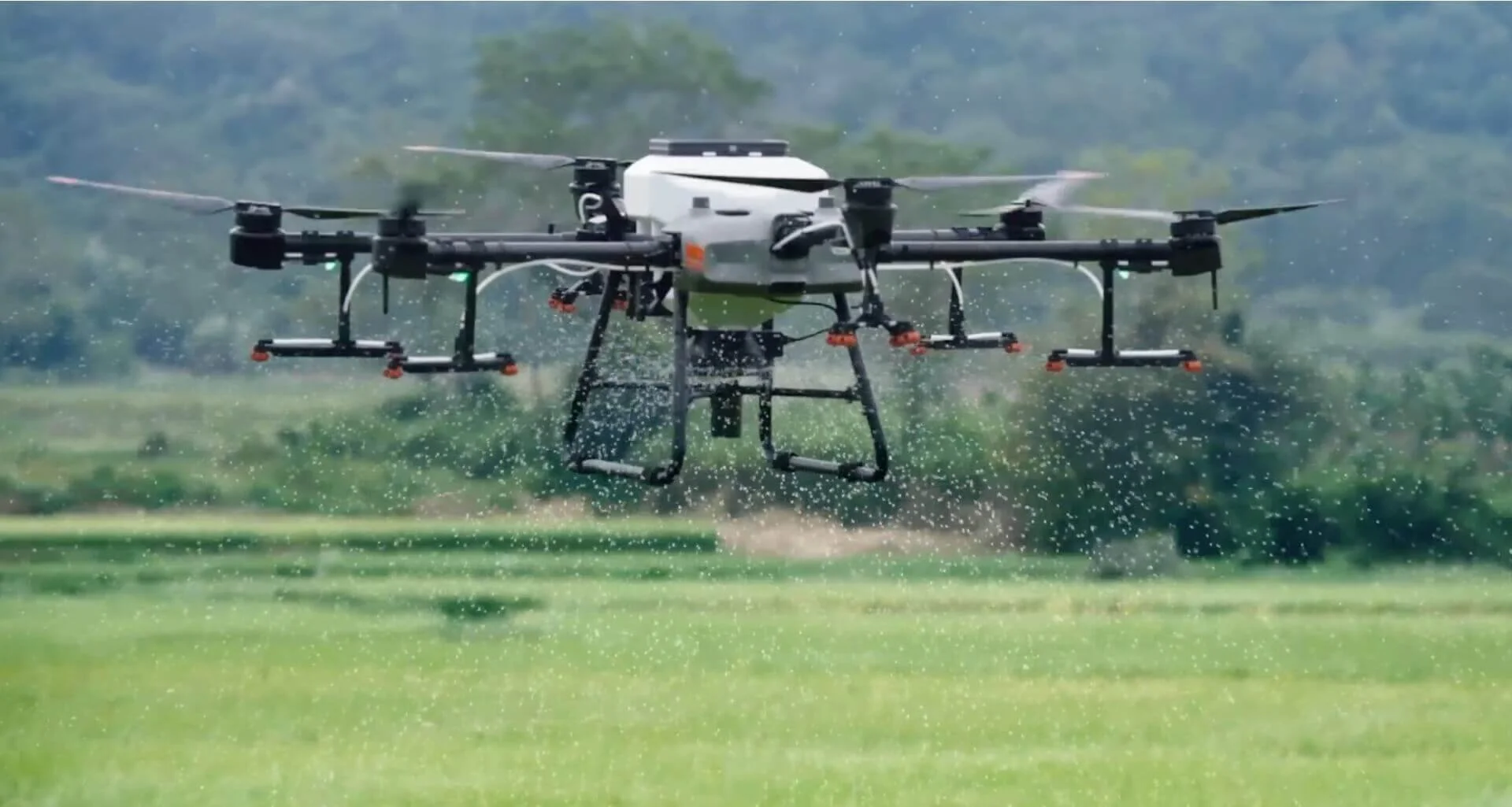

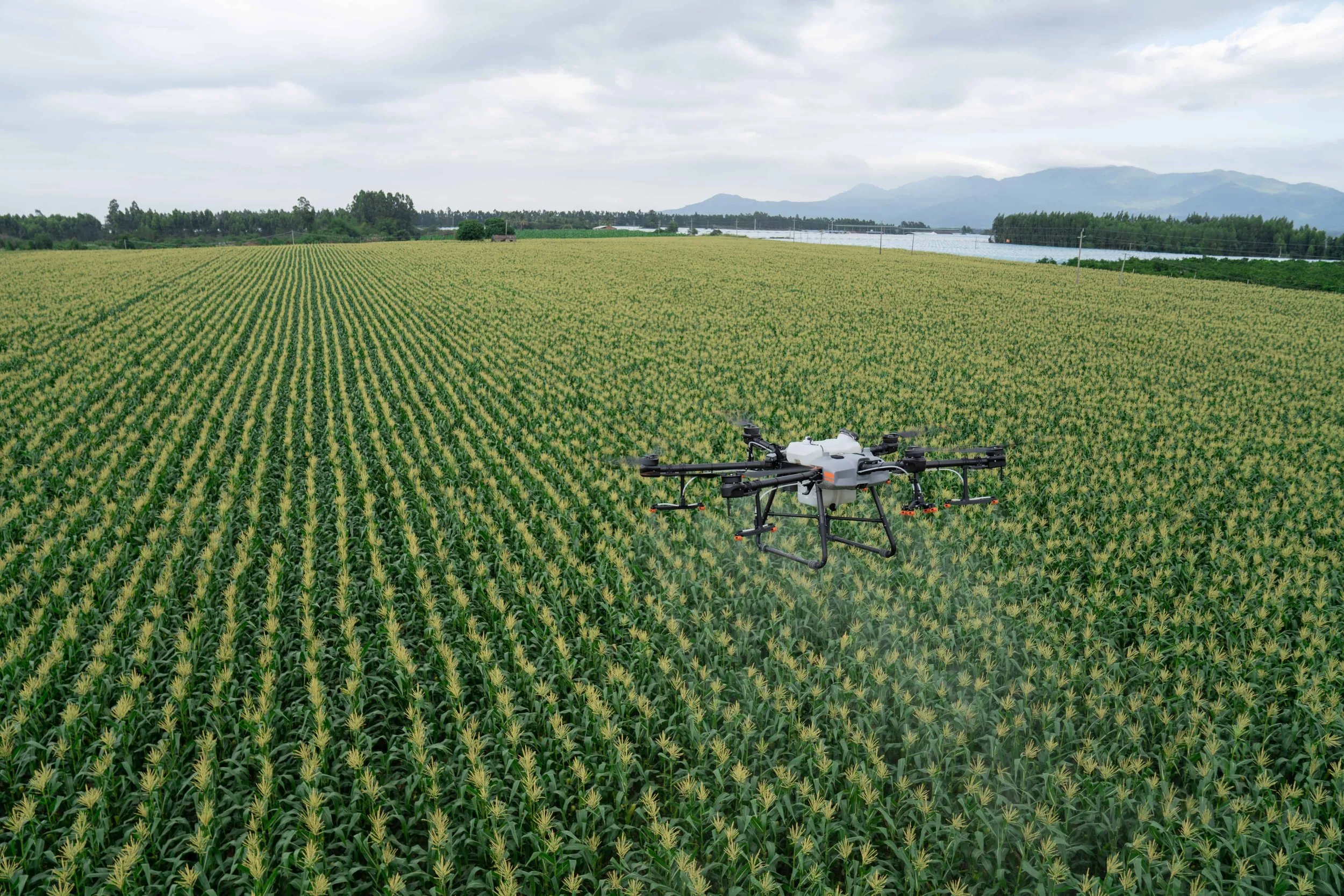

40 Acres per Hour

Equipped with a large 30kg spray tank, the Agras T30 has a spray width of 9 meters, and field spraying efficiency of 40 acres/hour, 33.3% more than its previous generation. [2]

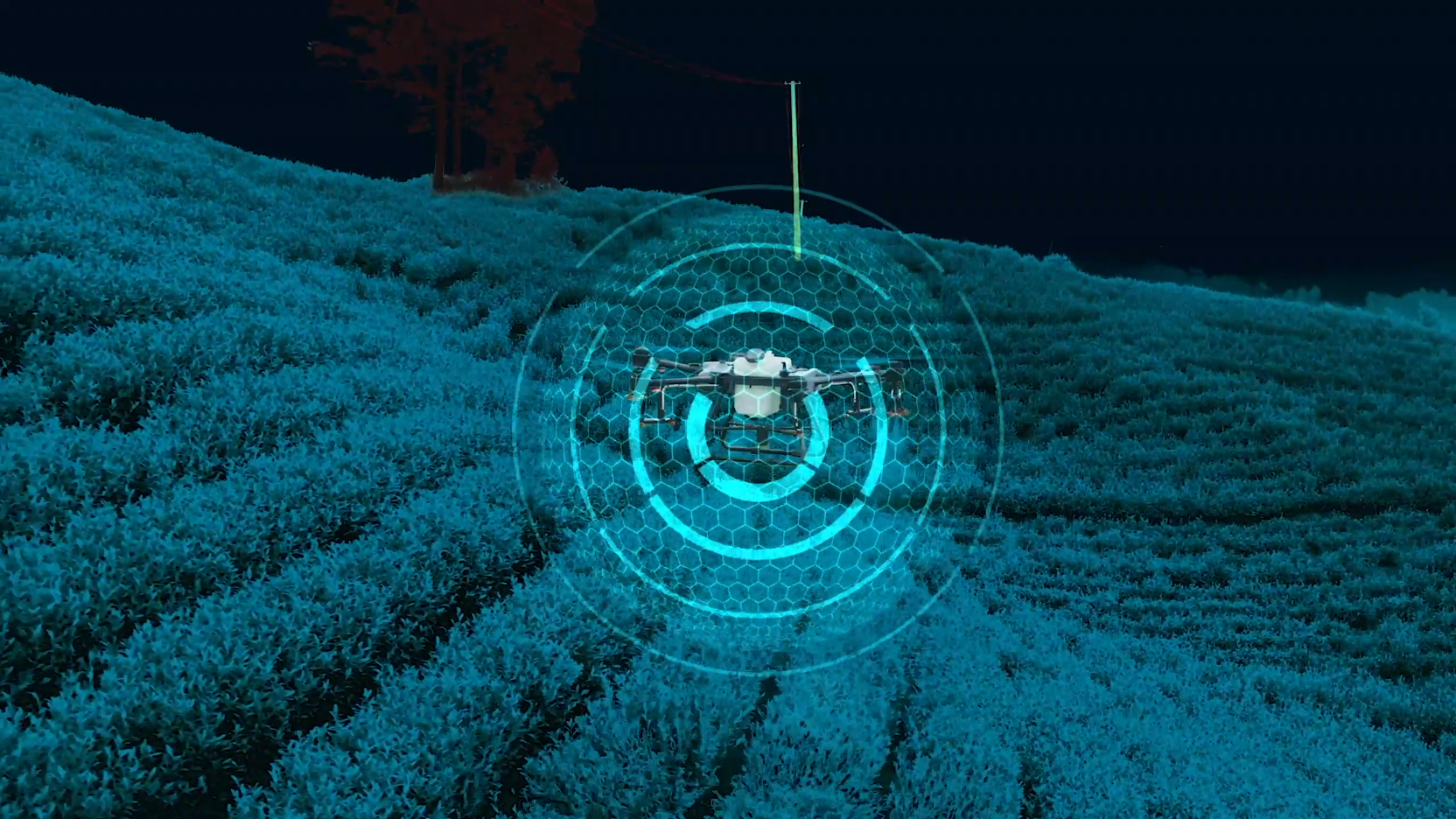

Eliminate Blind Spots with a Spherical Radar System

The spherical radar system perceives obstacles and surroundings in all environments, weather conditions, and viewing angles, regardless of dust and light interference. Automatic obstacle avoidance and adaptive flight functions help ensure safety during operation.

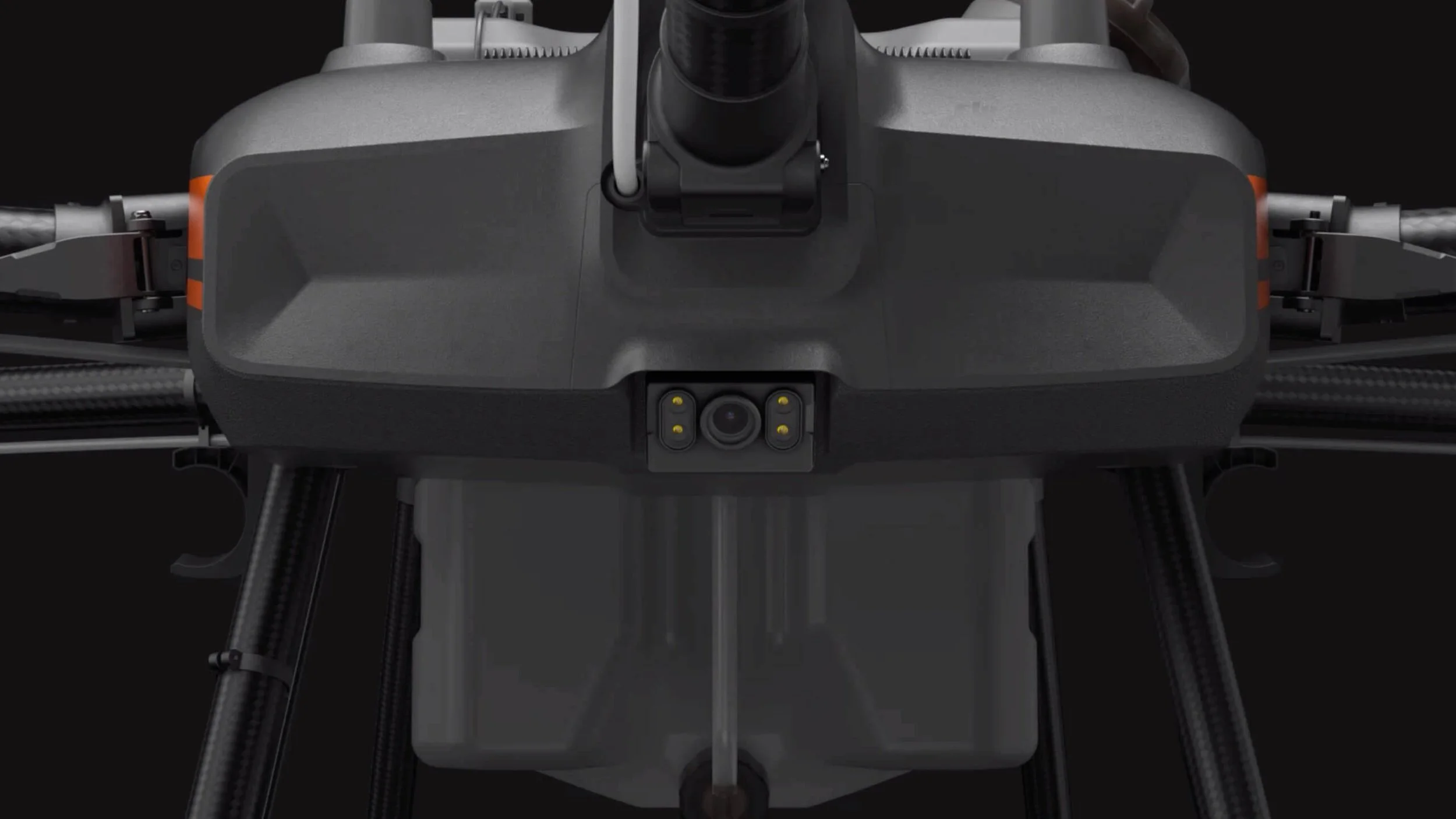

Dual FPV Cameras for Improved Awareness

Equipped with dual FPV cameras, the Agras T30 provides clear front and rear views and lets you check flight status without needing to turn the aircraft mid-flight. And a bright searchlight doubles the aircraft's night vision capabilities, creating more nighttime operation possibilities.

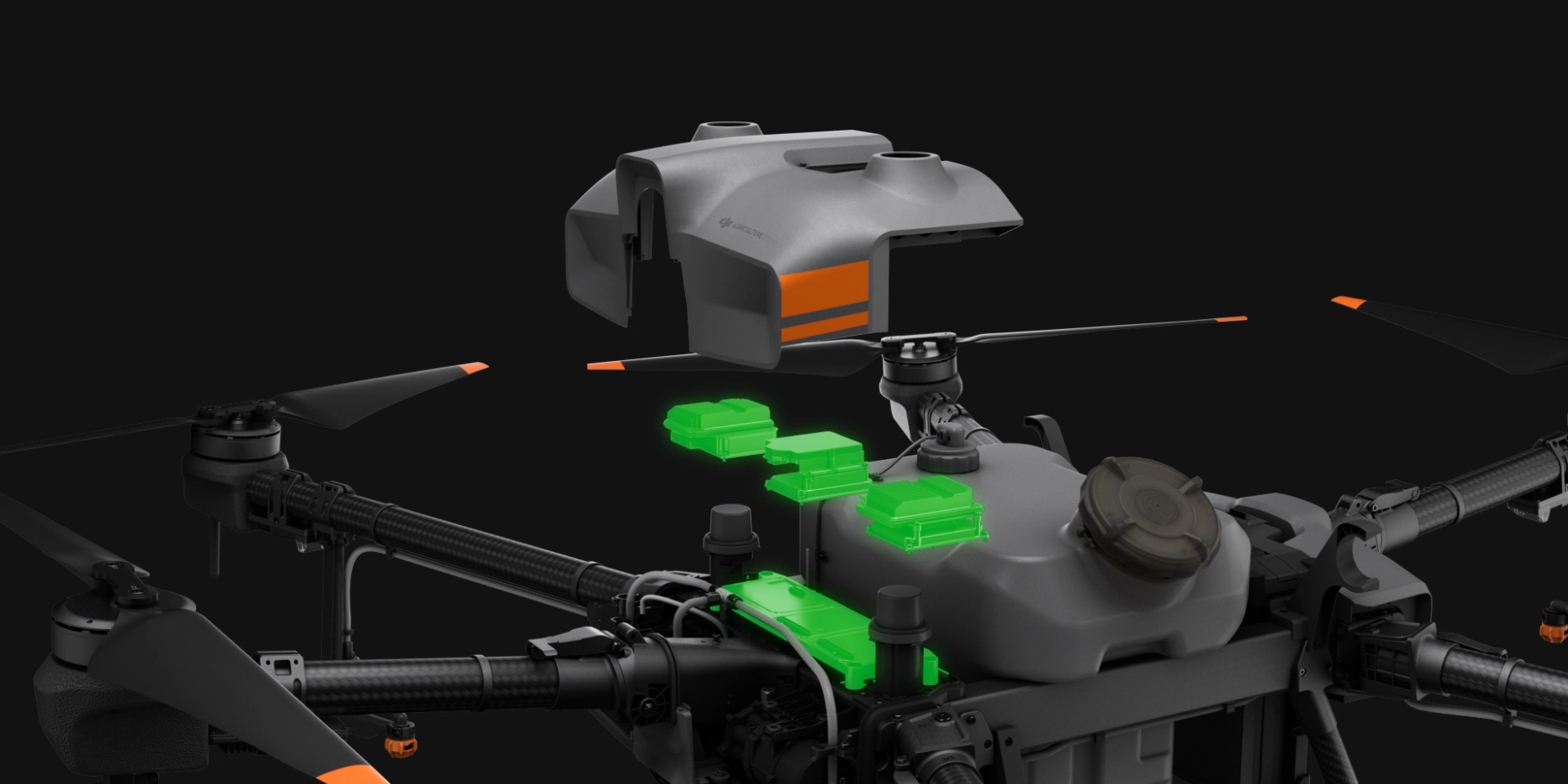

Designed for Long Term Service

The Agras T30 control module has a fully enclosed structure for added durability. All critical components have three layers of protection and are IP67 rated. Ideal for long term use of pesticides and fertilizers, and to resist dust and corrosion.

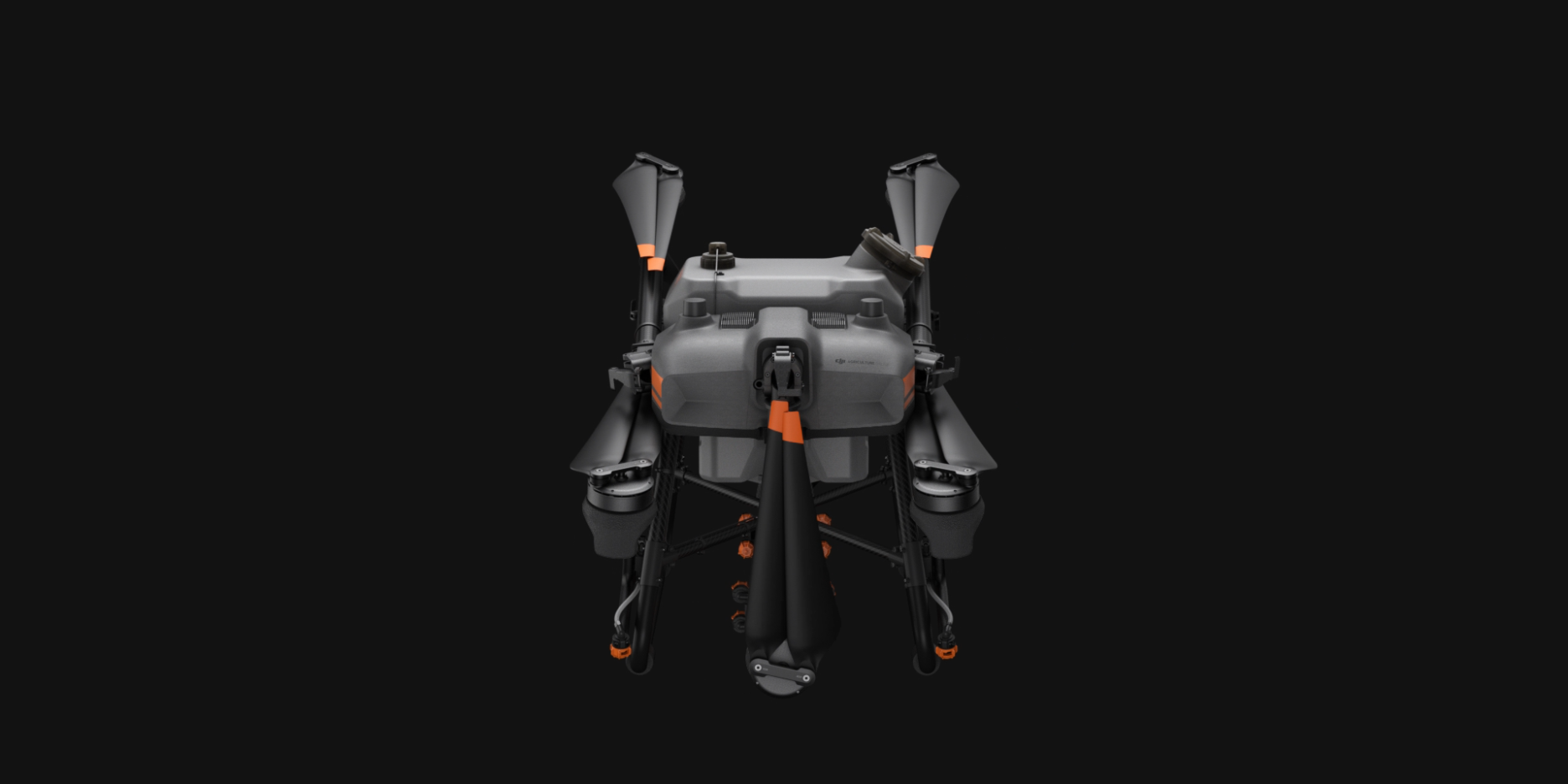

Flexible folding for convenient transportation

The Agras T30 can be folded by 80%, making it easier to transport. This folding mechanism uses quick-snap locking, redundancies, and an in-app alert to help ensure safe operation.

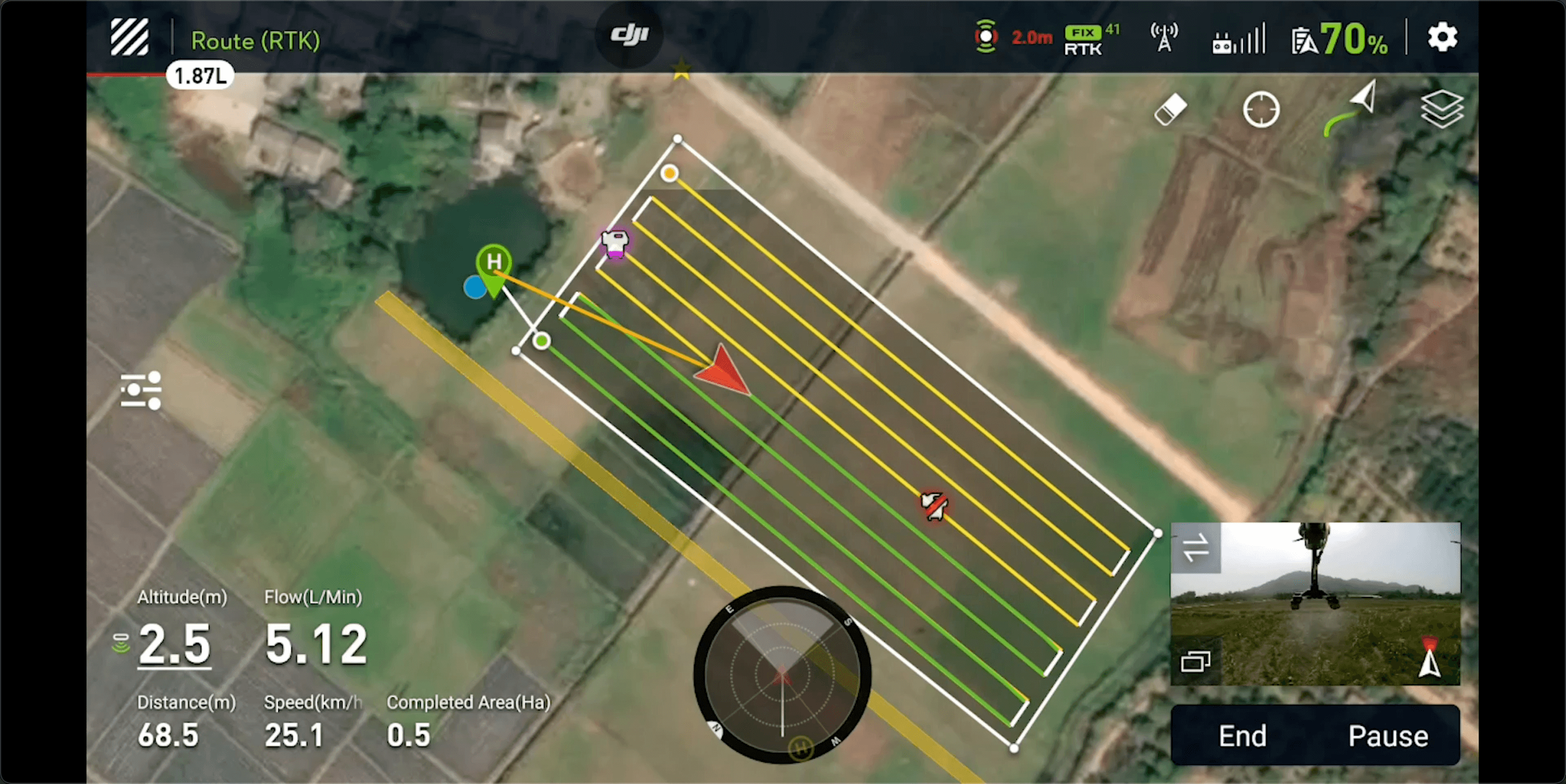

Autonomous Operation with Optimal Route Planning

The new intelligent route mode independently plans the best route for each operation. A gauge indicates the remaining liquid payload amount and estimated time until refill in real-time, letting operators strike the perfect balance between payload and battery life. The aircraft also supports automatic edge sweeping for extensive spray coverage and easier aerial operation.

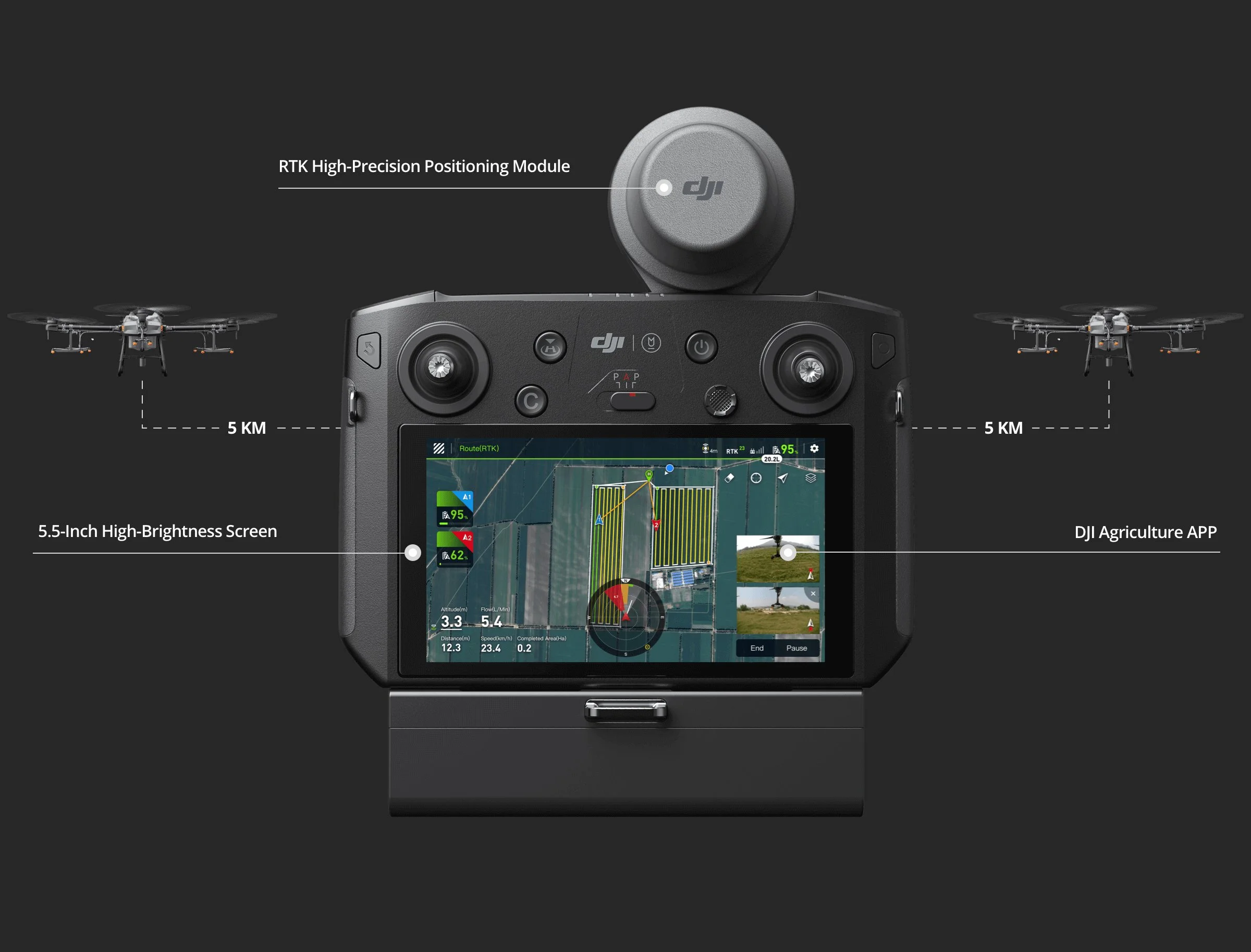

Ultrabright Screen Ultimate Control

An updated remote controller supports stable image transmission from up to 5 km away, 67% more than the previous generation. [3] A bright 5.5-inch screen delivers clear visuals , even in harsh lighting conditions. For increased productivity, one remote controller can operate multiple drones at once. The standard RTK high-precision positioning module implements centimeter-level operation planning. Additional enhancements include stronger signaling, anti-interference, and operational stability. The new DJI Agriculture app provides a smooth user experience and more intuitive operation.

Two Batteries + Charger for Continuous Operation

1,000 cycles for 4,942 acres

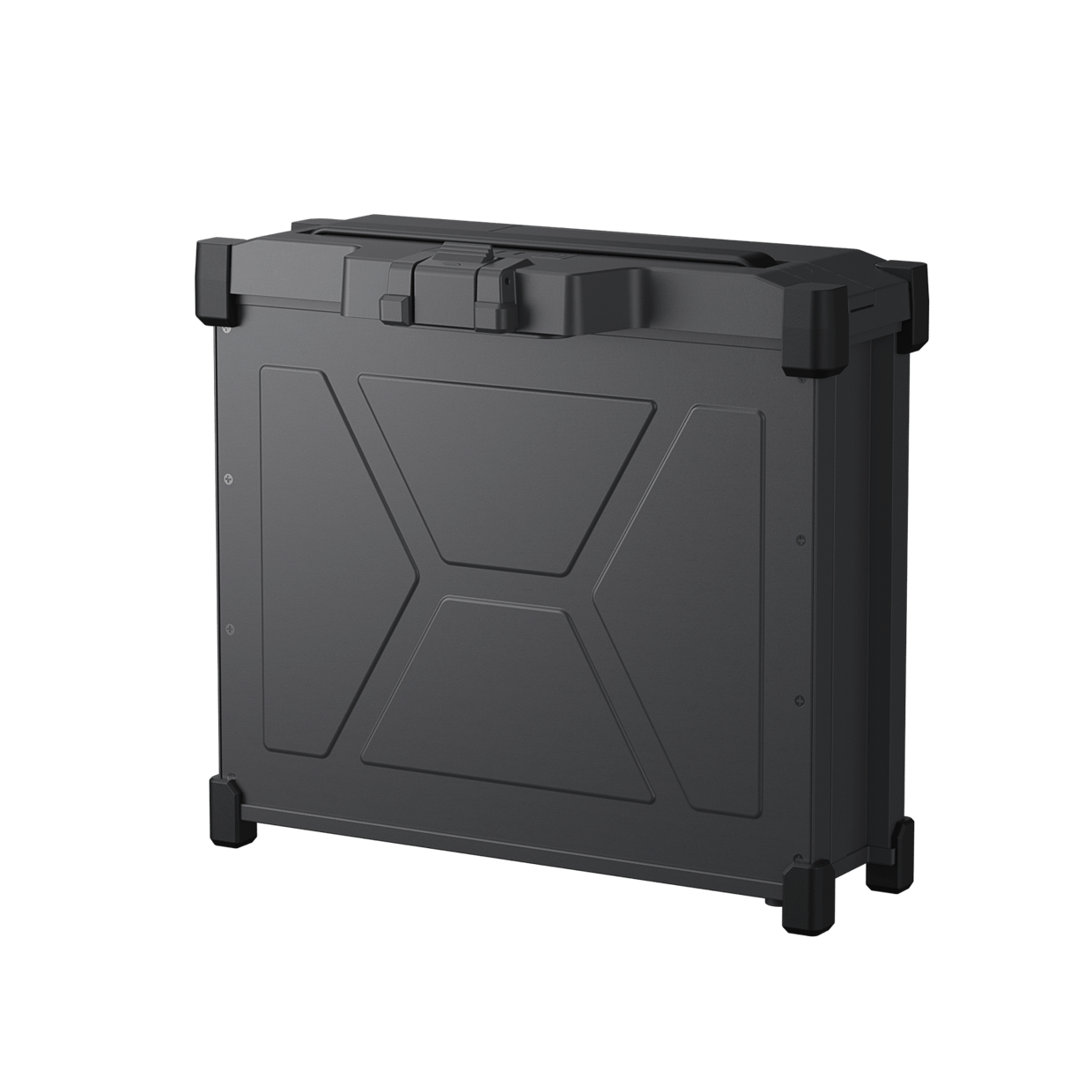

With fewer supporting components needed, the Agras T30 is easier to transport. A newly designed intelligent battery is covered by warranty for 1,000 charges and 4,942 acres of flight; this ultra-long service life significantly reduces operating costs. The charging station and smart charging hub can fully charge a battery in 10 minutes, allowing for continuous operation with just two batteries and one charger. The standard safety box helps ensure battery safety and easy equipment storage.

DJI Agras T30 Intelligent Flight Battery

The 29,000mAh Intelligent Flight Battery has a product guarantee of 1,000 cycles. [4]

It supports instant charging without the need for cooldown, circuit board-level potting protection, and resistance from water and corrosion.

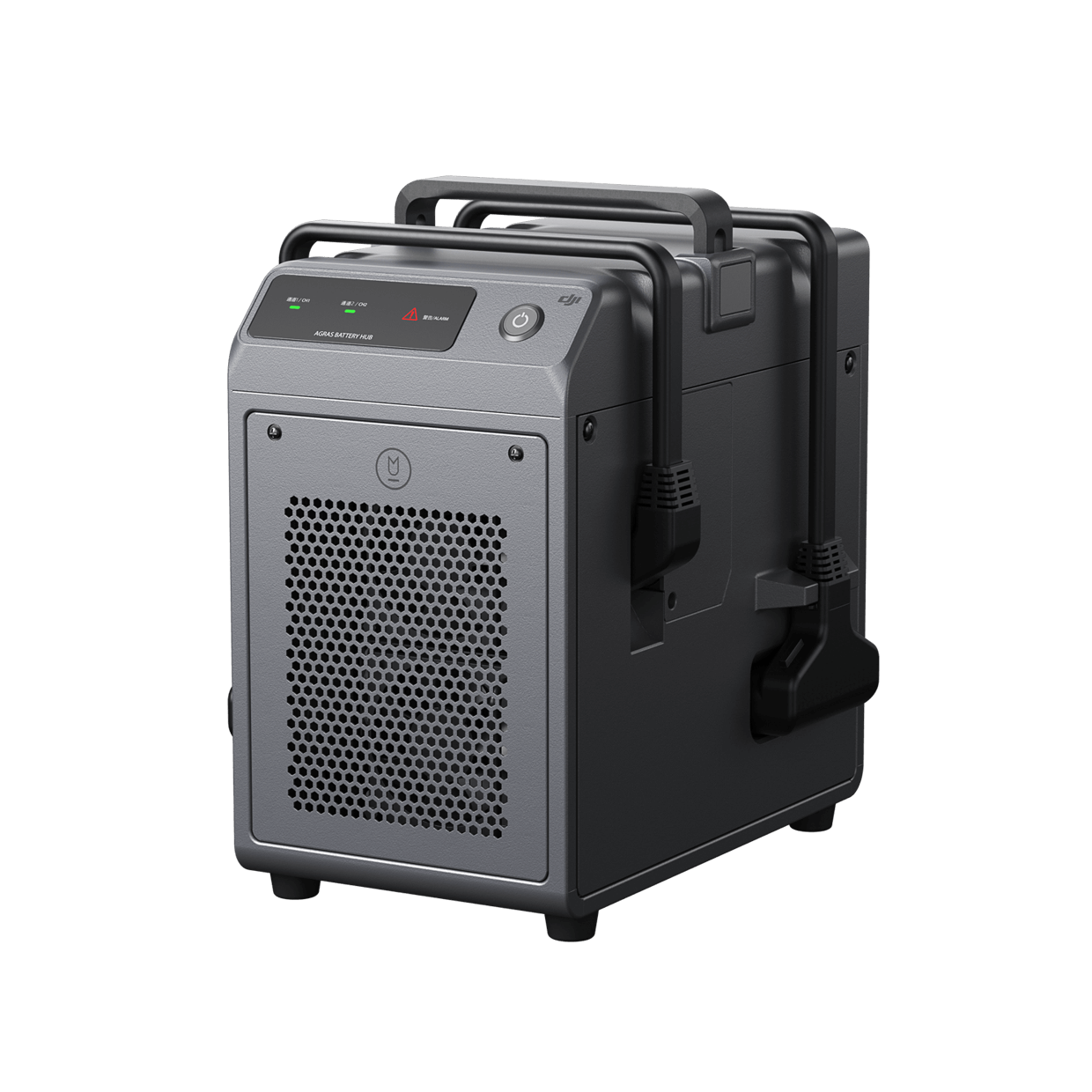

DJI Agras T30 Intelligent Battery Station

The T30 Battery Station provides 7,200 watts of charging power and can charge a battery in 10 minutes. It also has a backup power system and supports dual-channel alternated charging with power adaptation and safer operation.

T30 Spreading System 3.0 Large-capacity, Washable, and Corrosion-Resistant

This updated spreading system has a capacity of up to 40L [5] a spreading width of up to 7 meters, [6] and an hourly spreading capacity of 1 ton. [7] This system also supports real-time weight monitoring and has an anti-rotation sensor, allowing more accurate refill alerts. The T30's overall water-resistance rating of IP67 rating makes it washable and corrosion-resistant ideal for spraying of fertilizers, seeds, and feed. When used with digital agriculture solutions, the Agras T30 implements variable spreading, reducing fertilizer use while increasing yield.

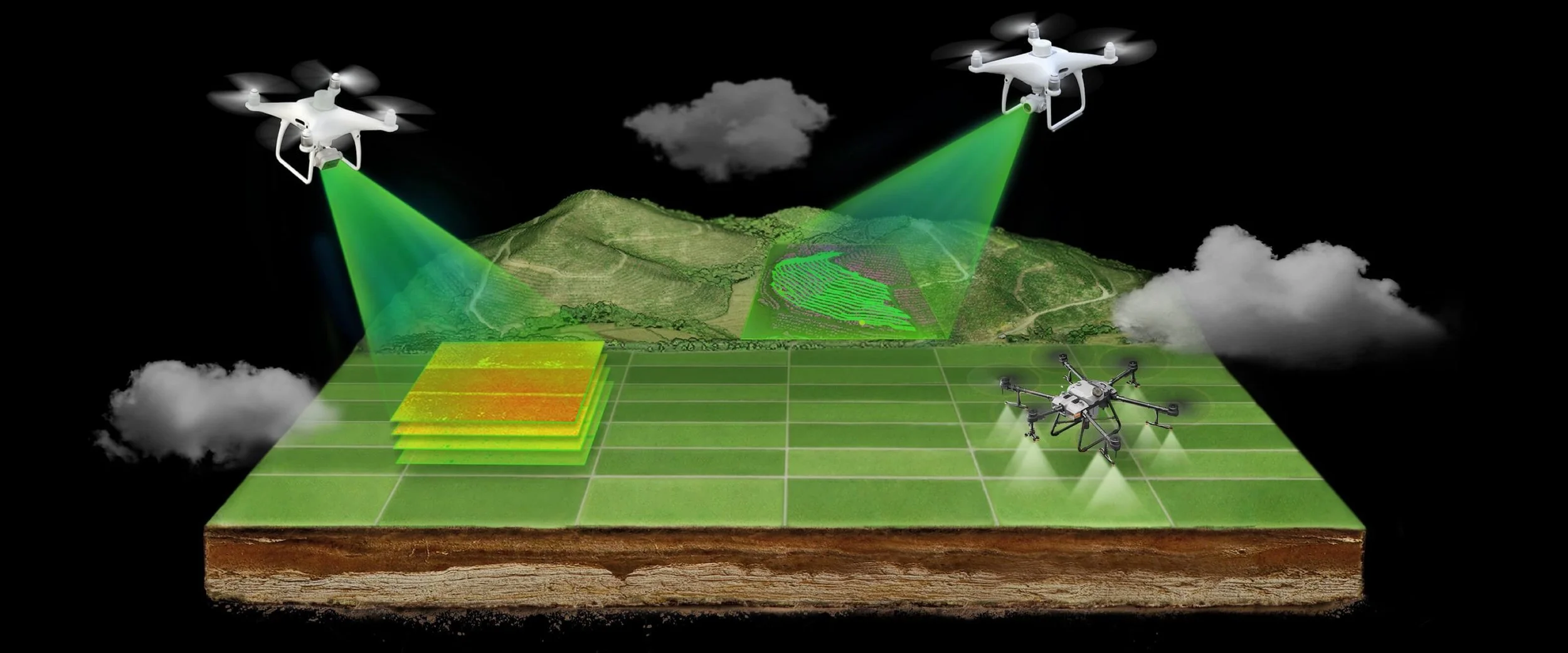

Cloud-Based 3D Farming: Digital Agriculture is Here

With the Smart Agriculture Cloud Platform, users can perform cloud-based mapping of orchard and farmland scenarios to generate smart flightpaths. This platform is equipped with an AI recognition system to patrol fields, identify growth, monitor disease or pests, and monitor agricultural conditions efficiently. Pairing this system with the DJI P4 Multispectral allows users to apply solutions based on specific variables according to an automatically-generated farmland prescription map.

1. When compared to the DJI Agras T20.

2. This data was measured with the DJI Agras T30 and may vary based on operating environment and parameters. Flight parameters for this test: Dosage of 1 L/667 m², spraying width of 9 m, flight speed of 6.5 m/s, and height of 2.5 m.

3. Refers to the RM500 remote control.

4. The battery provides 1,000 in-warranty cycles or a 12-month warranty, whichever comes first.

5. T spreading system 3.0 has a 40L volume with 35kg max load, depends on specific dentity.

6. Spreading width depends on the actual scenario.

7. The data is measured with urea and may vary by operating environment and parameters. Spreading parameters for this test: Dosage of 20 kg/667 m², flight speed of 4.5 m/s, and row spacing of 6m.

*The protection rating is not permanent and may reduce over time after long-term use due to aging and wear.

The protection ratings of the aircraft mentioned above may decrease in the following scenarios: ① The sealed area is deformed as a result of a collision; ② The sealed area of the shell is cracked or damaged; ③ The interface protective cover or waterproof rubber stopper is not installed in place or becomes loose.
