DJI AGRAS T70 P
Efficiency Experts.

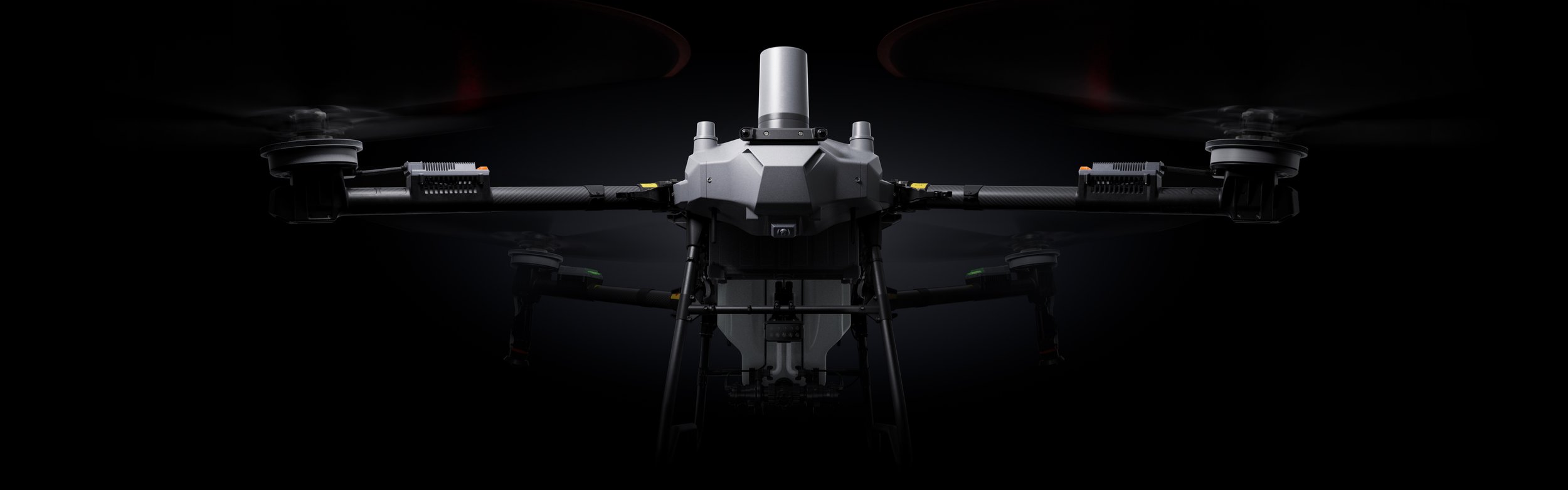

The DJI Agras T70P agricultural drone is newly upgraded to support spraying, spreading, and lifting in various operational scenarios, with a maximum payload capacity of 70 kg[1]. It delivers enhanced efficiency while featuring Safety System 3.0[2] and advanced algorithms for comprehensive, round-the-clock[3] protection.
Heavy Payload
70 kg Payload
70 L Spray Tank
100 L Spreading Tank
Intelligent Safety
Safety System 3.0
Millimetre-Wave Radar
Tri-Vision Obstacle Sensing
High Flow Rate
40 L/min Flow Rate
Dual Atomization System
4-Sprinkler Kit (Optional)
All-Scenario Operation
Spraying • Spreading • Lifting
65 kg Lifting Capacity
Terrain Following
High-Speed Operation
20 m/s Max Speed
High-Efficiency Field Coverage
Optimised Mission Performance
Reliable Connectivity
O4 Transmission
Up to 2 km Operation Radius
Optional DJI Relay Support
Lifting System
Your Transport Assistance
The T70P transforms into a transport solution with a lifting capacity of 65 kg[5] it carries more and travels further. Features like Auto Balance Control, weight detection, and automatic navigation to loading and unloading points make it adaptable to various agricultural transport scenarios.
Saplings
Solar Panels
Fruits
Building Material
Spraying System
Efficient Operation, Outstanding Performance.
The T70P comes equipped with a 70 L tank and dual atomization centrifugal sprinklers, offering high flow rates for faster flight speeds and greater operational efficiency in field applications. Orchard users can choose an optional mist sprinkler set, which upgrades both flow rate and atomization effects, ensuring thorough penetration even through dense canopies and tall plants.
Field Operations
Orchard Operations
Water-Cooled Mist Sprinklers (Optional)
Fine droplets as small as 50 μm [23]penetrate canopies effectively, ensuring thorough leaf coverage. The newly designed liquid flow path rapidly dissipates heat generated by dual centrifugal motors, enhancing durability and extending the system's lifespan.
Magnetic Drive Impeller Pumps
Corrosion-resistant, stable, and reliable, an optimized impeller structure and increased chamber volume meet the high flow demands of orchard scenarios.
Dual Atomization Centrifugal Sprinklers
New flow path design, dual spinklers support a maximum flow rate of 30 L/min, Particle size range of 50-500 μm[8], suitable for most operational scenarios.
Solenoid Valves
Precision starting and stopping eliminates leaking.
Dual-Channel Electromagnetic Flow Meter
Real-time precise flow detection and dynamic control ensures high-precision operations. It avoids direct contact with the liquid, preventing corrosion and enhancing durability.
Spreading System
Outstanding Efficiency and Performance
Brand-New Screw Feeder
Spreading accuracy doubled, flow rate increased by 270%[7], and granulars applicability further enhanced.
Centrifugal Spreader Disc
Ensures uniform spreading across the entire flow range with outstanding results. Features a stainless steel cap for durability and strength.
Extra-Large Feeder
Suitable for granulars such as fertilizers, wheat seeds, granular fungicides, feed, etc.
Recommended application rate: 75-750 kg per hectare.
Recommended particle size: 0.5-10 mm
Large Feeder (Optional)
Suitable for granulars such as rice seeds, cover crop seeds, etc.
Recommended application rate: 75-270 kg per hectare.
Recommended particle size: 4-10 mm
Medium Feeder
Suitable for granulars such as rice seeds.
Recommended application rate: 22.5-120 kg per hectare.
Recommended particle size: 4-6 mm
High-Precision Weighing Sensor
Provides real-time, accurate granulars quantity display for precise usage and refilling, effectively minimizing waste. It also supports automatic flow calibration and cloud-based storage of operation templates, ensuring precise and convenient spreading.
Large Loading Gate
Allows for easy and convenient bulk loading.
Medium-Small Feeder (Optional)
Suitable for granulars such as aquatic feed and other high-volume, small-particle materials.
Recommended application rate: 22.5–120 kg per hectare.
Recommended particle size: 0.5-2 mm
Small Feeder (Optional)
Suitable for granulars such as rapeseed, granular herbicides, grass seeds, granular insecticides, etc.
Recommended application rate: 3-22.5 kg per hectare.
Recommended particle size: 0.5-4 mm
Safety System
Obstacle Avoidance, AR Enhanced Display
The T70P is equipped with intelligent obstacle avoidance and AR-enhanced display. With Safety System 3.0, its radar and vision systems work together with upgraded algorithms to deliver comprehensive obstacle awareness, enabling smooth navigation and effortless maneuvering through fields.
Night Vision Color FPV Camera
Utilizing virtual gimbal technology, the FPV camera's pitch angle can be freely adjusted. It supports night vision mode, and when combined with night navigation lights, obstacles remain clearly visible even in the dark.
Night Navigation Light
In addition to the existing low beam lights, new front-facing high beams and downward supplemental lighting have been added. The downward lighting automatically activates during landing, ensuring safer nighttime operations.
Tri-Vision System
Two black-and-white fisheye cameras and an FPV camera work in tandem with radar through visual fusion algorithms to enhance Terrain Following and obstacle avoidance capabilities.
Millimeter-Wave Radar
The front radar performs 5,000 vertical airspace scans per second combined with 360° horizontal mechanical rotation scanning, along with a rear radar, offering a more comprehensive detection range.

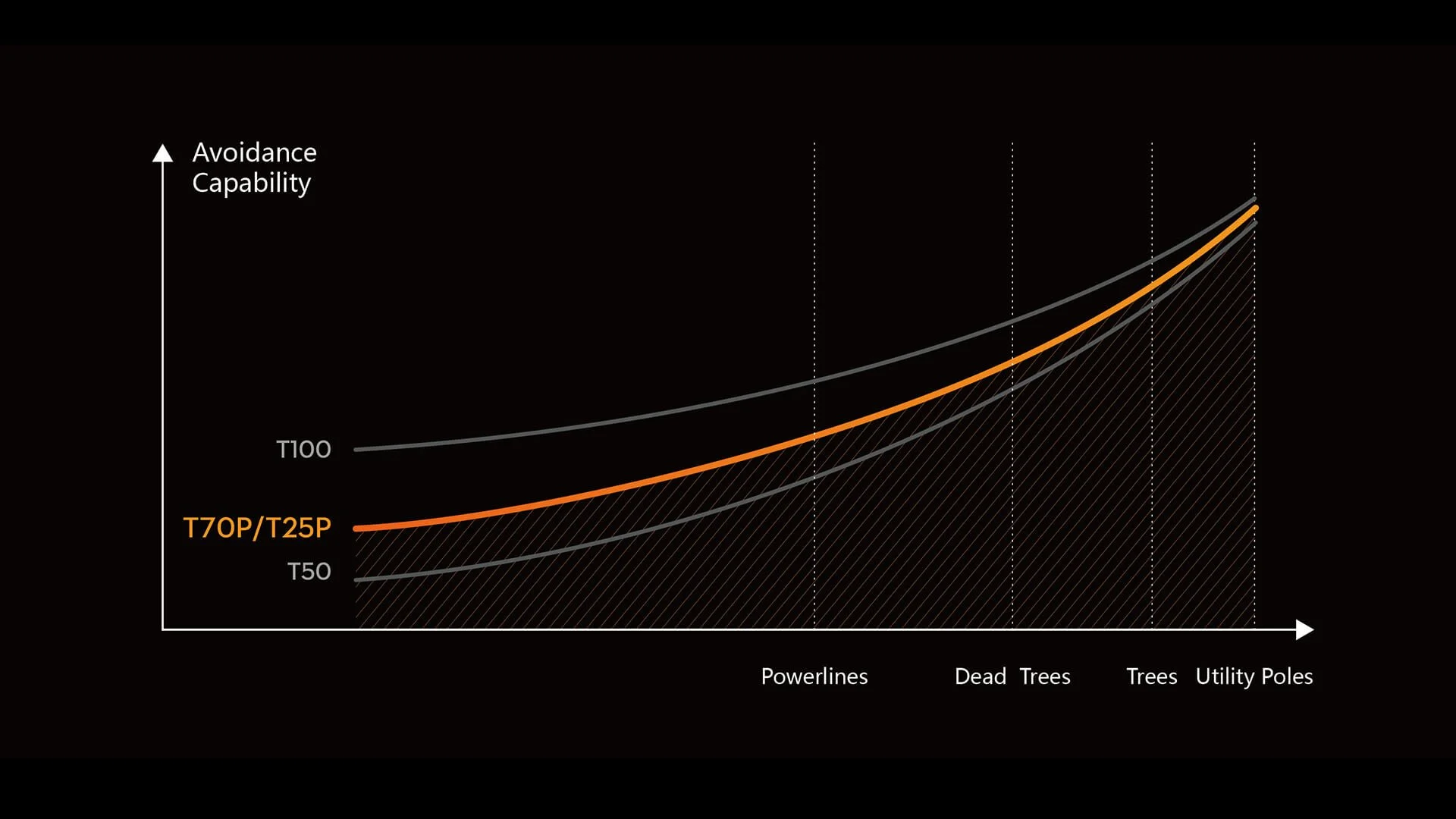

Obstacle Avoidance Capability

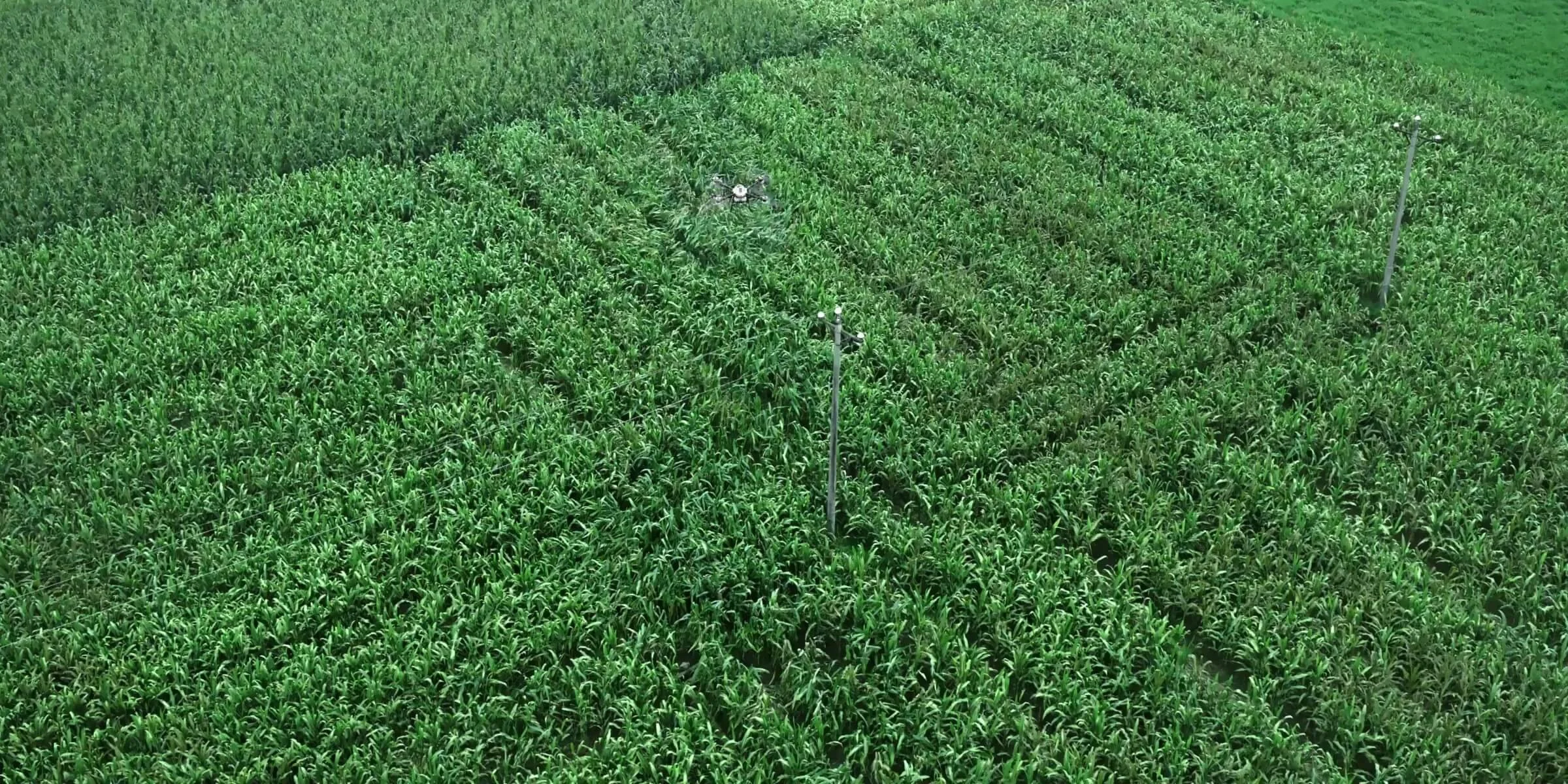

Supports 360° horizontal and upward obstacle avoidance, along with steep slope Terrain Following without aerial mapping. The detection rate for diagonal cables and power lines has been improved[2], ensuring all field obstacles are clearly detected.
Propulsion System
Powerful Performance, Higher Efficiency
The T70P, through further optimization of the power system, effectively reduces energy consumption while maintaining the same operational area and effectiveness.
20m/s
Max Speed
18%
Enhanced Efficiency

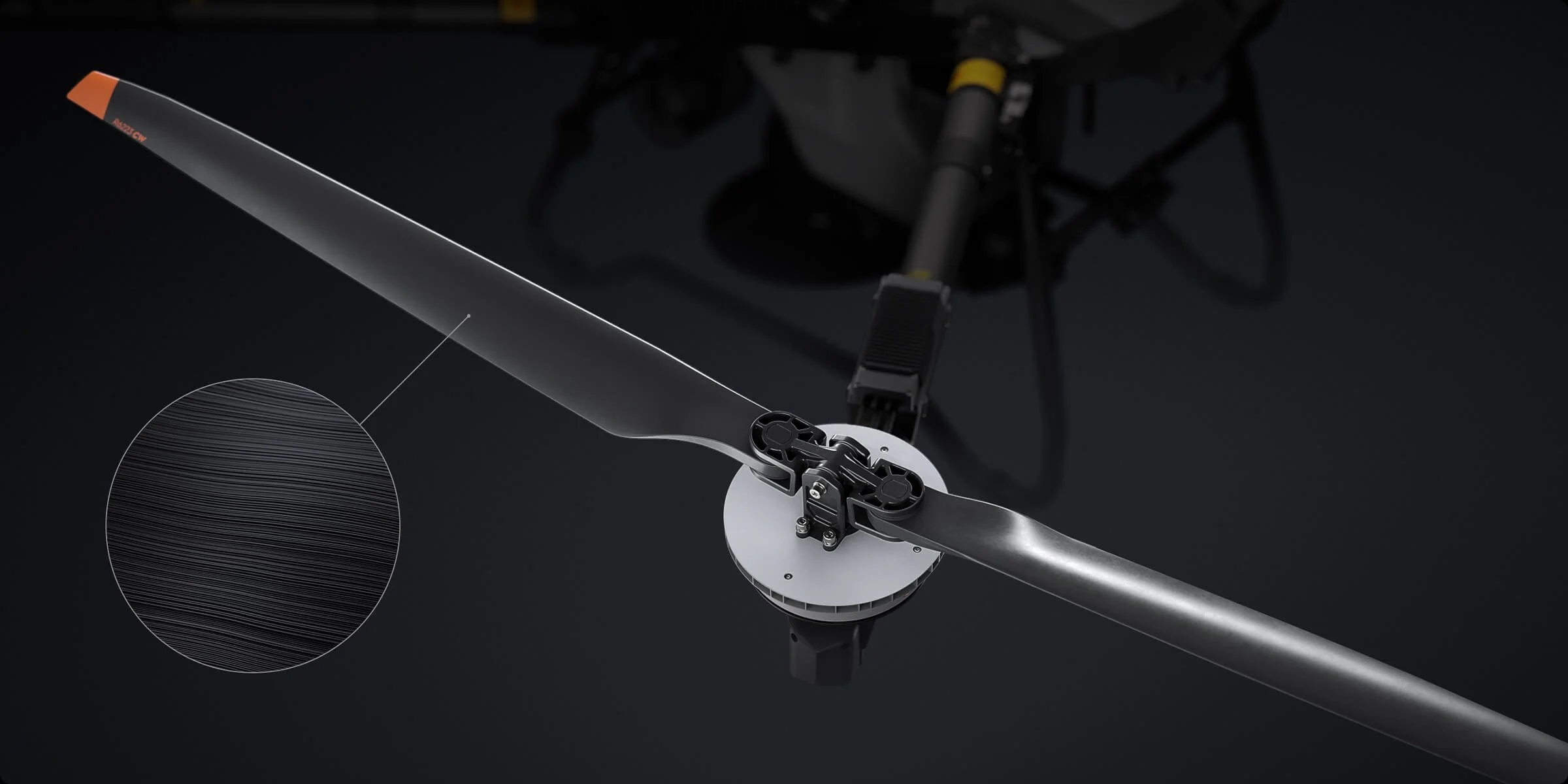

62-Inch Carbon Fiber Propellers
Carbon fiber propellers offer greater rigidity and lighter weight, resisting deformation even at high temperatures. With optimized airfoil and increased diameter, efficiency is improved by 15%[7].

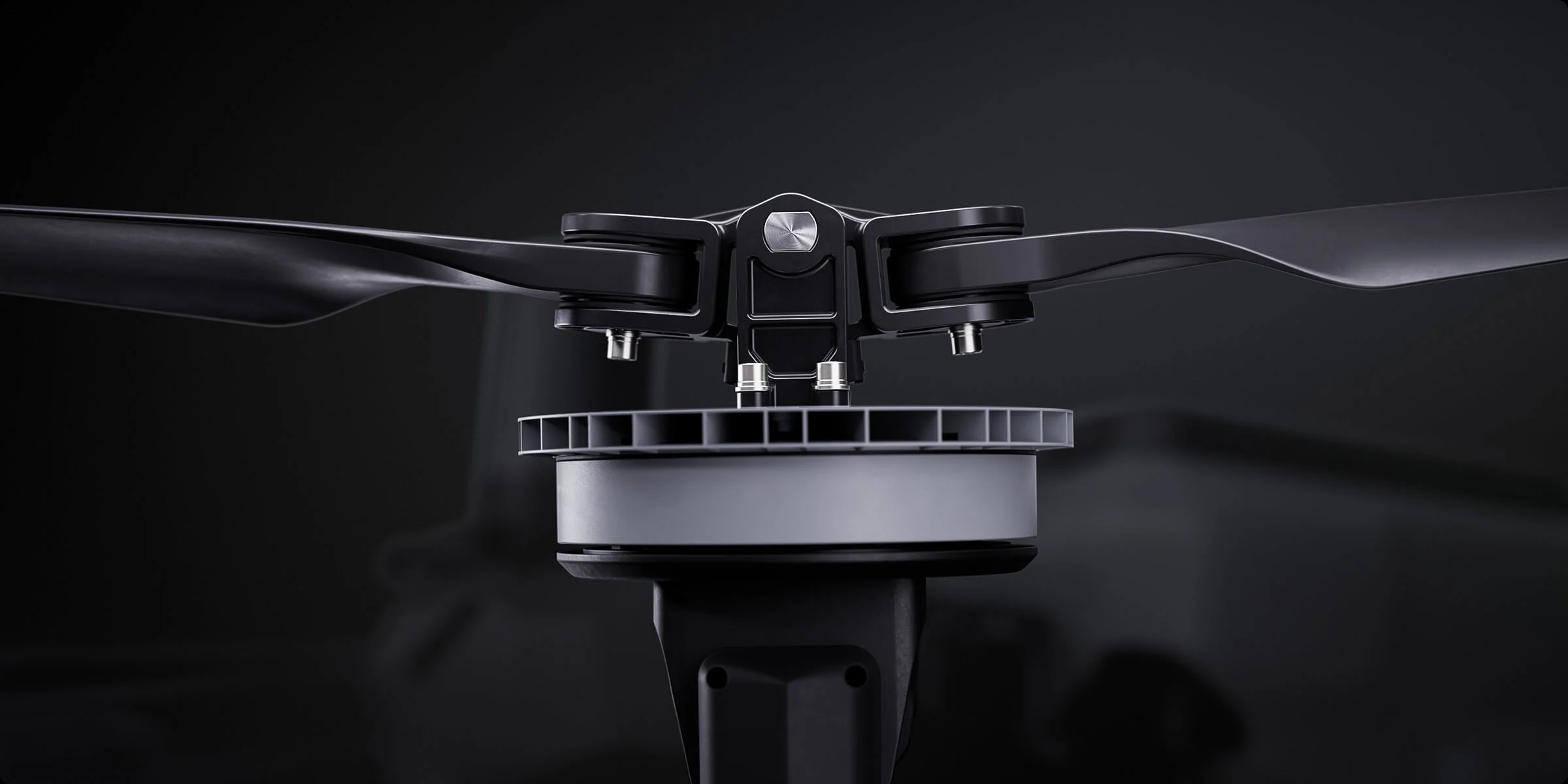

Swing Propellers Clamp
Reduces body vibration by 40%[7], resulting in more stable flight and lower power consumption.

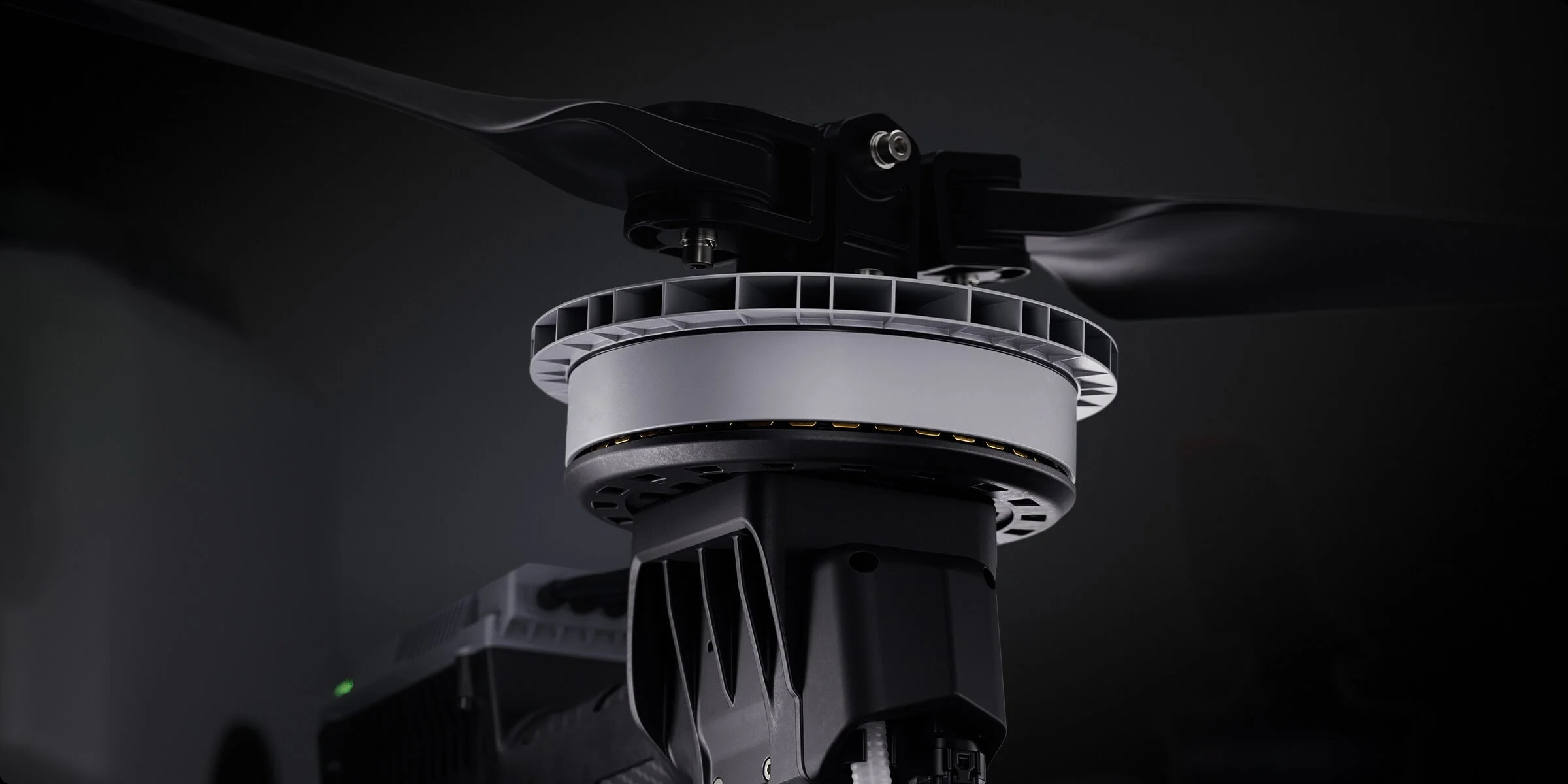

Motor Optimization
With enhancements in motor electromagnetics and craftsmanship, efficiency is improved by 3%
30%
Lower Power, Higher Load
Power System
Ultra-Fast Charging，Energy-Efficient Design

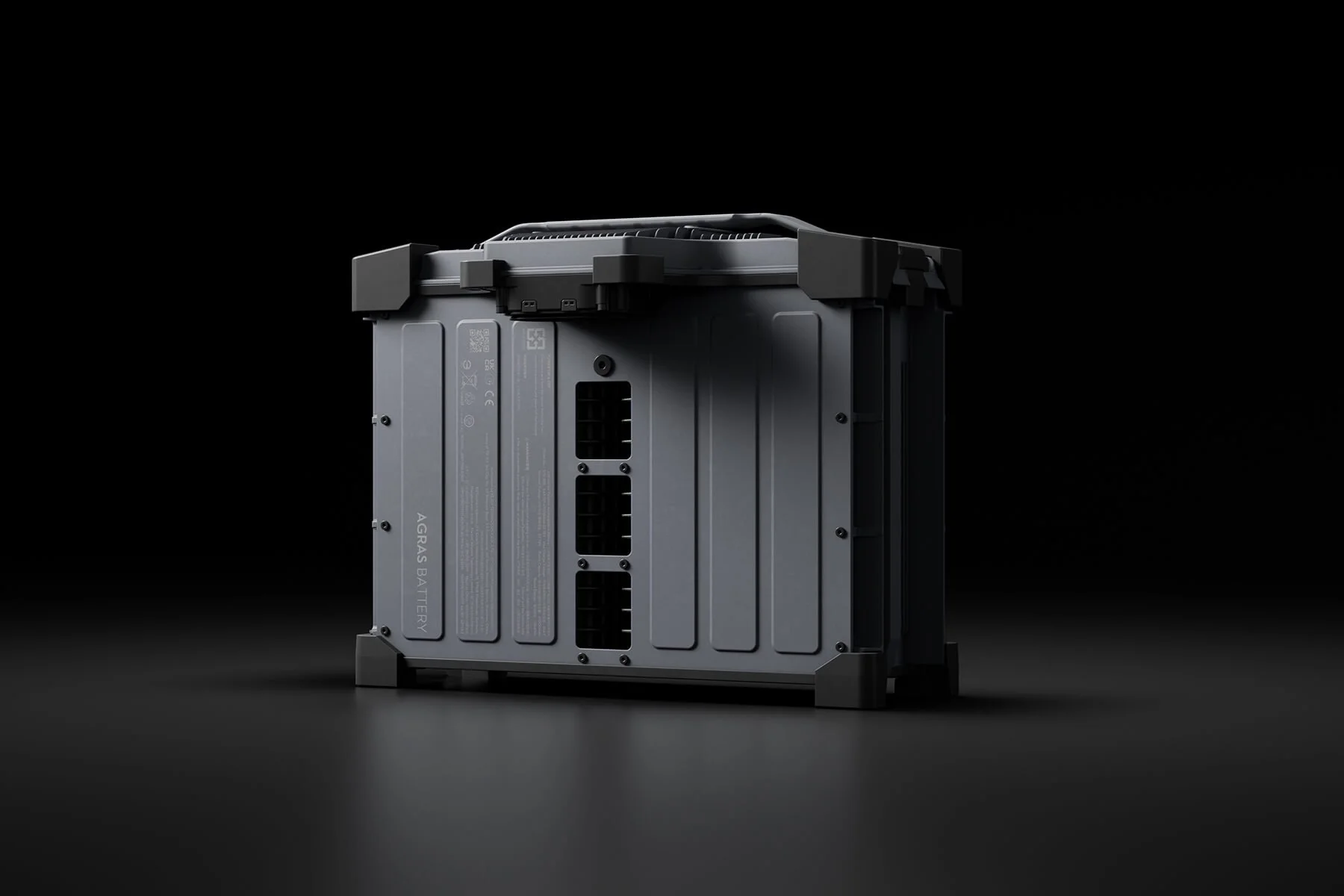

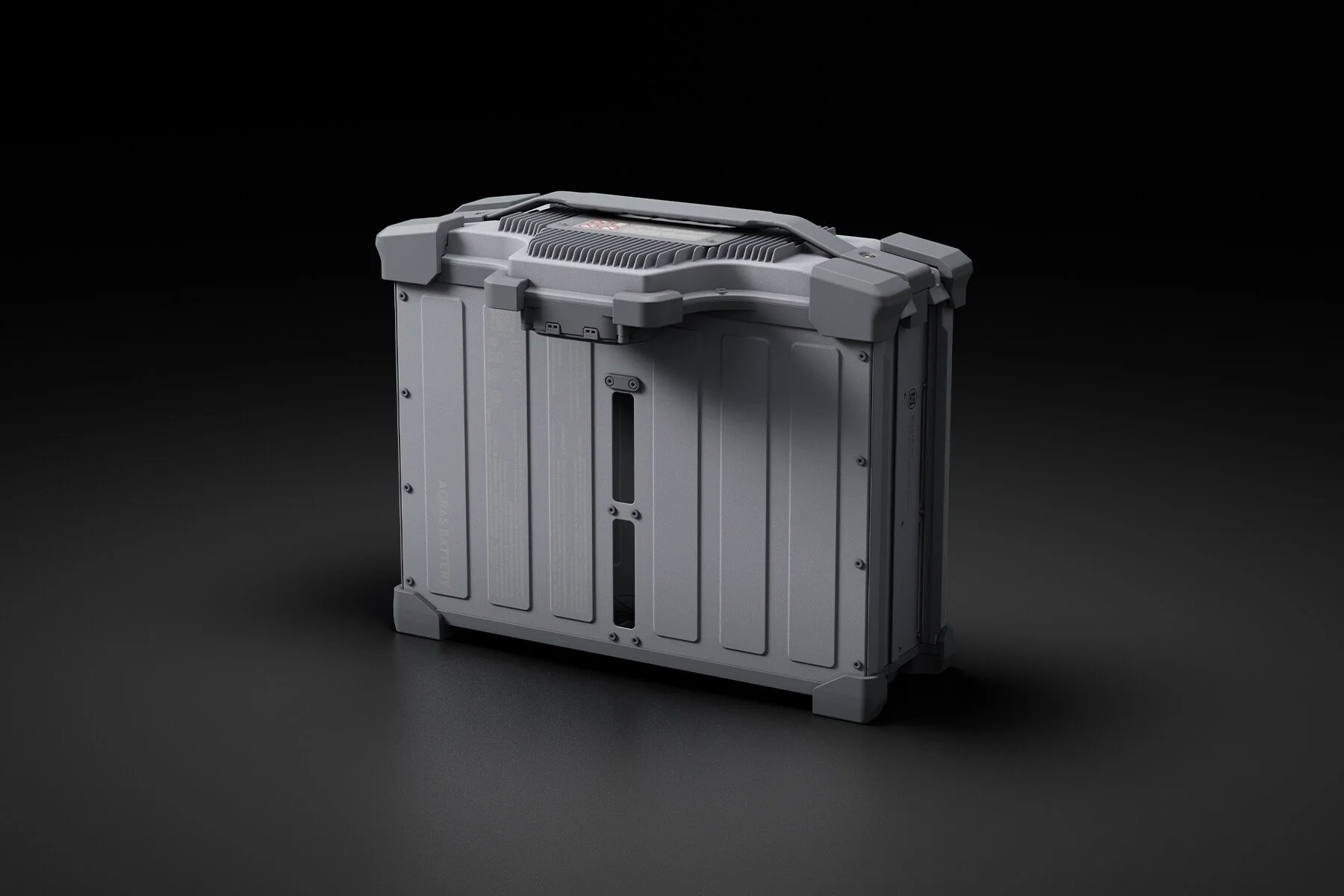

DB1580 Intelligent Flight Battery
30 Ah
1500 charge cycles under warranty[19]
500 A high-power connector
Weight: 11.7 kg
Ergonomic handle

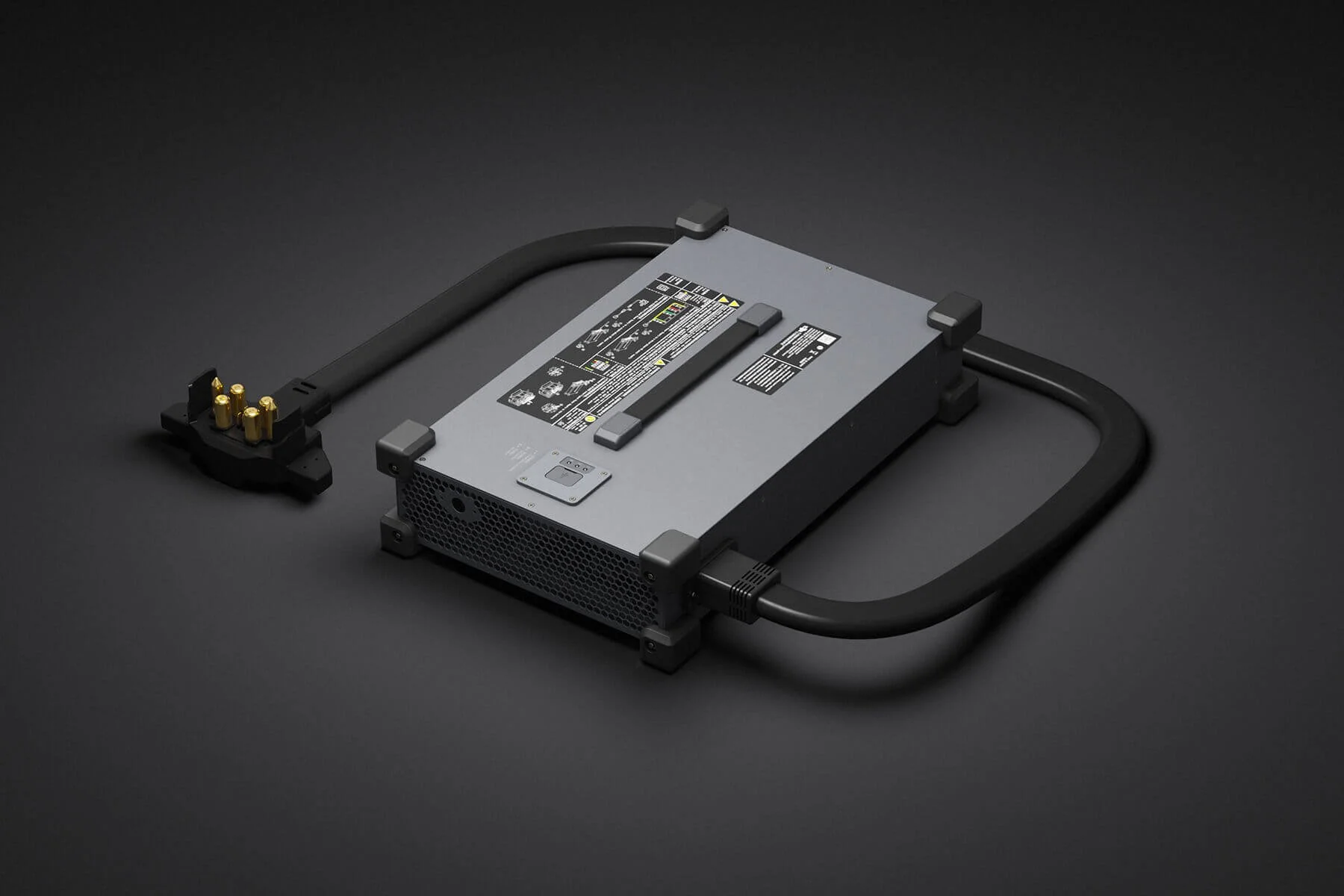

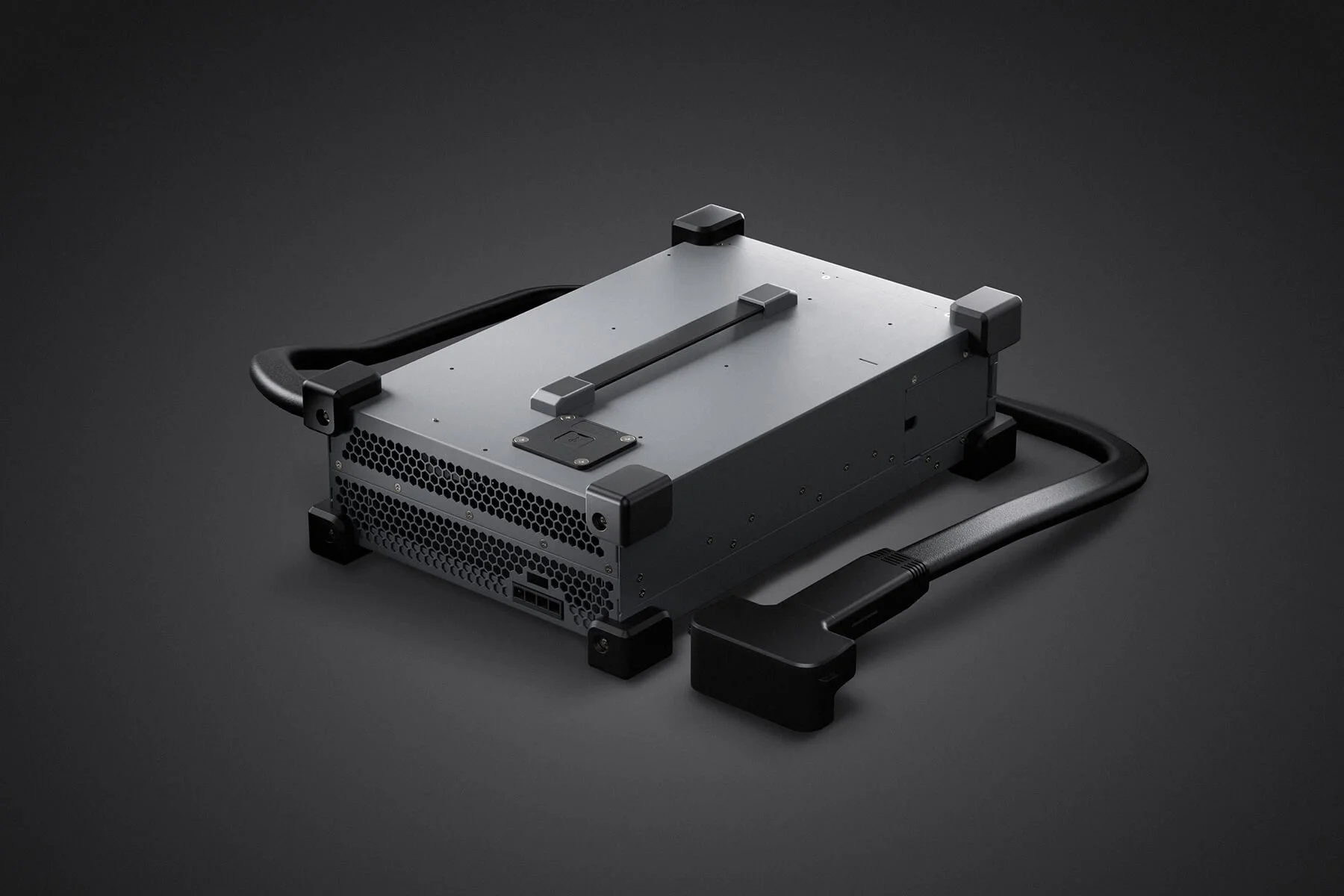

C10000 Intelligent Power Supply
Single-phase power input
9000 W fast charging[20][22]
Adaptive power protection
1.5 m charging cable

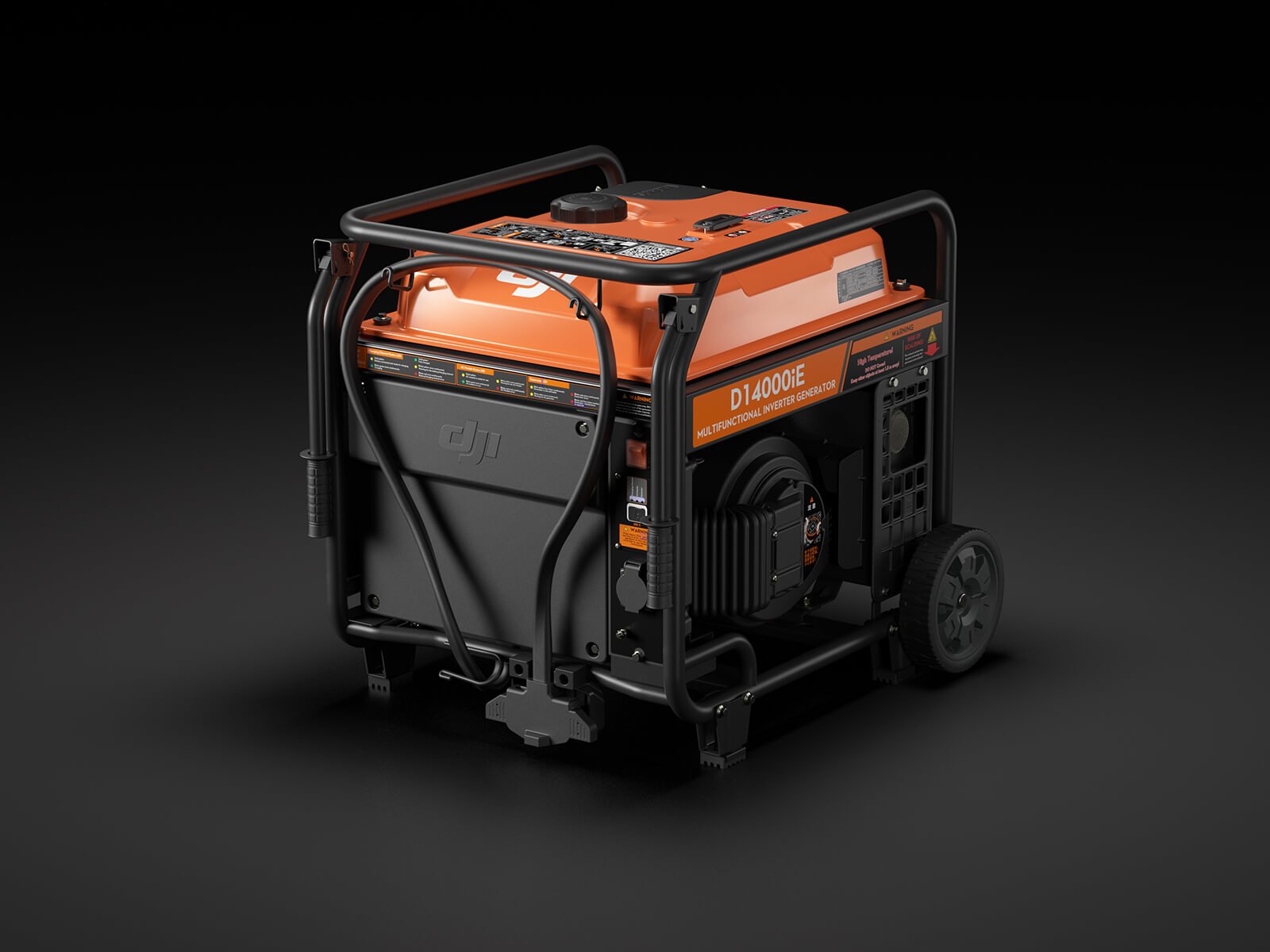

D14000iE Multifunctional Inverter Generator
11500 W fast charging[21]
1500 W AC output
1.8 m charging cable
DB2160 Intelligent Flight Battery
41 Ah
1500 charge cycles under warranty[19]
500 A high-power connector
Weight: 14.7 kg
Ergonomic handle
C12000 Intelligent Power Supply
Three-phase power input
12000 W fast charging[20]
Adaptive power protection
1.8 m charging cable
