DJI Flight Hub 2 and Video Management System Integration

Introduction:

Modern security is shifting from reactive "alarm monitoring" to proactive "exception monitoring". This solution introduces a fully integrated architecture by merging DJI's automated drone systems (DJI Dock 3) with Video Management Systems (VMS). By combining aerial agility, multi-modal AI, and centralized VMS dispatch, we deliver a highly automated workflow that instantly identifies and escalates true security threats.

Background & Pain Points:

Security operations teams currently face critical bottlenecks that drain resources and delay response times:

  • Blind Spots and Real-Time Tracking: Traditional perimeter systems suffer from physical dead zones and struggle to actively track moving targets in real-time.

  • Reactive and Delayed Responses: Once an alarm triggers, a patrol guard is dispatched or police are called. By the time personnel arrive on the scene, it is often too late.

  • Exorbitant Labor Costs: Maintaining a 24/7 physical security guard presence is an enormous operational expense, typically costing a business between $450,000 and $550,000 per year.

System Introduction:

The core system utilizes the DJI Dock 3 and Matrice 4D/TD drone. Through DJI FlightHub 2 and Open API, the drone system integrates seamlessly with market-leading VMS platforms. The following is the system structure:

Key Features:

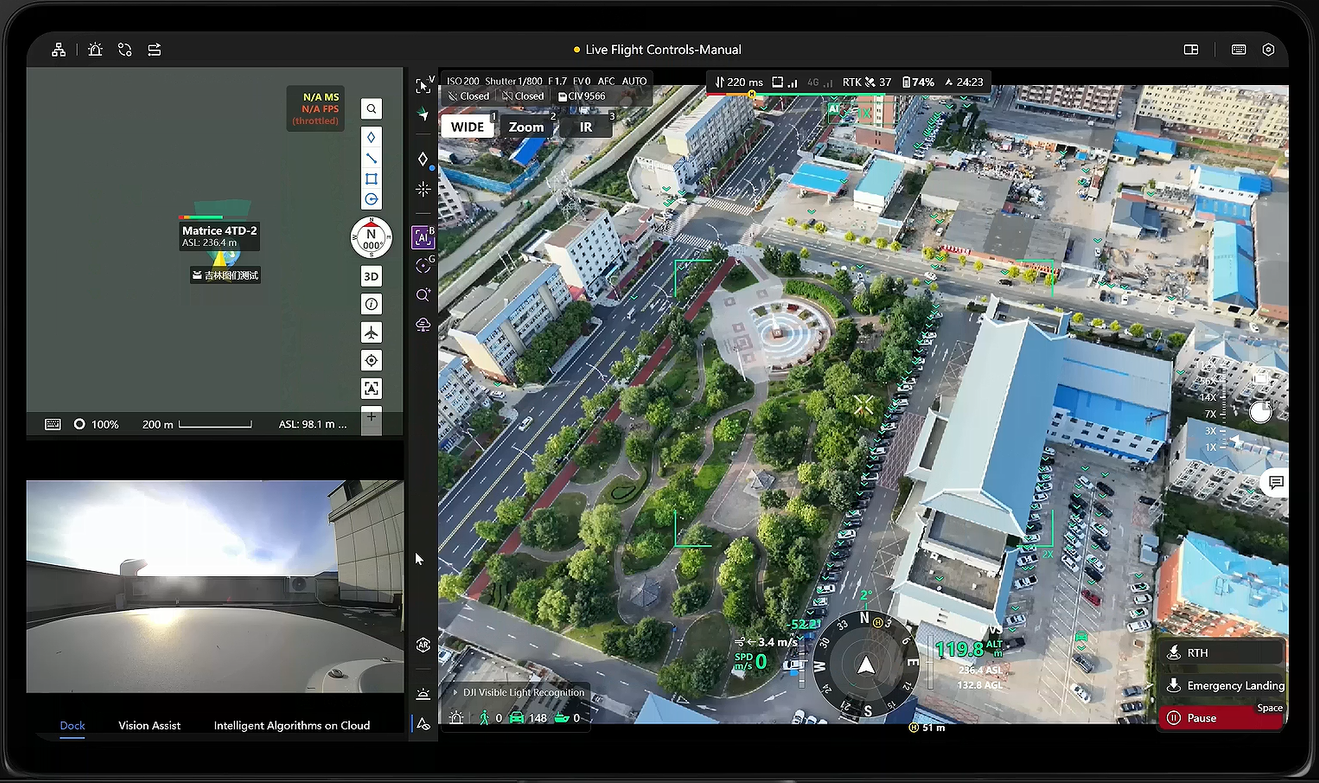

  • 3D Aerial Perspective: Eliminates ground-level physical dead zones by providing a highly mobile, unrestricted overhead perspective.

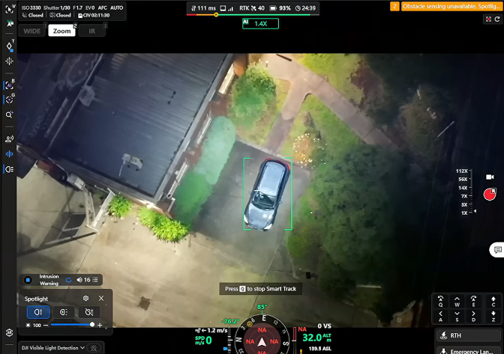

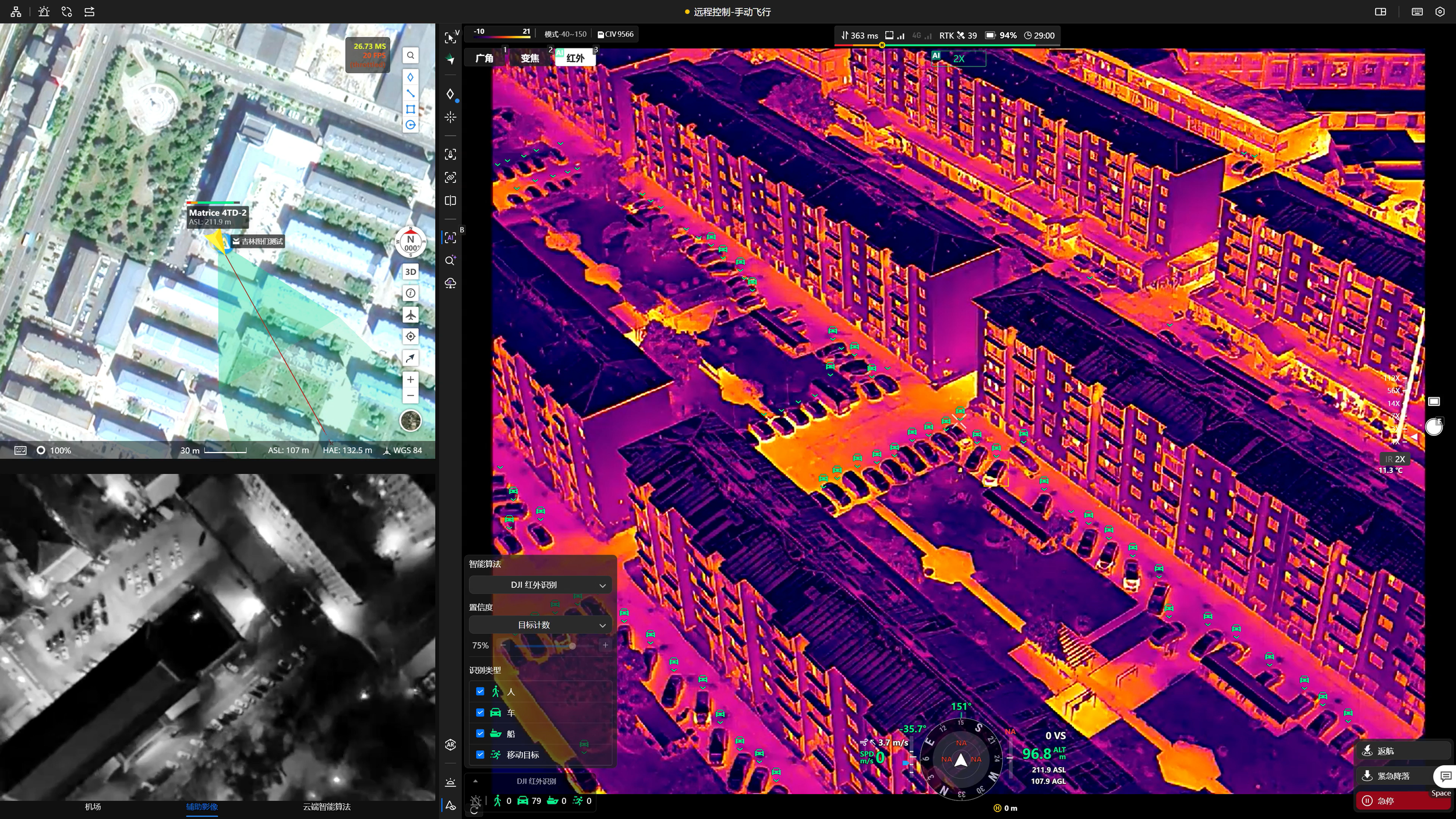

  • Advanced AI Recognition: Powerful edge computing enables the automatic detection and tracking of humans, vehicles, and vessels under visible light view and thermal view.

  • Support Multiple Live-streaming Sharing Protocol: With DJI FH2 platform, the drone’s video feed can be shared across multiple popular livestreaming protocol, such as RTMP, WebRTC, and RTSP.

  • Automated Response & Aerial-Ground Coordination: The system automatically triggers flights based on VMS alarms and facilitates rapid aerial-ground coordination by sharing target coordinate locations.

Application Scenarios:

Blind Spots and real time tracking:

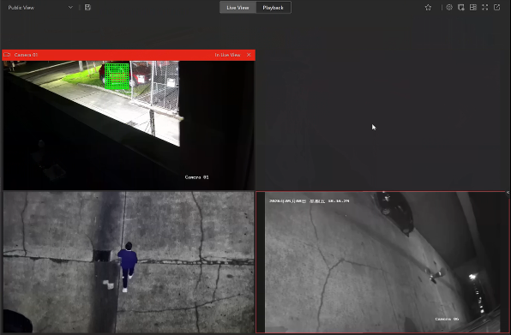

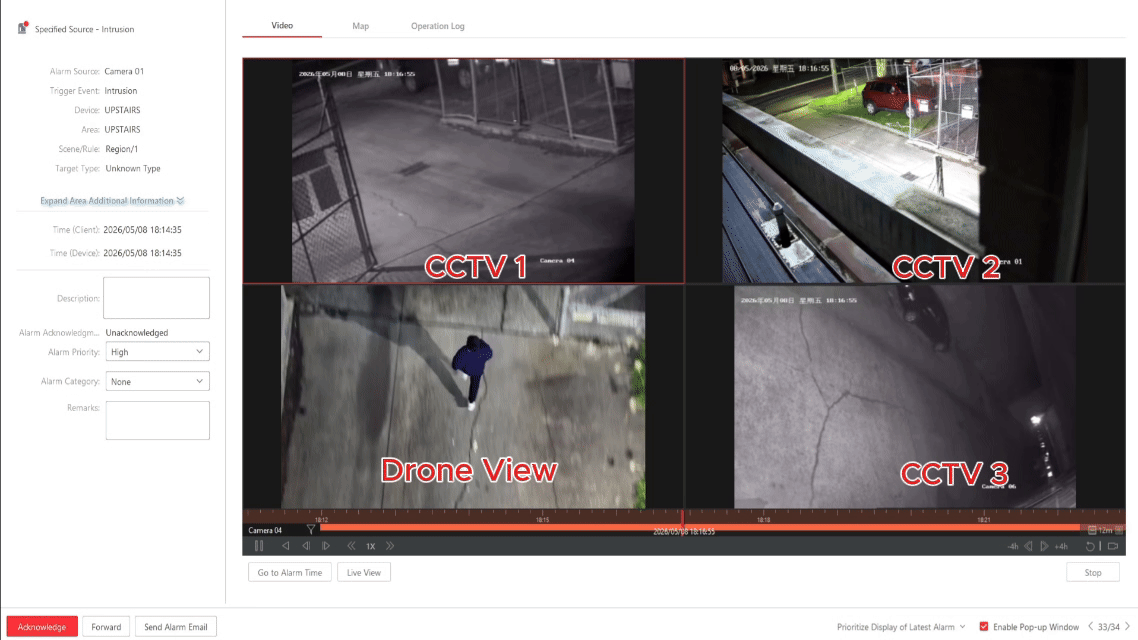

  • Drone Video Feed Integration and Post-Search in NVR: The drone functions as the most agile "camera" on your network. Live visual and thermal feeds stream directly into the VMS alongside fixed CCTV cameras, while all flight footage is routed to the Network Video Recorder (NVR) to easily conduct post-incident investigations.

Fast Responses:

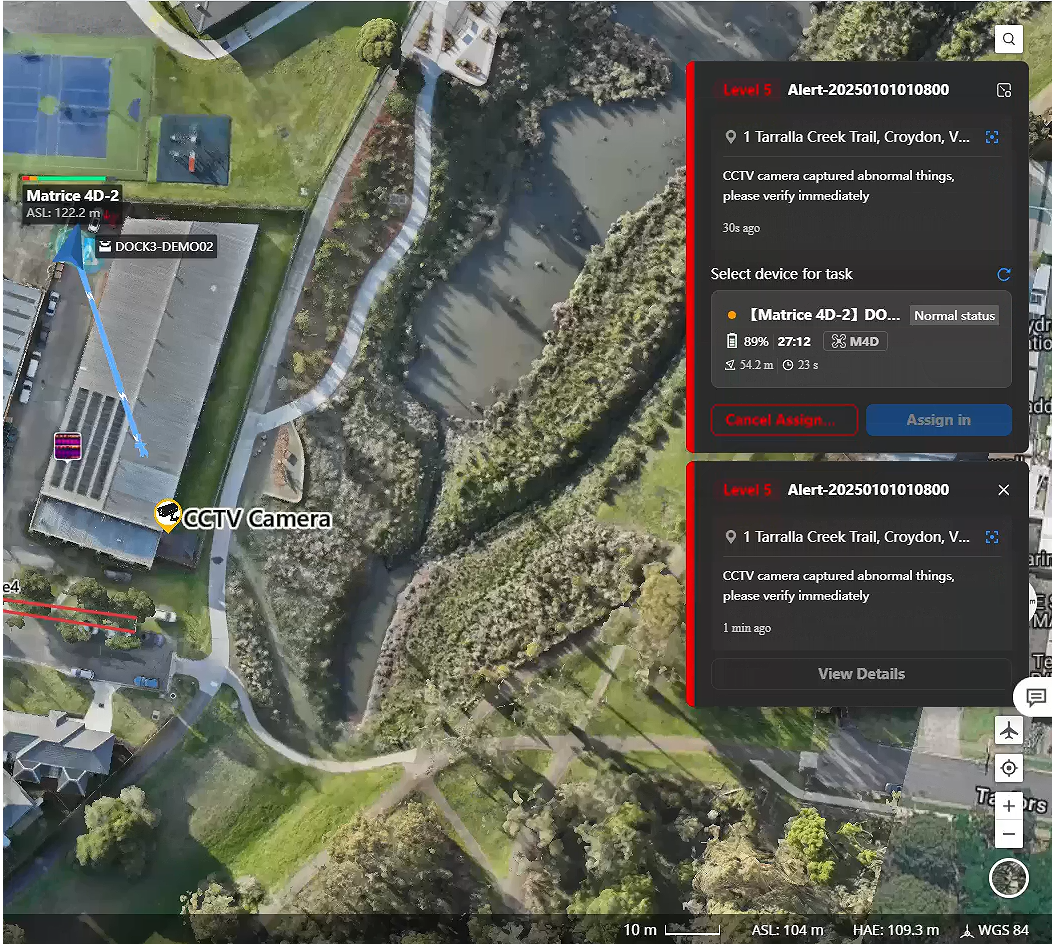

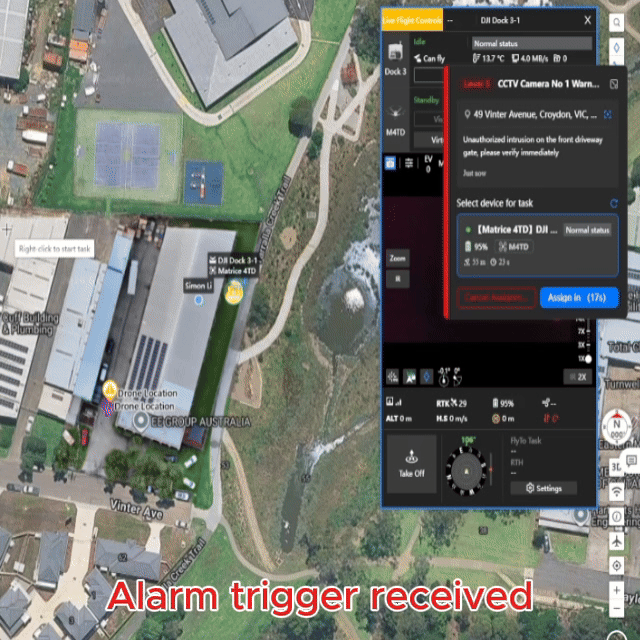

  • Trigger to Fly with VMS Alarm Output: When a traditional CCTV camera, ground sensor, or radar detects an anomaly, the VMS automatically triggers an alarm output. Through API integration, the Dock 3 autonomously launches the drone to the targeted waypoint to provide rapid aerial verification alongside the ground view.

Reduced Labor Costs:

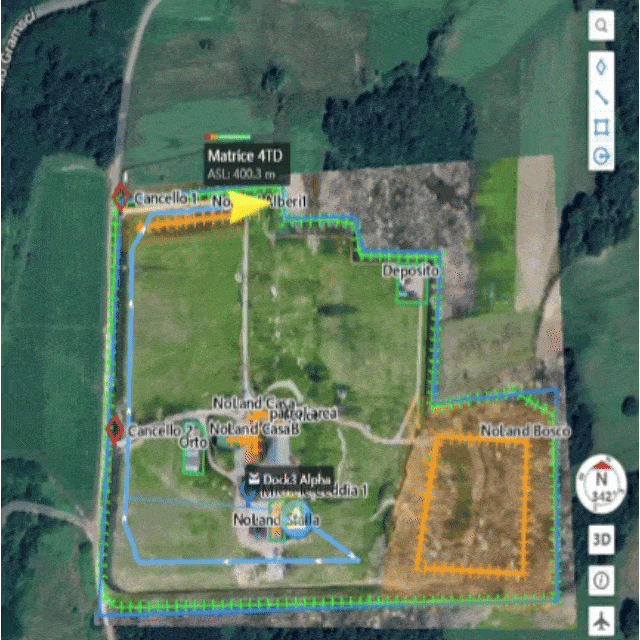

  • Autonomous Routine Patrols: Program DJI Dock 3 for 24/7 automated perimeter sweeps, ensuring constant site visibility and drastically reducing the need for costly manual guards.

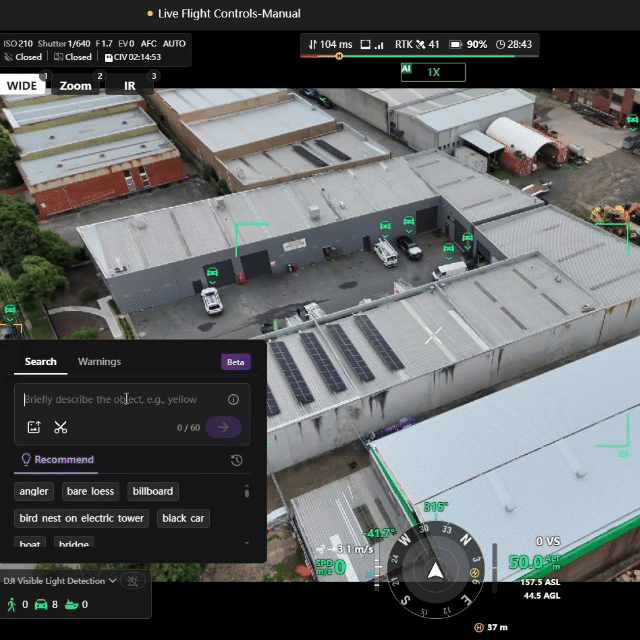

  • AI & Natural Language Search: Simply type commands like "search for a blue car." The AI Copilot autonomously understands and executes the search, requiring zero piloting skills.

Results & Summary

By integrating DJI's automated drone platforms with your existing VMS, security teams unlock unmatched value:

  • Eliminate Blind Spots: Overcome the fixed angles and dead zones of traditional CCTV with a dynamic, 3D aerial perspective—leaving intruders nowhere to hide.

  • Proactive Security: Evolve from passively recording incidents to actively responding with AI-powered aerial surveillance within seconds.

  • Drastic Cost Reduction: Offset expensive 24/7 physical guard patrols (often costing $450k+ annually) with a highly efficient, automated drone system.
