DJI MATRICE 350 RTK
Fully Powered to Forge Ahead
An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.
55-Min Max Flight Time
400 Battery Cycles
IP55 Rating
6-Directional Sensing & Positioning
DJI O3 Enterprise Transmission
Night-Vision FPV Camera
DJI RC Plus
Night-Vision FPV Camera

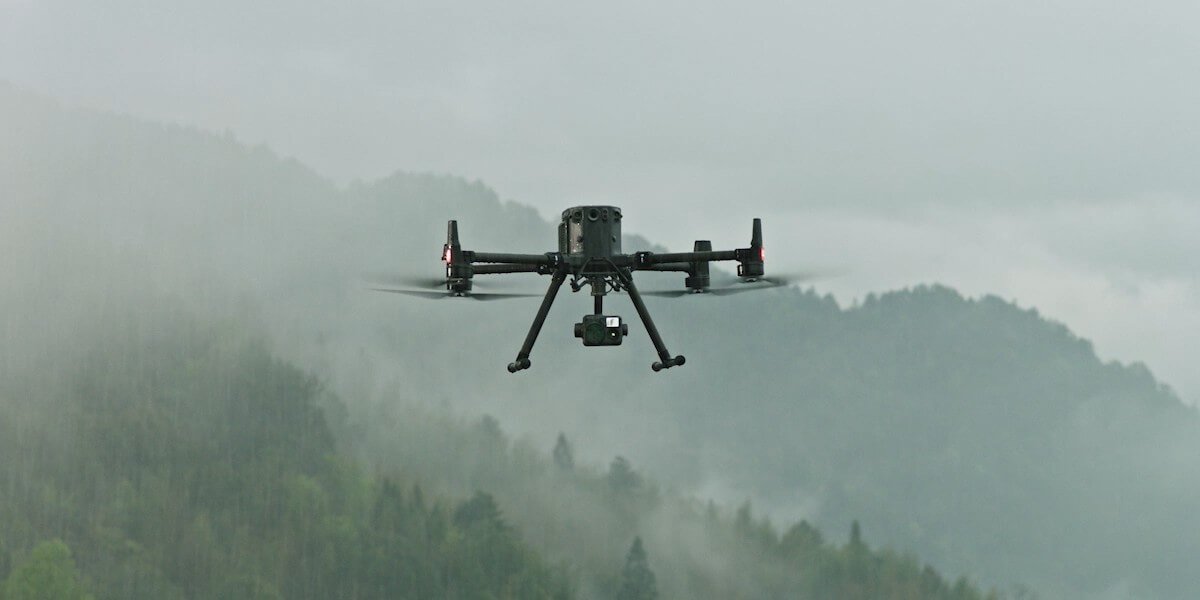

Effortlessly Powerful Flight Performance
The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel3 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz4 enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.
55 min
Max Flight Time
IP55
Protection Rating
7000 m
Service Ceiling
-20° to 50°
Operating Temperature
12 m/s
Max Wind Speed Resistance
2.7 kg
Max Payload

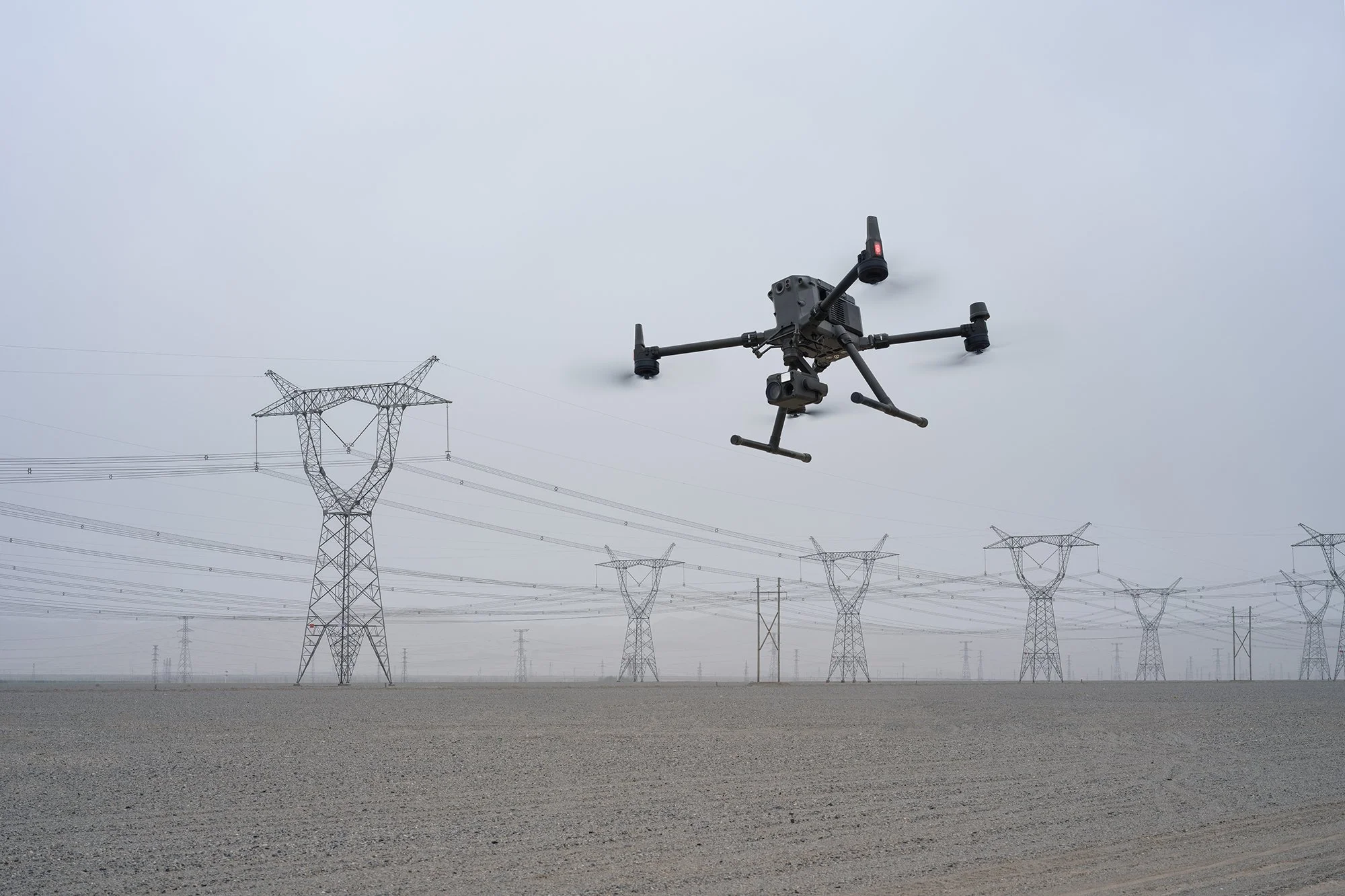

Stay Stable With New Transmission System
O3 Enterprise Transmission
Matrice 350 RTK adopts DJI O3 Enterprise Transmission, which supports triple-channel 1080p HD live feeds, [5] and a max transmission distance of 20 km. [6] Both the aircraft and the remote controller have a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously. In this way, anti-interference capabilities are significantly improved, and transmission stability is optimized.
New Control Experience

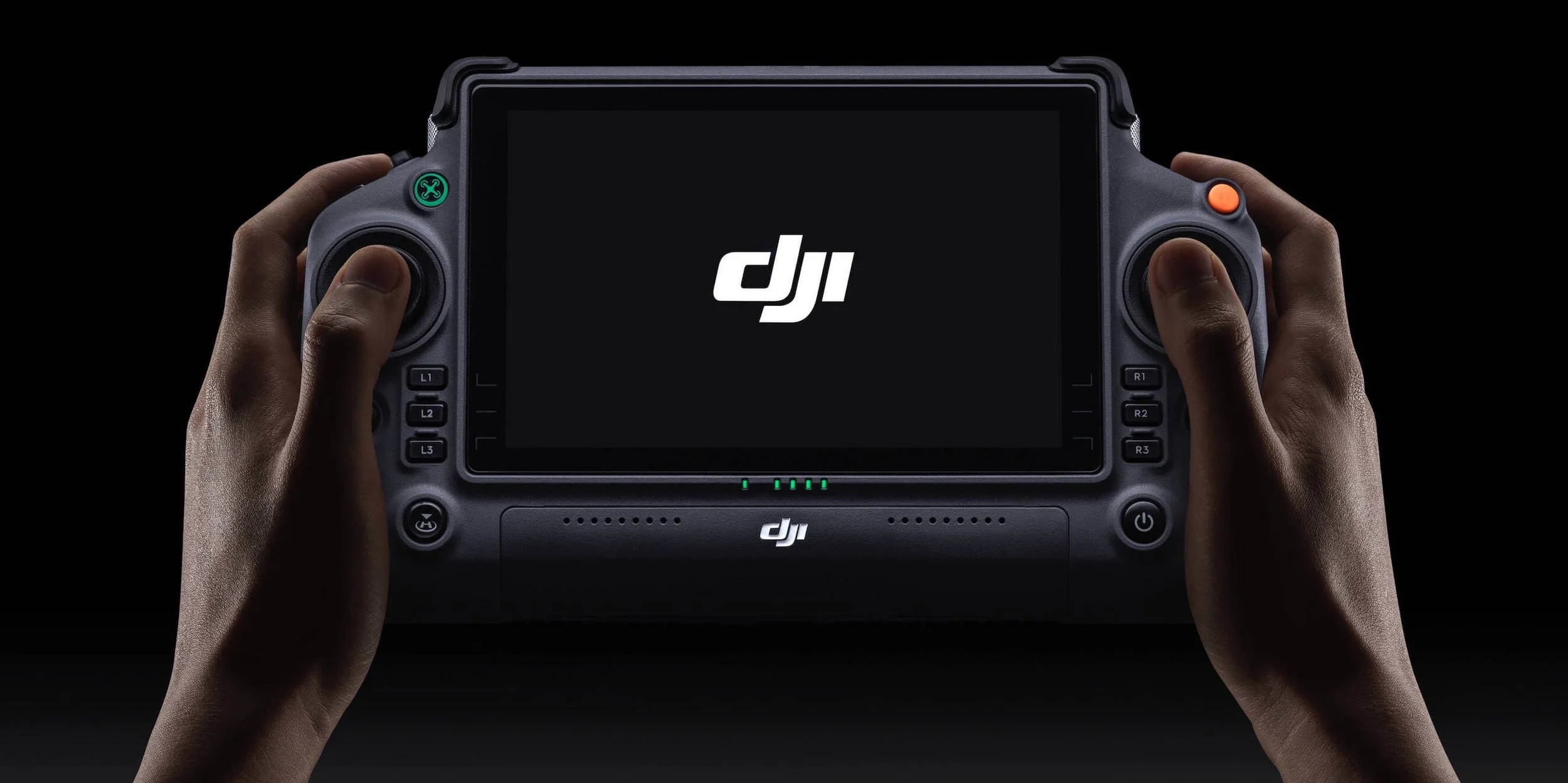

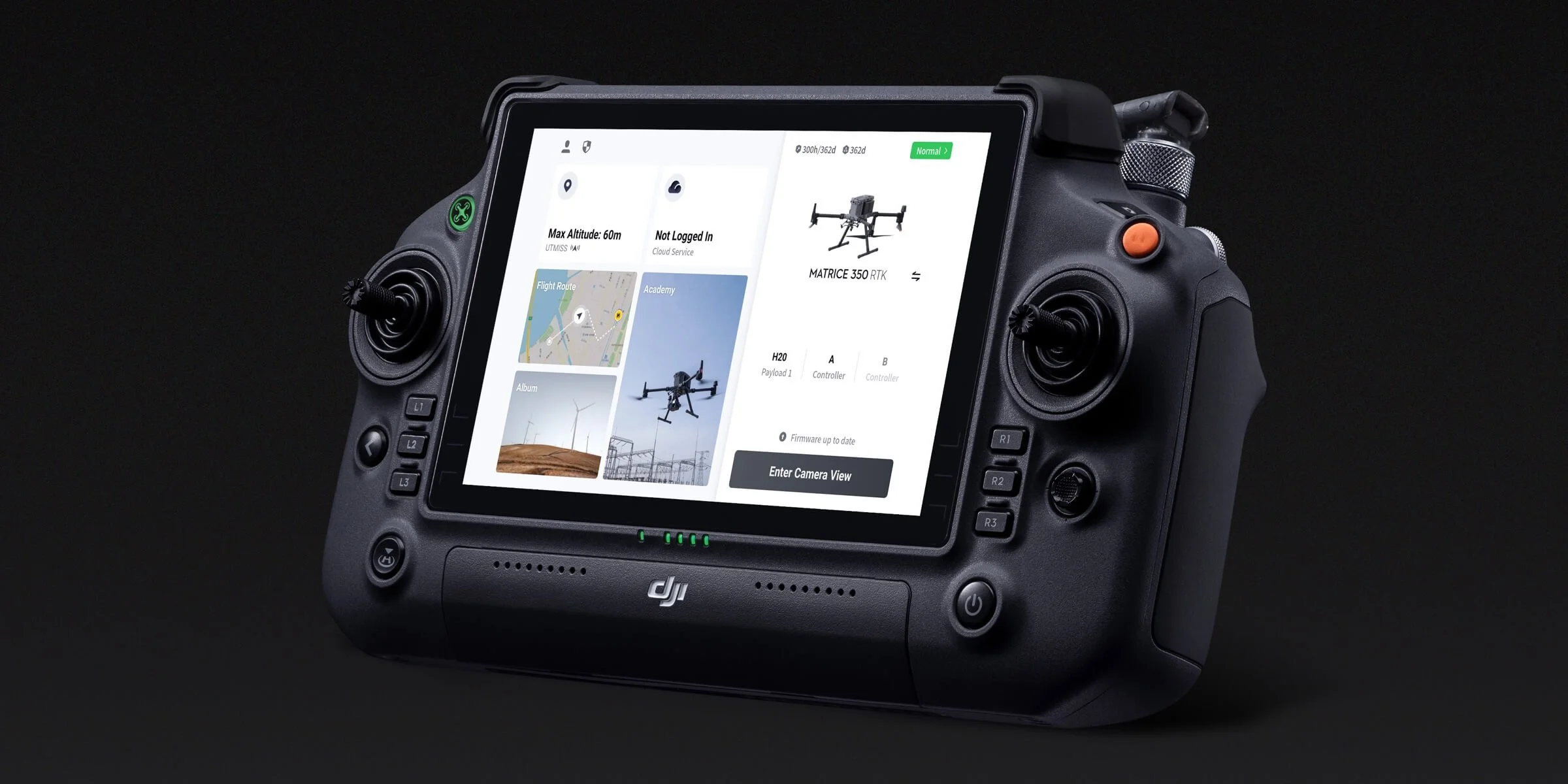

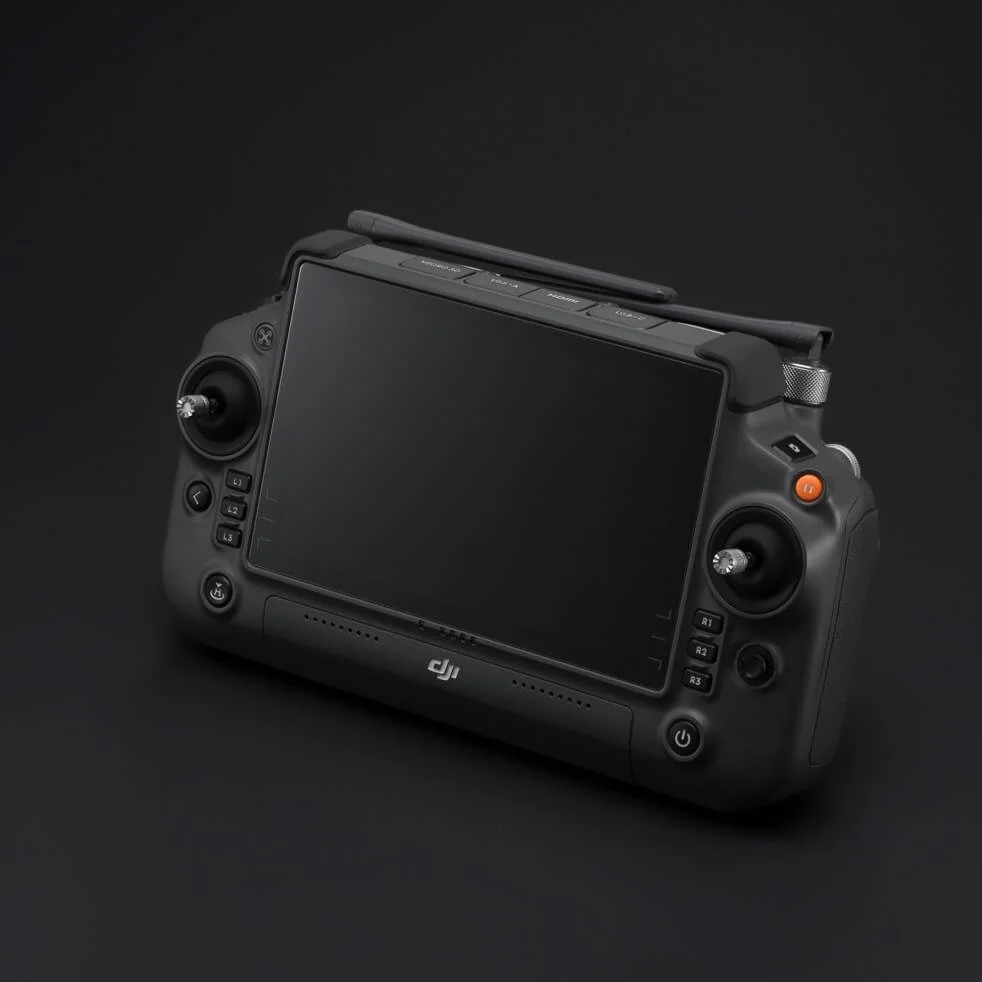

DJI RC Plus
Equipped with a 7-inch high-bright screen, DJI RC Plus supports Dual Operator Mode and comes with a standard WB37 external battery that offers an operating time of up to six hours, meeting various operation needs.

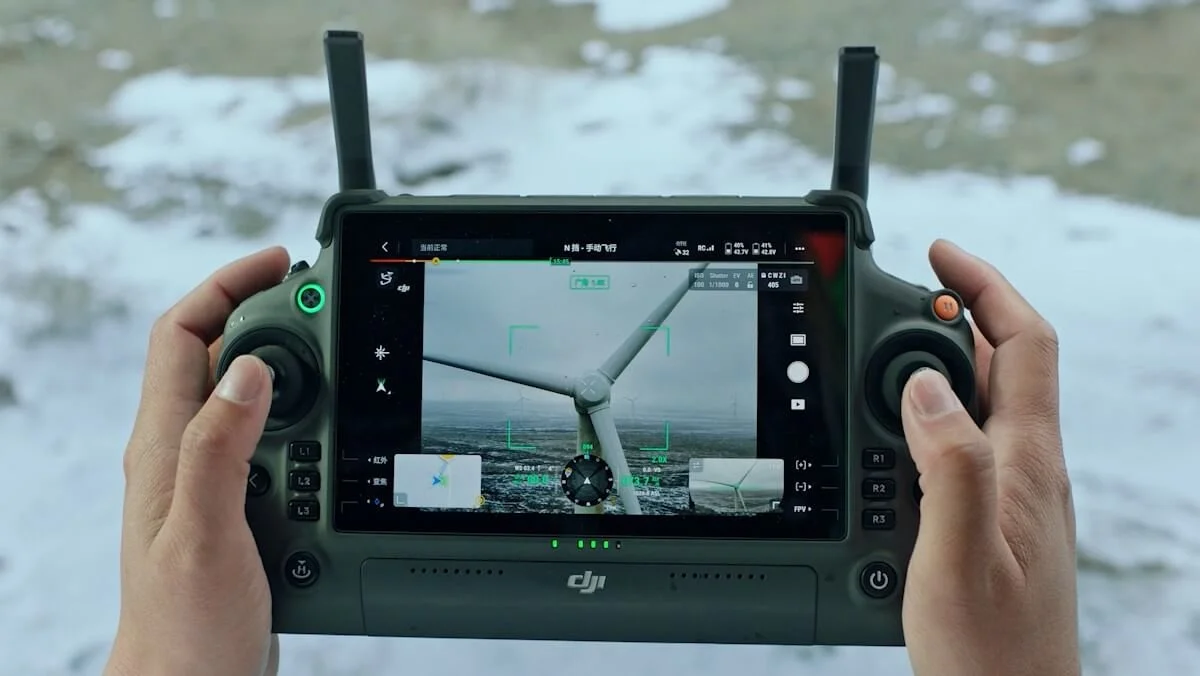

Smooth and Efficient Control
There are several buttons and dials on the front, back, and top of the remote controller for fast operation. Button functions can be customized to fit users’ habits and deliver an intuitive and flexible experience.
Built Ready for Harsh Environments
IP54 rated, [2] DJI RC Plus is dustproof and waterproof to operate reliably in bad weather. The operating temperature is -20° to 50° C (-4° to 122° F), supporting around-the-clock operation even in severely hot or cold environments.

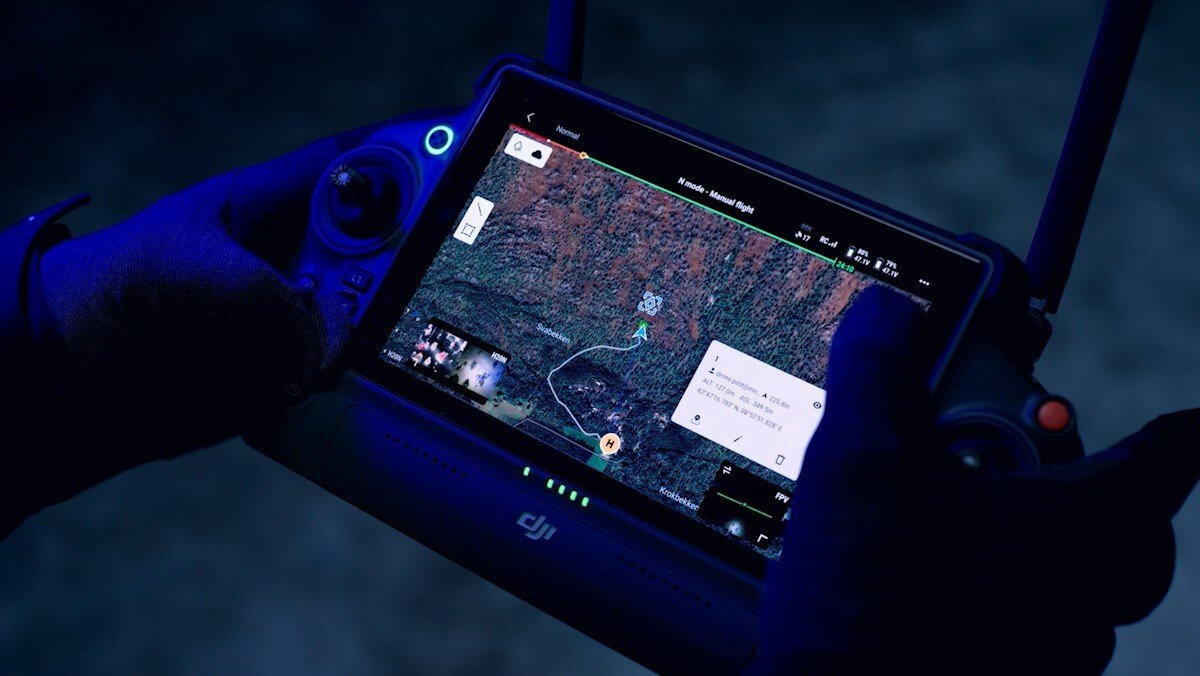

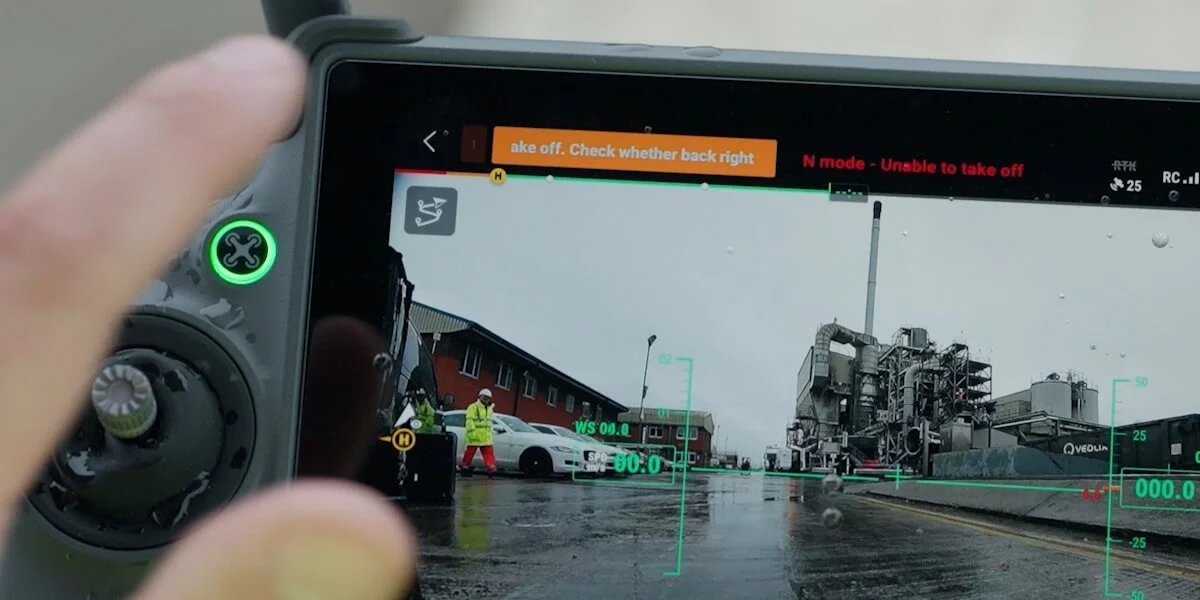

The DJI Pilot 2 app has been further optimized to clearly present the mission type and flight status. Easy and smooth control of the aircraft and payloads facilitates more efficient operation.
DJI Pilot 2
Upgraded Battery System

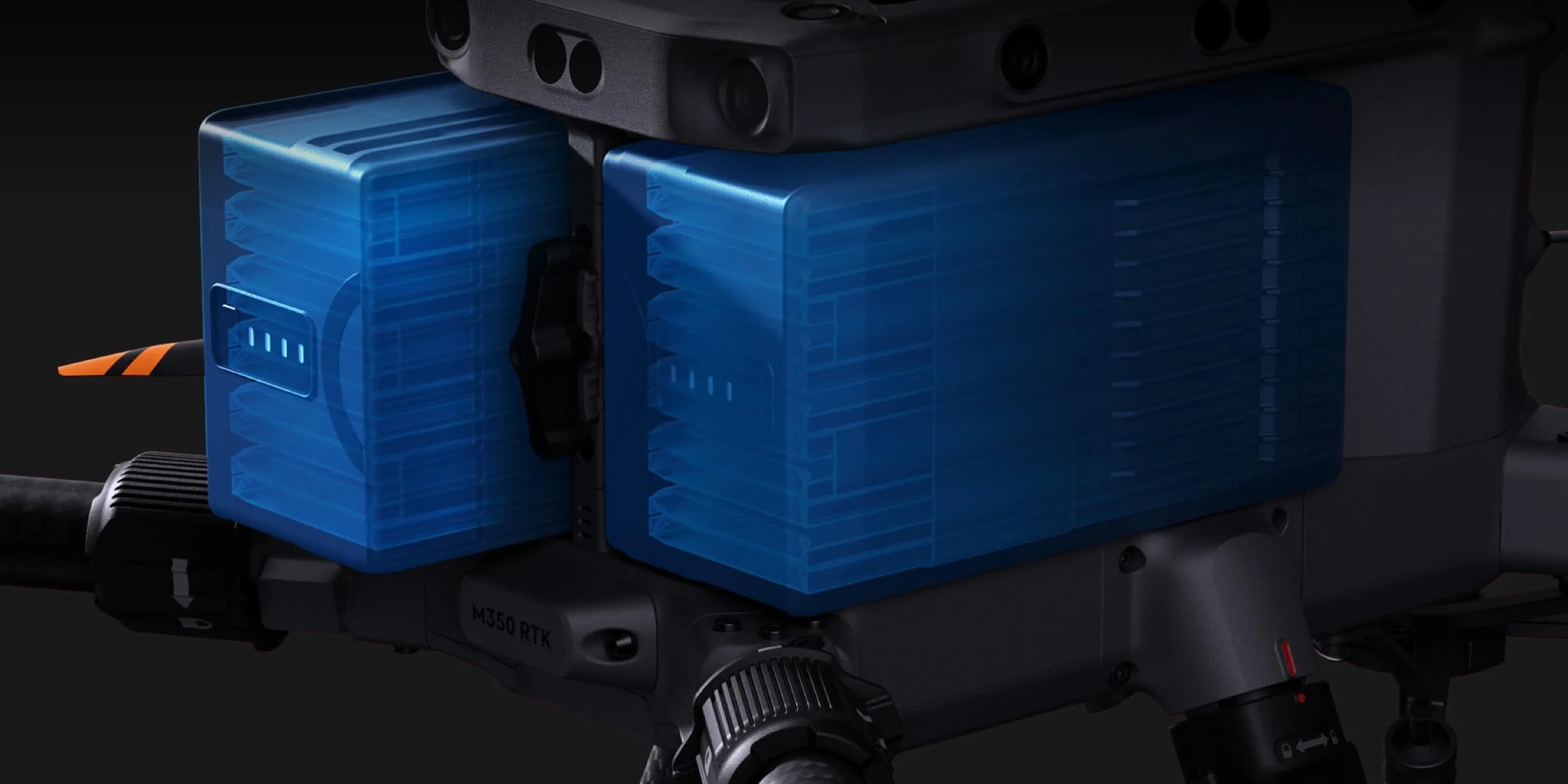

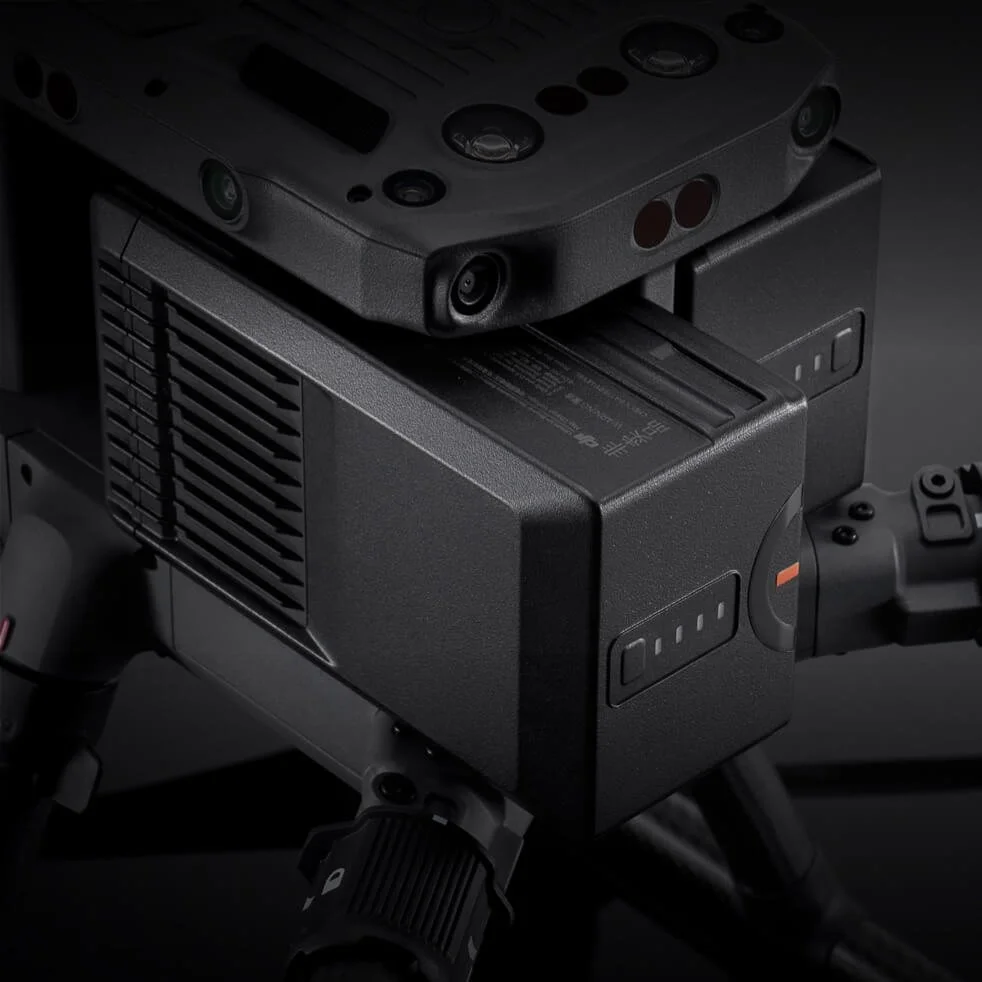

New Dual-Battery System
The Matrice 350 RTK is equipped with a new TB65 dual-battery system, which supports battery hot swapping and allows for multiple flights without powering off. The battery can be charged up to 400 cycles, [3] reducing the cost of a single flight.

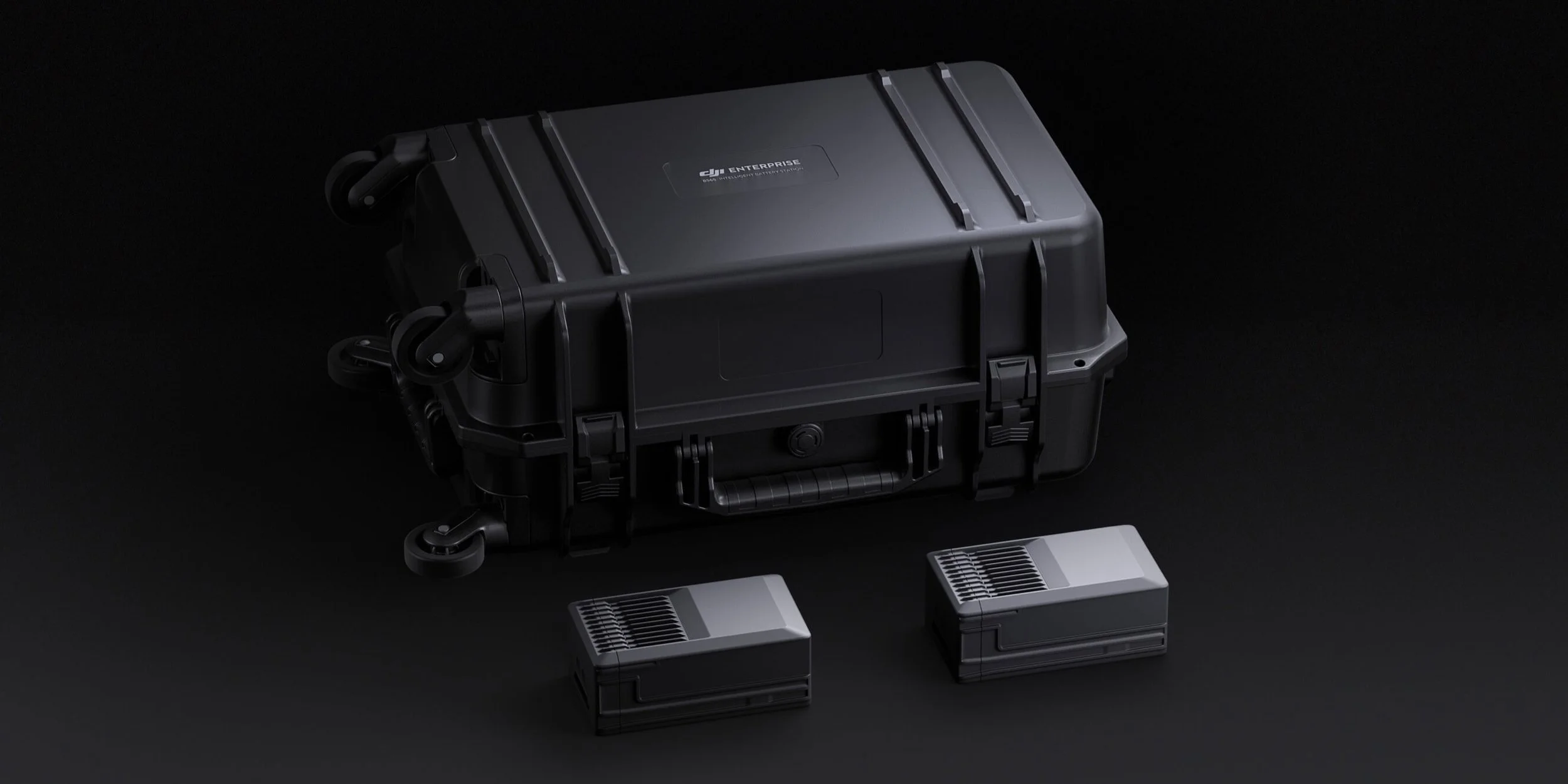

Next-Gen Intelligent Battery Station
The new BS65 Intelligent Battery Station provides a one-stop solution for battery charging, storage, and transport.

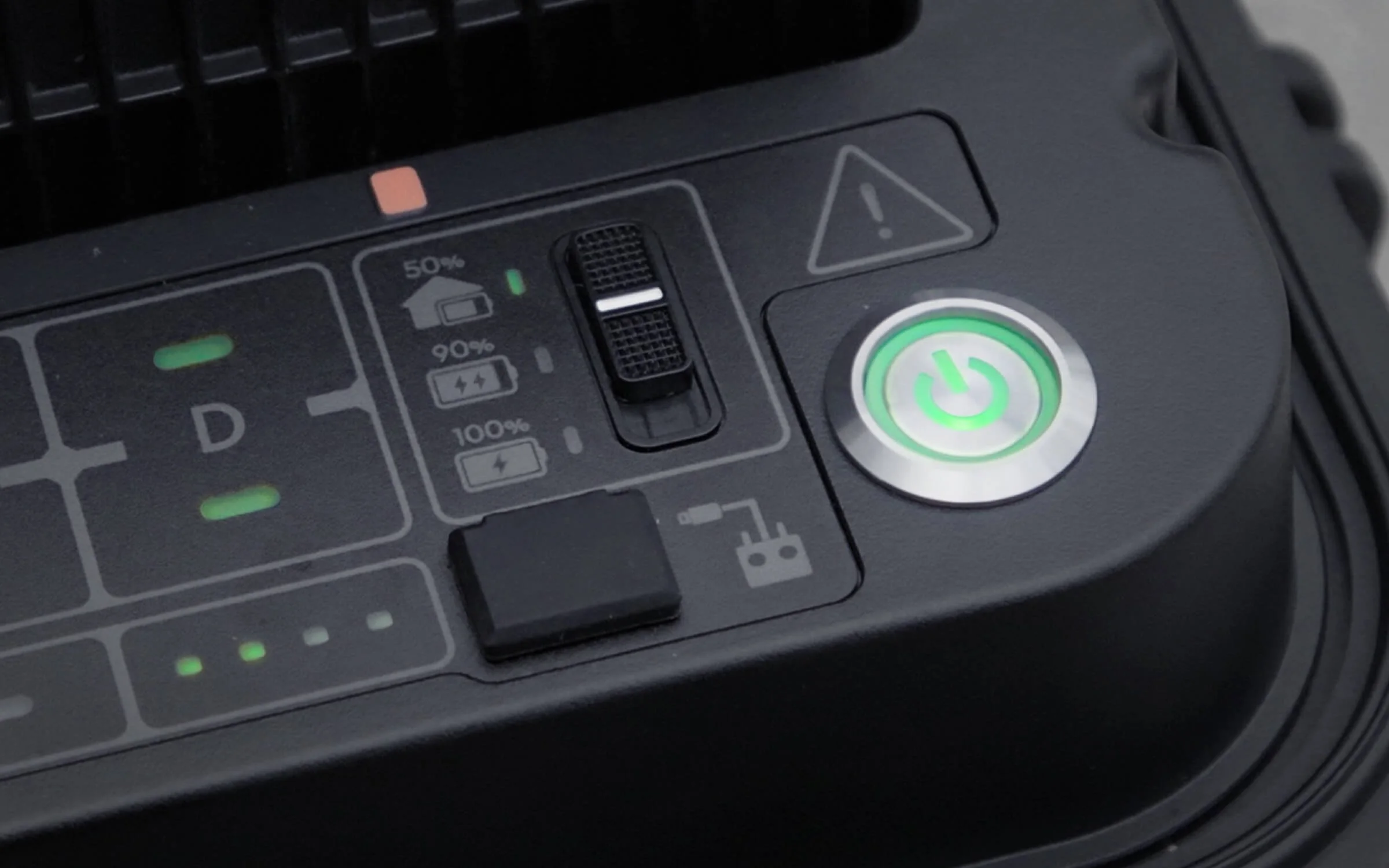

Multiple Charging Modes
In Storage Mode, charge the battery to 50%, which is good for long-term storage. In Ready-to-Fly Mode, quickly charge multiple battery sets to 90% to start operation at any time and extend the battery life.
Intelligent Management

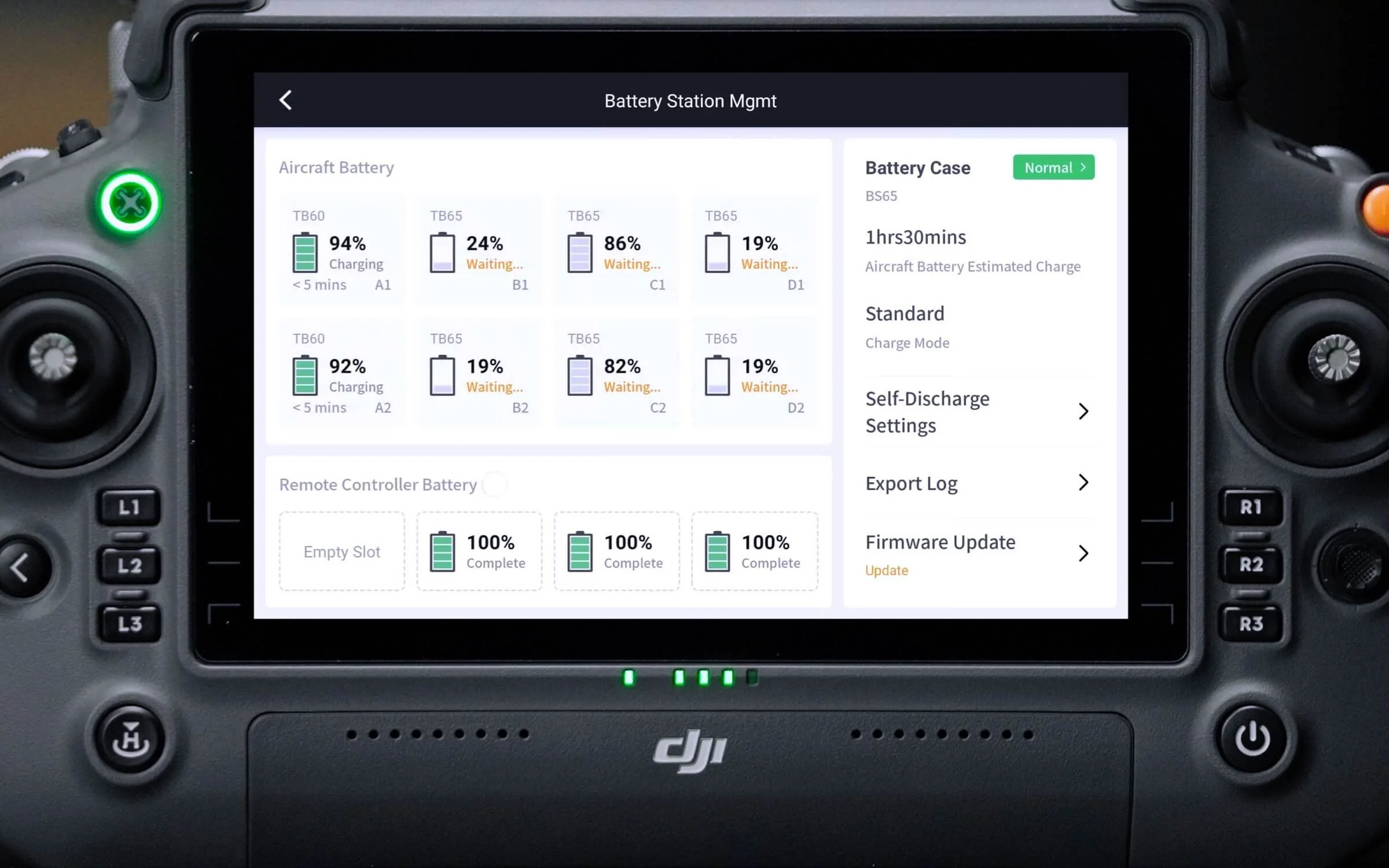

When the battery station is connected to DJI RC Plus, the DJI Pilot 2 app will display the battery status and health information. In addition, you can set the number of self-discharge days, update the firmware, export logs, and access other quick operations with one tap.
Effortless Transitions
The battery station is designed with 360°-movement wheels for more convenient transportation and transitions.
Enhanced Flight Safety
Arm Lock Indicator
The Matrice 350 RTK adds a new arm lock detection function to avoid the risk of unlocked arm sleeves, allowing you to focus on flight with more peace of mind.
Night-Vision FPV Camera
With the CSM Radar installed, Matrice 350 RTK can detect subtle obstacles upward or within the horizontal 360° range and avoid them in time. [9] The effective detection range is up to 30 m, [10] further improving flight safety.
6-Directional Sensing & Positioning
With the CSM Radar installed, Matrice 350 RTK can detect subtle obstacles upward or within the horizontal 360° range and avoid them in time. [9] The effective detection range is up to 30 m, [10] further improving flight safety.

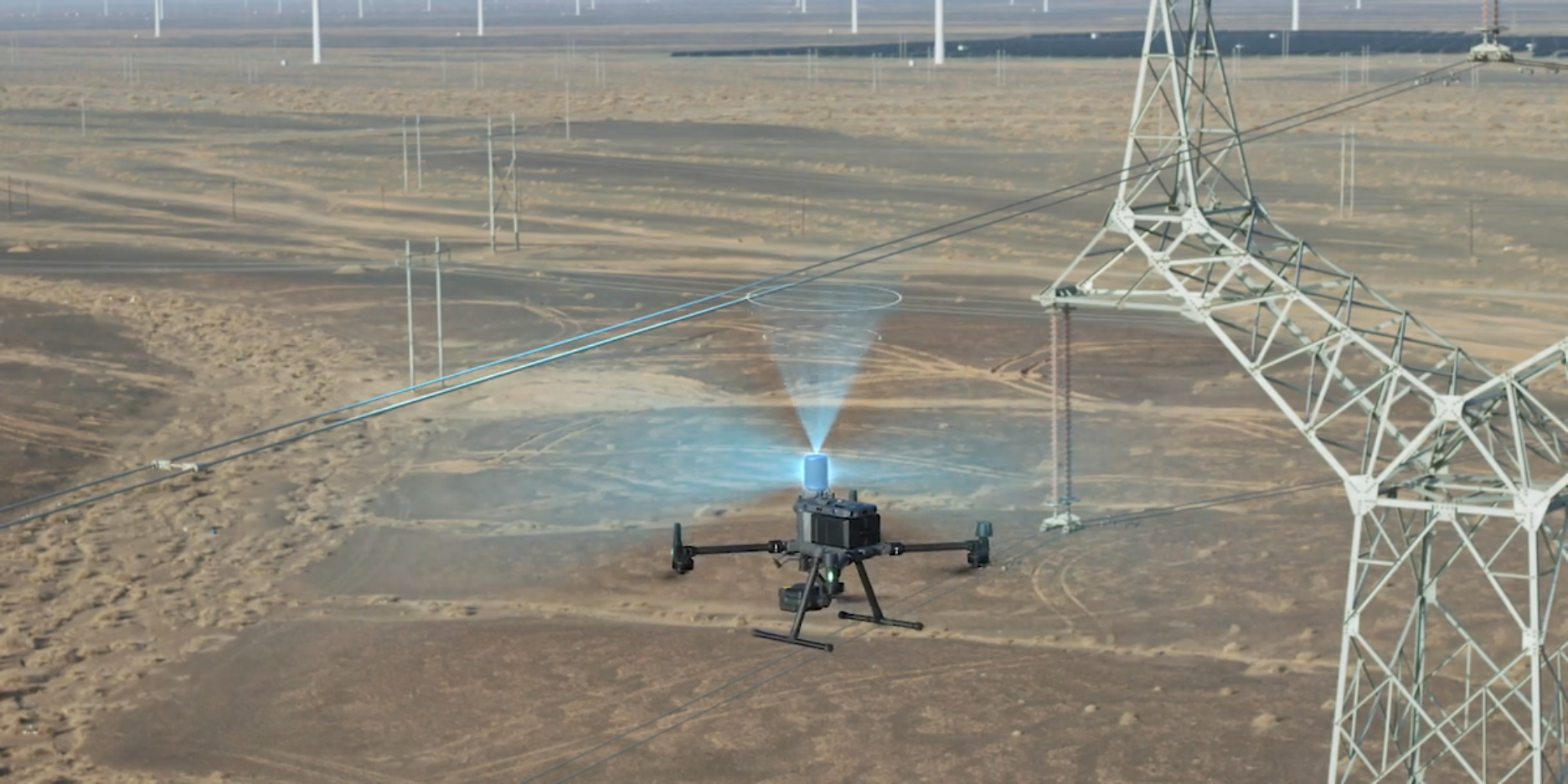

CSM Radar
With the CSM Radar installed, Matrice 350 RTK can detect subtle obstacles upward or within the horizontal 360° range and avoid them in time. [9] The effective detection range is up to 30 m, [10] further improving flight safety.

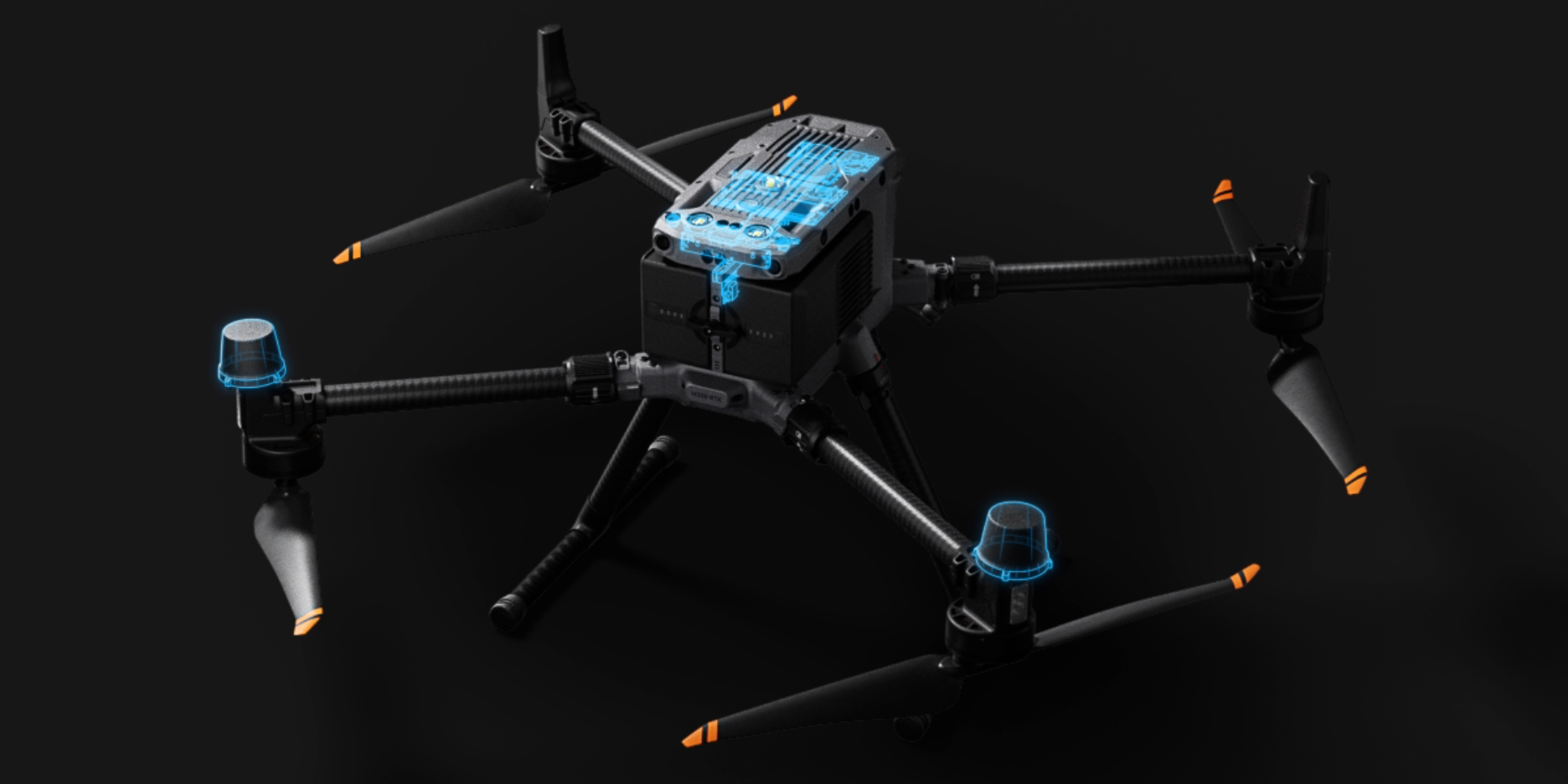

Multi-Layered Redundancy Design
Both the aircraft system and the sensor system of the Matrice 350 RTK adopt a redundancy design to maximumly ensure flight safety, allowing you to cope with harsh operating environments more confidently.
Powerful Payloads
The Matrice 350 RTK supports a single downward gimbal, dual downward gimbals, [11] and single upward gimbal, [11] and has an E-Port open interface. With a max payload capacity of 2.7 kg, the aircraft can carry up to three payloads simultaneously, meeting the needs of different operation scenarios like public safety, inspection, and mapping.

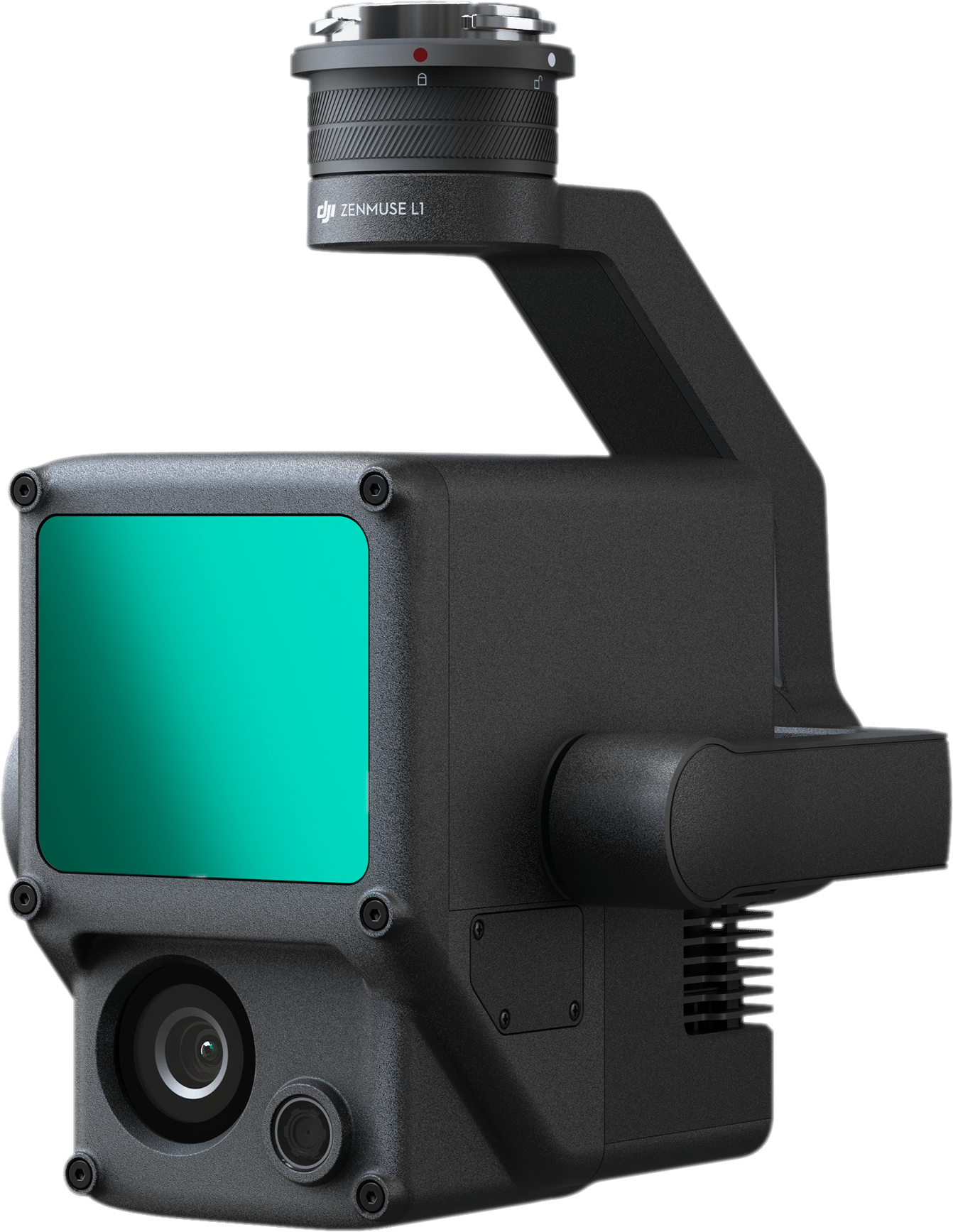

Zenmuse L1
Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a mapping camera. When used with the flight platform, it forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.

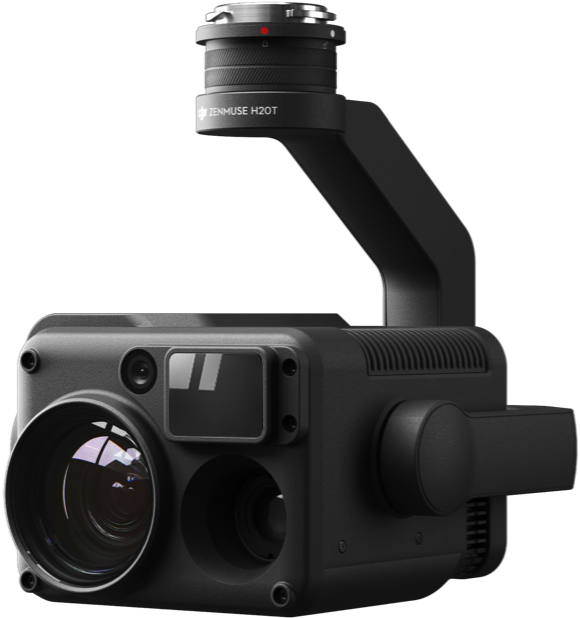

Zenmuse H20 Series
The four-sensor system of zoom camera, wide camera, thermal camera, and laser rangefinder works together, supplemented by advanced intelligent algorithms, to deliver outstanding sensing and imaging performance.

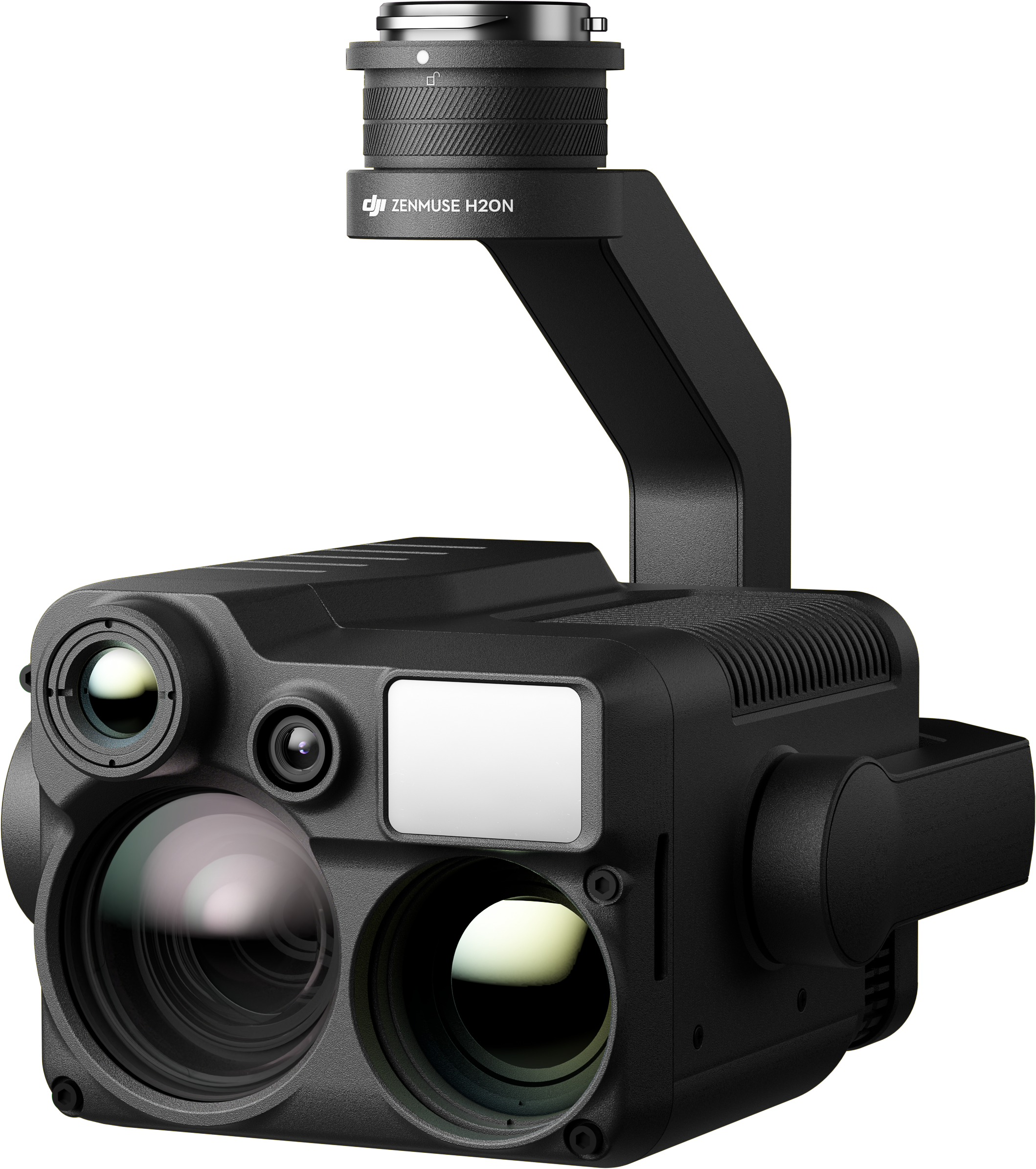

Zenmuse H20N
Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.
Zenmuse P1
Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.
CSM Radar

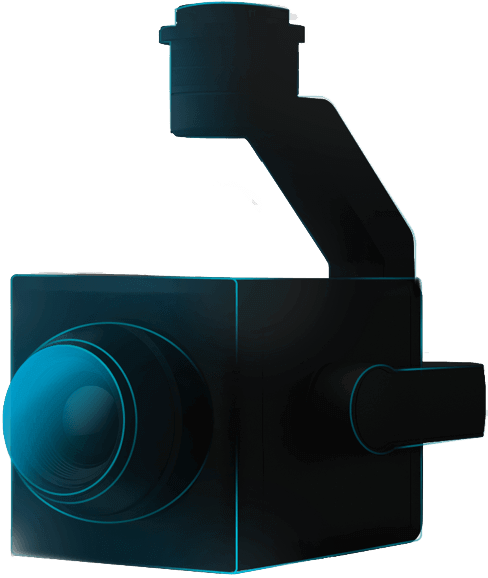

Third-Party Payloads
Customized payloads like gas detectors, loudspeakers, and multispectral sensors can be combined with Matrice 350 RTK through DJI Payload SDK to expand application fields.
Intelligent Operation
High-Precision Mapping
Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions. You can use Terrain Follow [12] or Smart Oblique [13] for efficient data collection. Together with DJI Terra, you can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operation.
Air-to-Ground Coordination
With functions like the high-precision PinPoint and cloud-based real-time mapping, [14] the Matrice 350 RTK can link the air, ground, and cloud together. After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators. Both the remote controller and FlightHub 2 support point, line, surface drawing, and real-time uploading, and can cooperate with the aircraft to livestream the real-time operation view, breaking through communication barriers for air-to-ground collaborative operation.

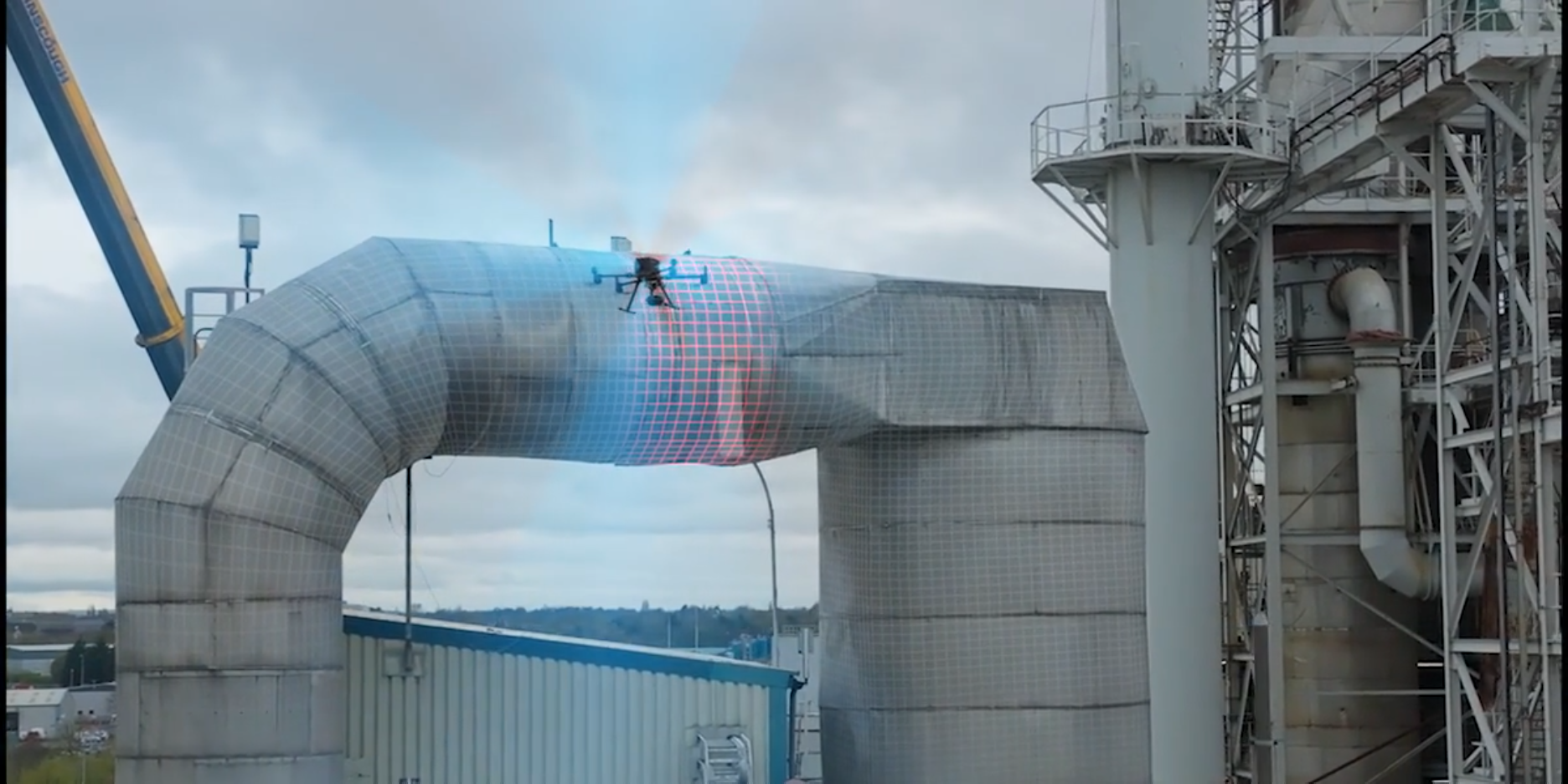

Automated Precision Inspection

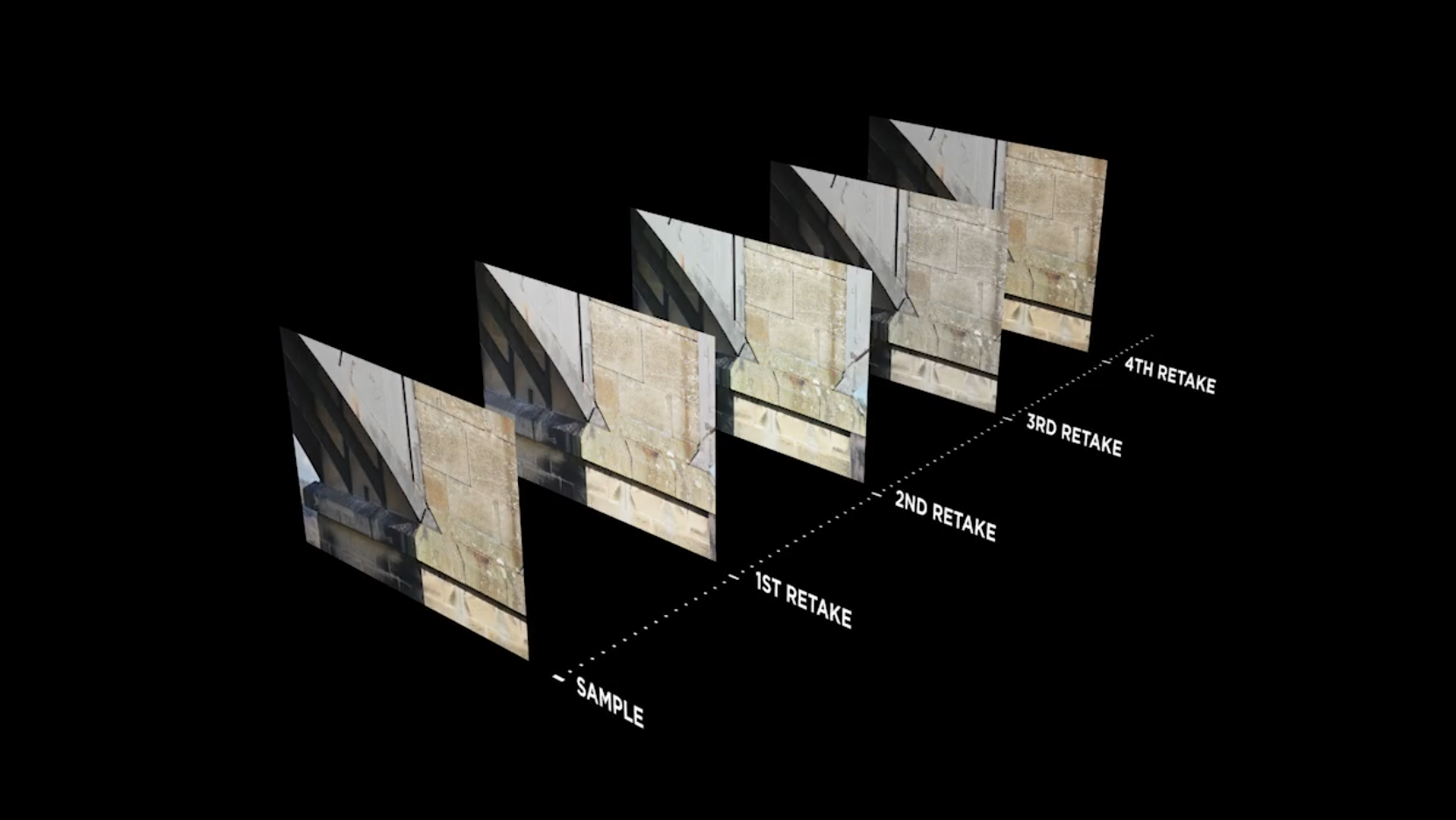

Through Live Mission Recording, the Matrice 350 RTK can generate and store flight route files that can be used at any time to realize automated operation and make repetitive inspection no longer time-consuming or effort-consuming. When using AI Spot-Check, [15] the Matrice 350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.
Extensive Accessories
DJI RC Plus
DJI RC Plus has a 7-inch screen with a brightness of up to 1,200 nits as well as multiple buttons, delivering a smooth control experience. It comes with a standard WB37 external battery and supports battery hot swapping. It can operate for up to 6 hours when combining internal and external batteries for use.

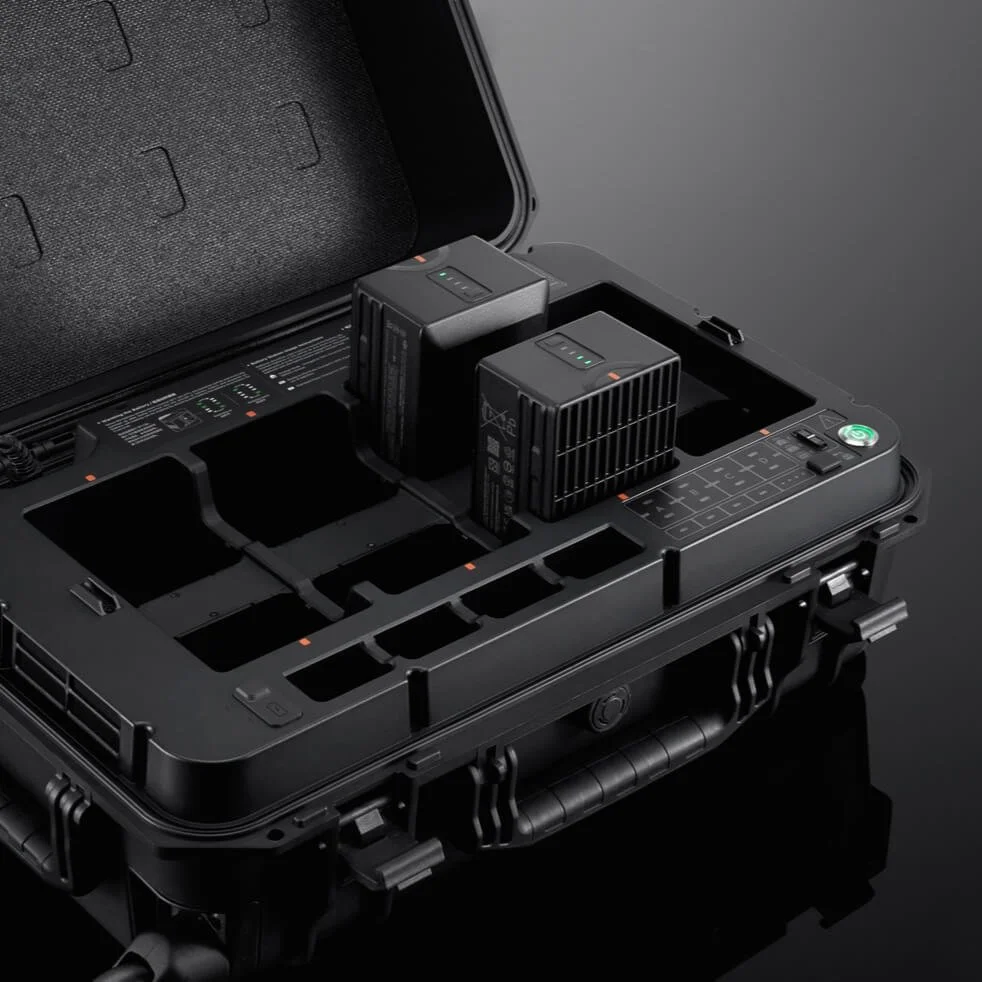

BS65 Intelligent Battery Station
The battery station provides a one-stop solution for battery charging, storage, and transport. The new Storage Mode and Ready-to-Fly Mode improve charging efficiency and extend the battery life. The new design of 360°-movement wheels facilitates more convenient transportation and transitions.
TB65 Intelligent Flight Battery
The TB65 Intelligent Flight Battery adopts high-performance and high-energy cells and can be charged up to 400 cycles, [3] reducing the cost for a single flight. Meanwhile, it has enhanced heat dissipation performance and an auto-heating system.

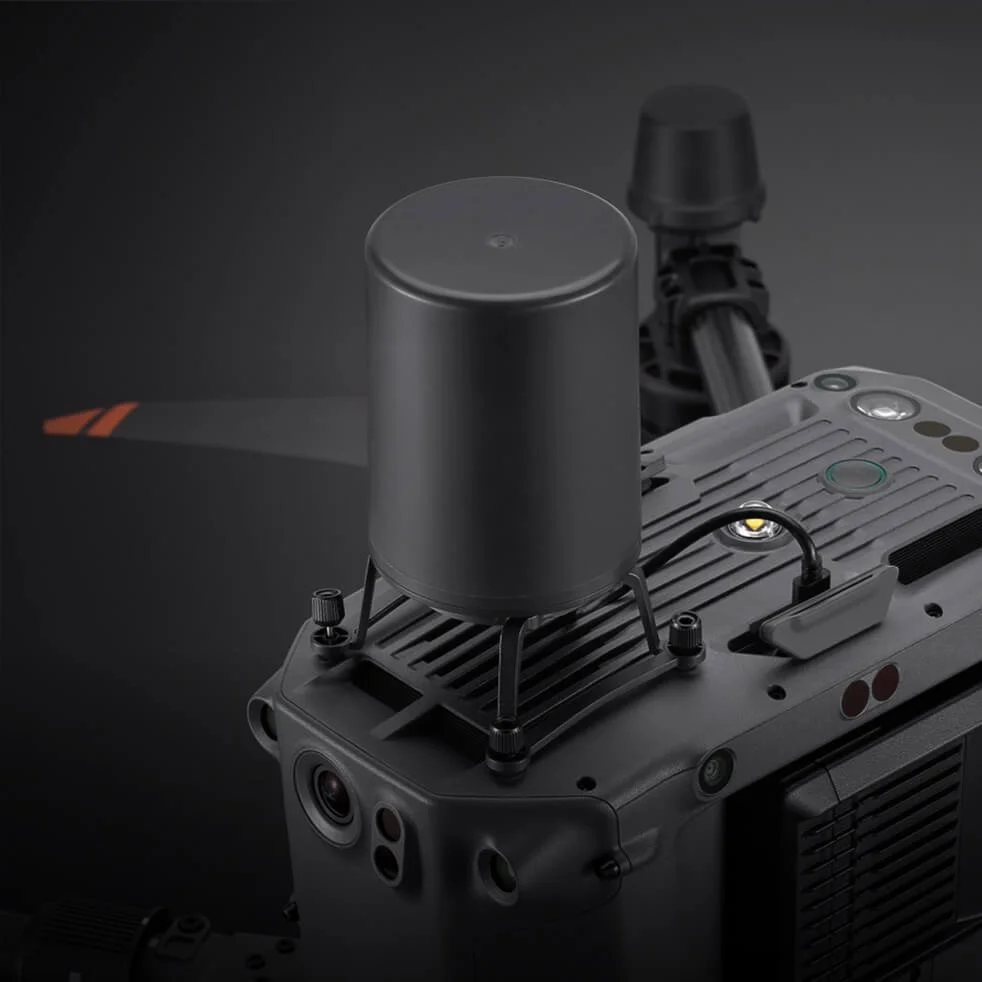

CSM Radar [8]
The CSM Radar can be mounted on top of the drone to further ensure flight safety. The effective detection range can reach 30 m. [10] The radar can accurately detect subtle obstacles upward or within the horizontal 360° range to avoid them in time. [9]
High-Altitude Low-Noise Propellers [8]
The high-altitude low-noise propellers guarantee flight performance at high altitudes of 3,000-7,000 m, and the noise of the blades is reduced by 2 decibels compared with the standard 2110s propellers. [17]
* Please check and strictly abide by local laws and regulations before flying.
** All data was tested with a production model Matrice 350 RTK in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.
*** All videos and images on this page were shot in strict compliance with relevant local laws and regulations.
**** Before use, Matrice 350 RTK must be activated via the DJI Pilot 2 app.
1. Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Please pay attention to reminders in the app for the actual usage time.
2. Measured in a controlled environment. The IP rating is not permanently effective and may decrease due to product wear and tear.
3. Up to 400 cycles if the accumulative duration of battery level ≥ 90% is less than 120 days within 12 months.
4. Measured with the 2112 High-Altitude Low-Noise Propellers and the takeoff weight ≤ 7.2 kg.
5. Dual Operator Mode required.
6. Measured with FCC compliance in an unobstructed environment with low interference at a flight altitude of approximately 120 m. Data is for reference only. During your flight, please pay attention to reminders in the app.
7. There are certain blind areas of visual sensing and infrared sensing. Positioning and obstacle-sensing performance may be affected by the flight environment and obstacle characteristics. Please fly with caution.
8. Sold separately.
9. Please enable the radar obstacle avoidance function in the DJI Pilot 2 app and set the aircraft safety distance (> 2.5 m is recommended), and the flight speed should be < 10 m/s.
10. Measured when the radar reflection cross-sectional area of the detection target is ≥ 0.4 m². The effective detection range may vary with the size and material of the obstacle.
11. Gimbal connector is sold separately.
12. This function requires the remote controller to connect to the Internet and download DEM files.
13. This function requires Zenmuse P1.
14. DJI FlightHub 2 required.
15. This function requires the Zenmuse H20 Series payloads.
16. The accessories in this section can also be used with the Matrice 300 RTK.
17. Measured with CE compliance.
18. The aircraft comes with E-Port, while SkyPort and X-Port components are sold separately.
