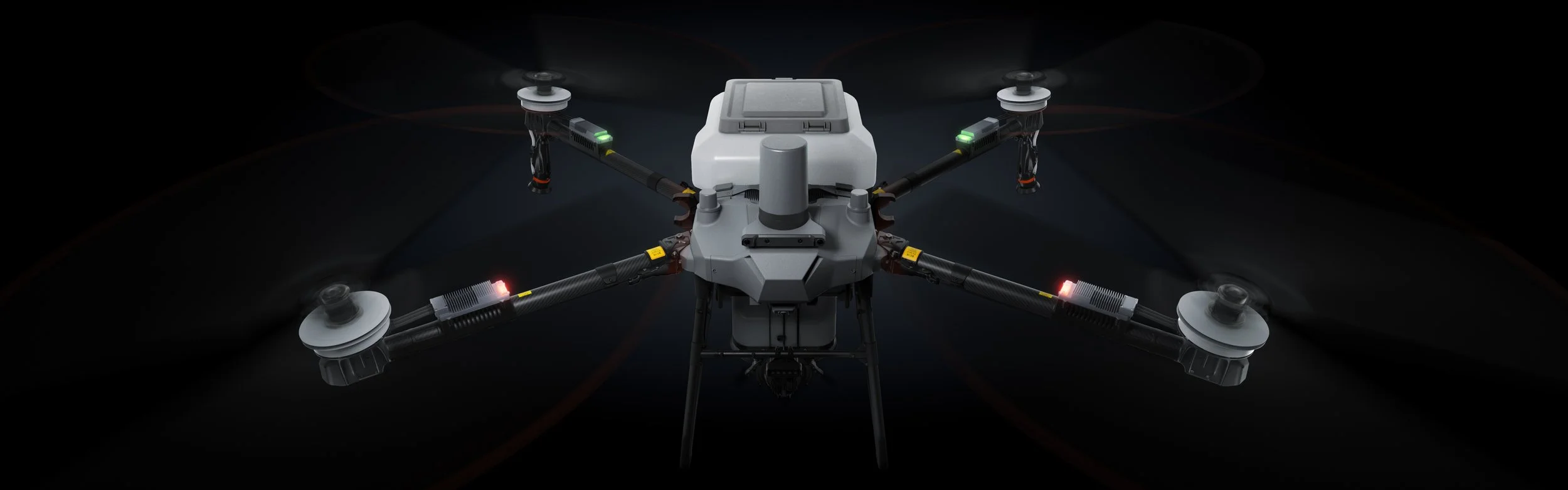

DJI AGRAS T70 P
Efficiency Experts.

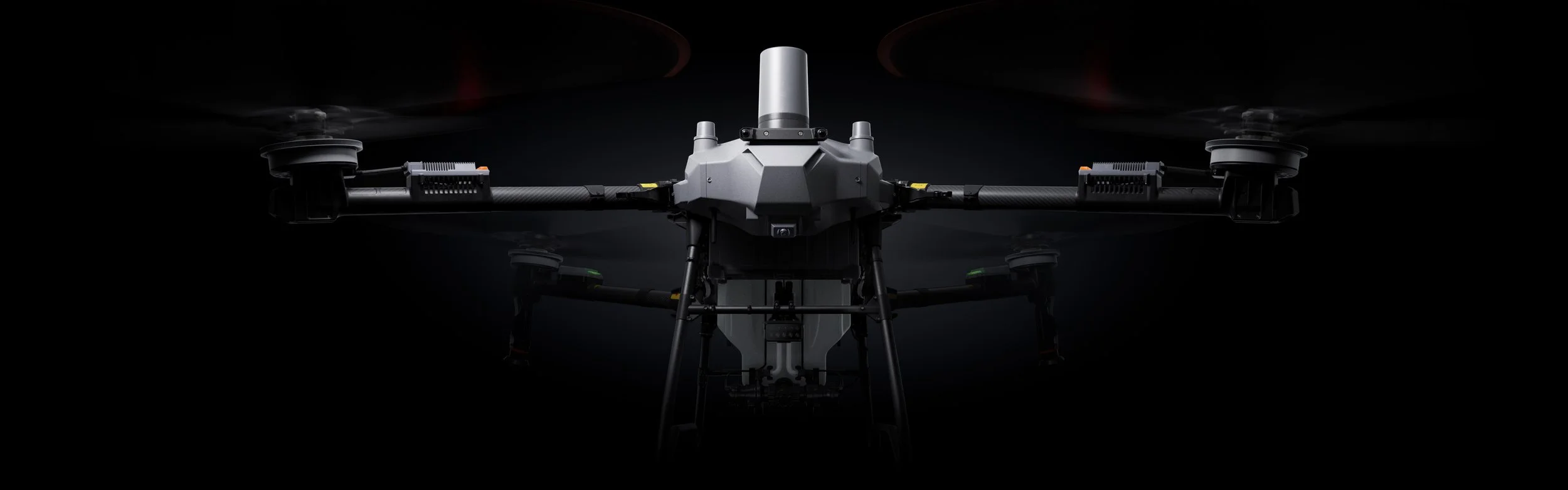

The DJI Agras T70P agricultural drone is newly upgraded to support spraying, spreading, and lifting in various operational scenarios, with a maximum payload capacity of 70 kg[1]. It delivers enhanced efficiency while featuring Safety System 3.0[2] and advanced algorithms for comprehensive, round-the-clock[3] protection.
Heavy Payload
70 kg Payload
70 L Spray Tank
100 L Spreading Tank
Intelligent Safety
Safety System 3.0
Millimetre-Wave Radar

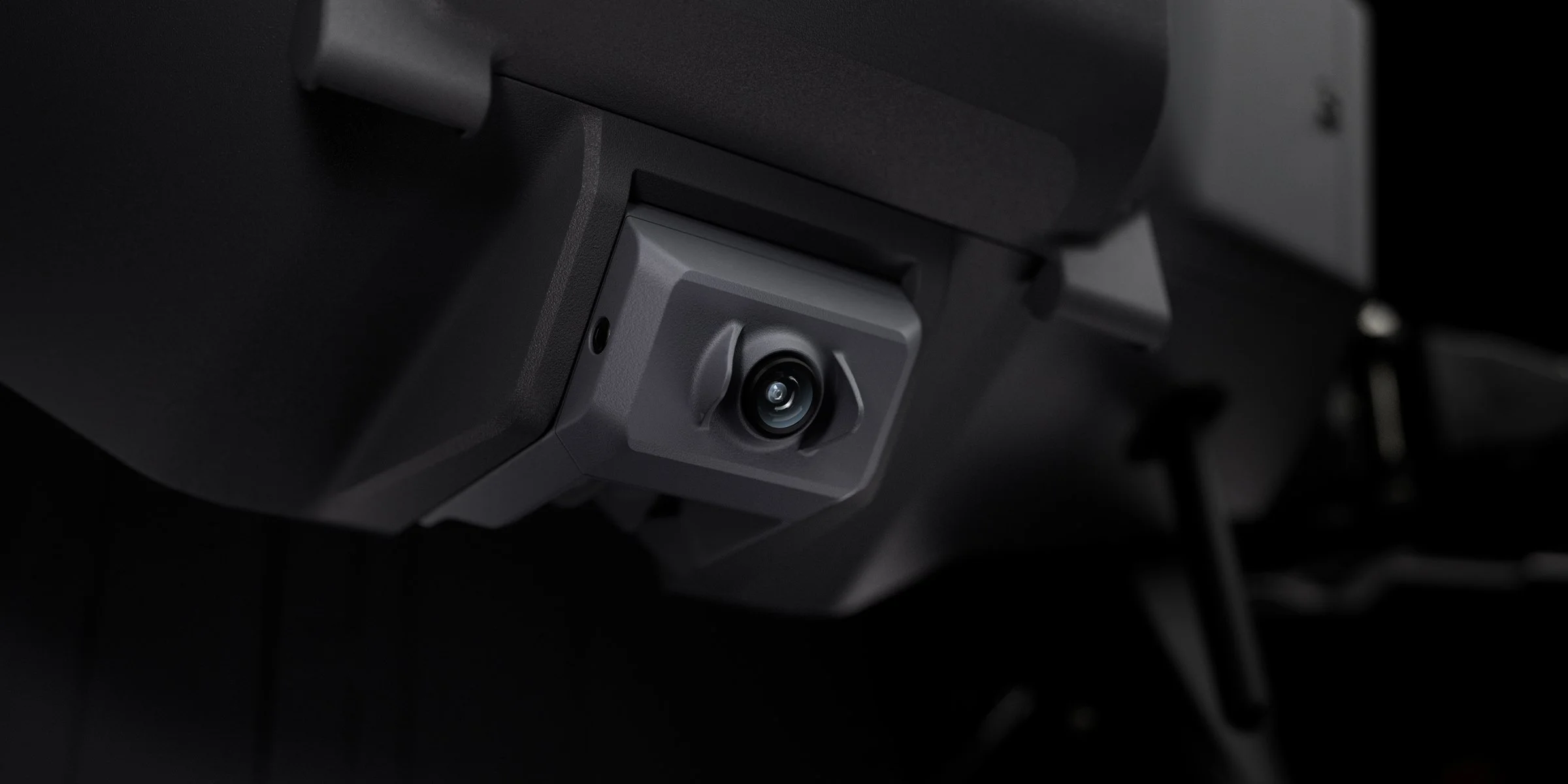

Tri-Vision Obstacle Sensing
High Flow Rate
40 L/min Flow Rate
Dual Atomization System
4-Sprinkler Kit (Optional)
All-Scenario Operation
Spraying • Spreading • Lifting
65 kg Lifting Capacity
Terrain Following
High-Speed Operation
20 m/s Max Speed
High-Efficiency Field Coverage
Optimised Mission Performance
Reliable Connectivity
O4 Transmission
Up to 2 km Operation Radius
Optional DJI Relay Support

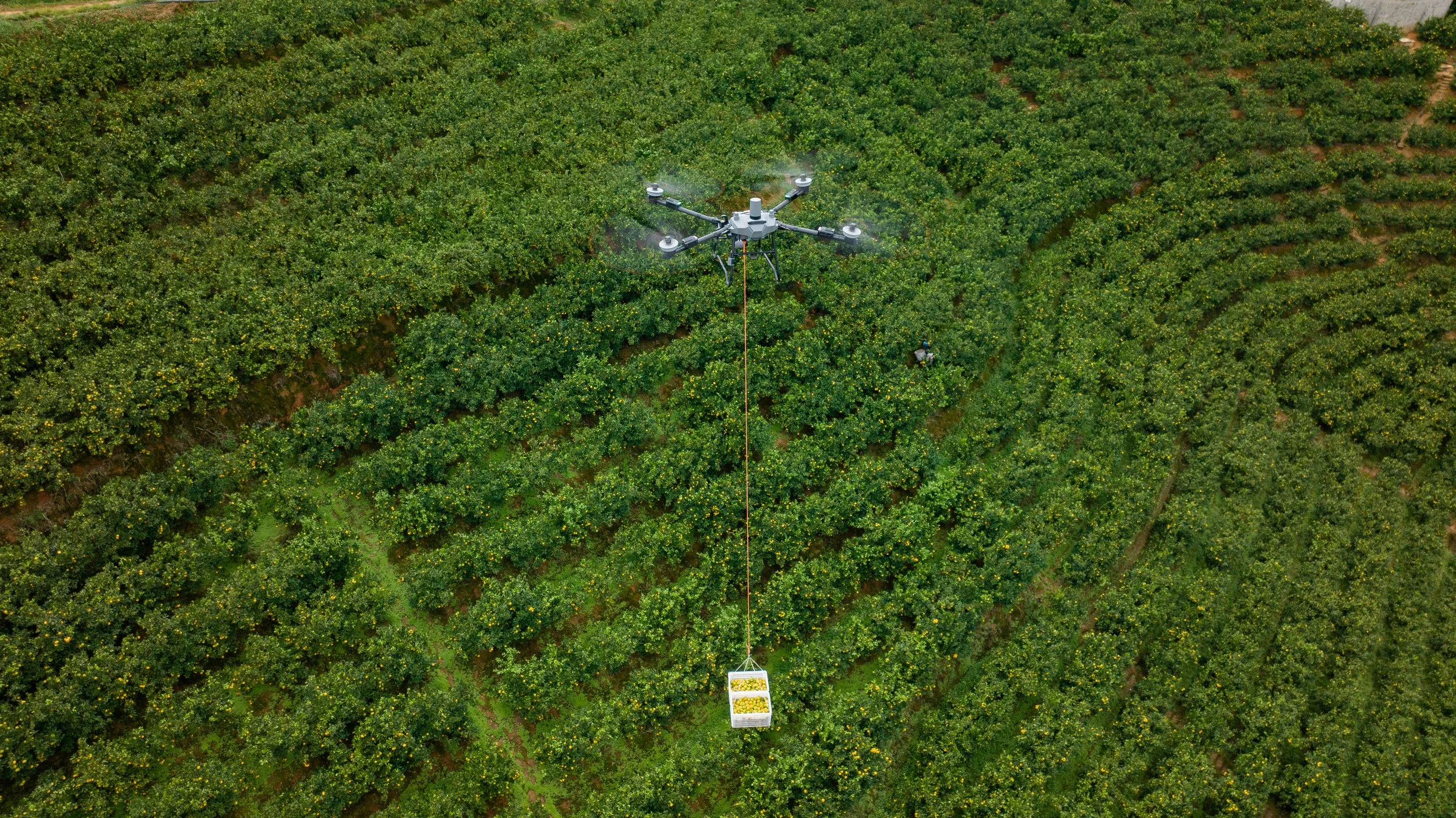

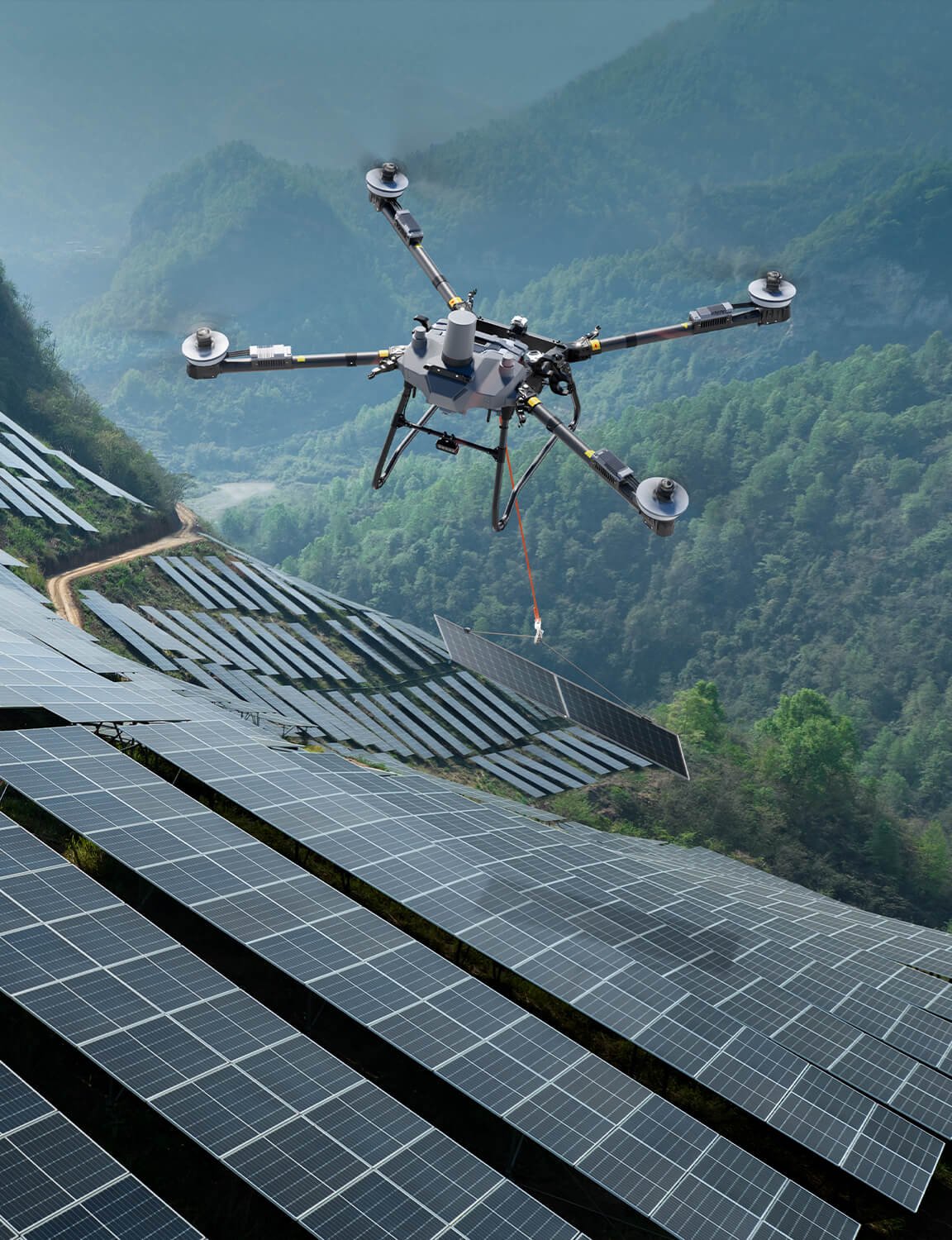

Lifting System
Your Transport Assistance

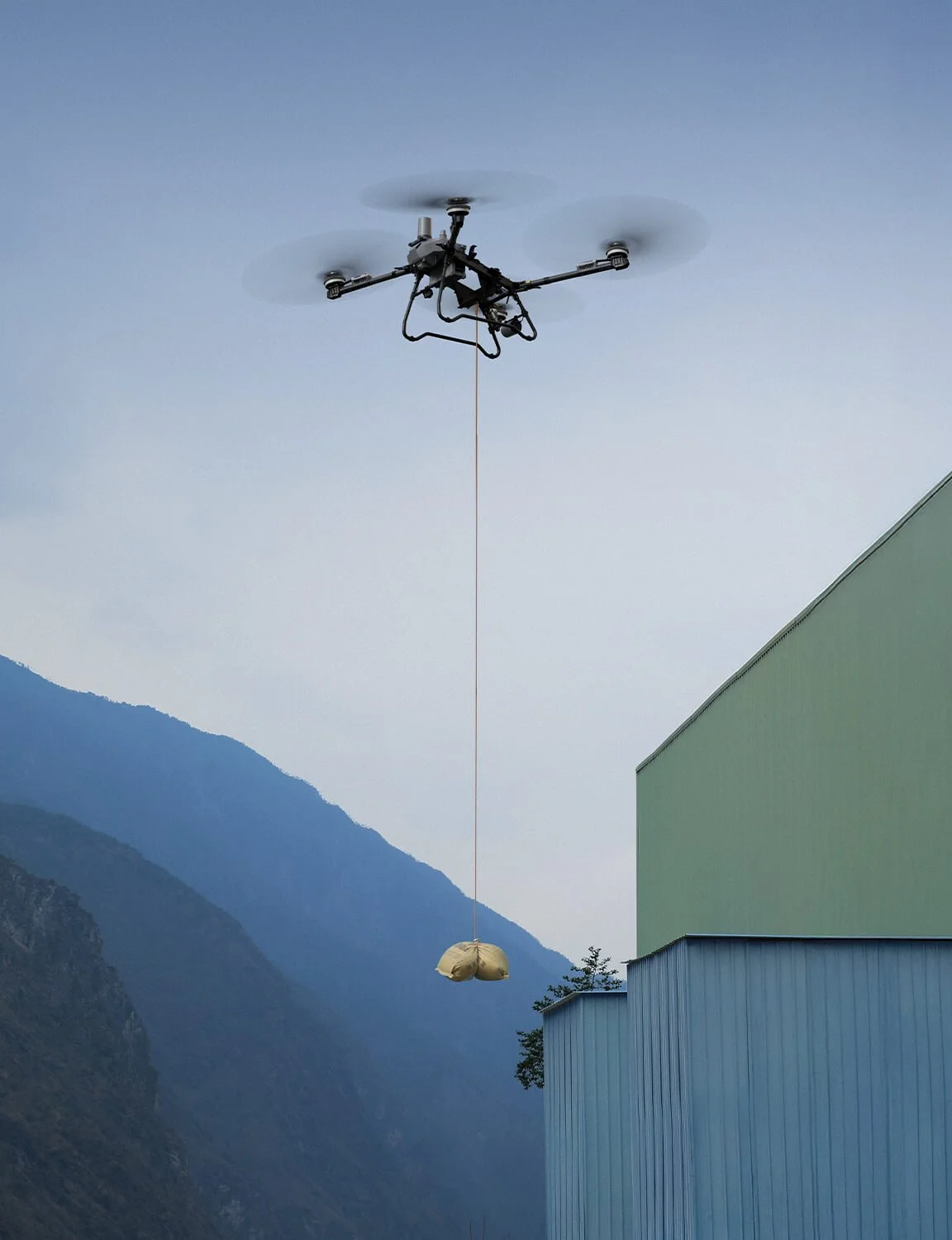

The T70P transforms into a transport solution with a lifting capacity of 65 kg[5] it carries more and travels further. Features like Auto Balance Control, weight detection, and automatic navigation to loading and unloading points make it adaptable to various agricultural transport scenarios.

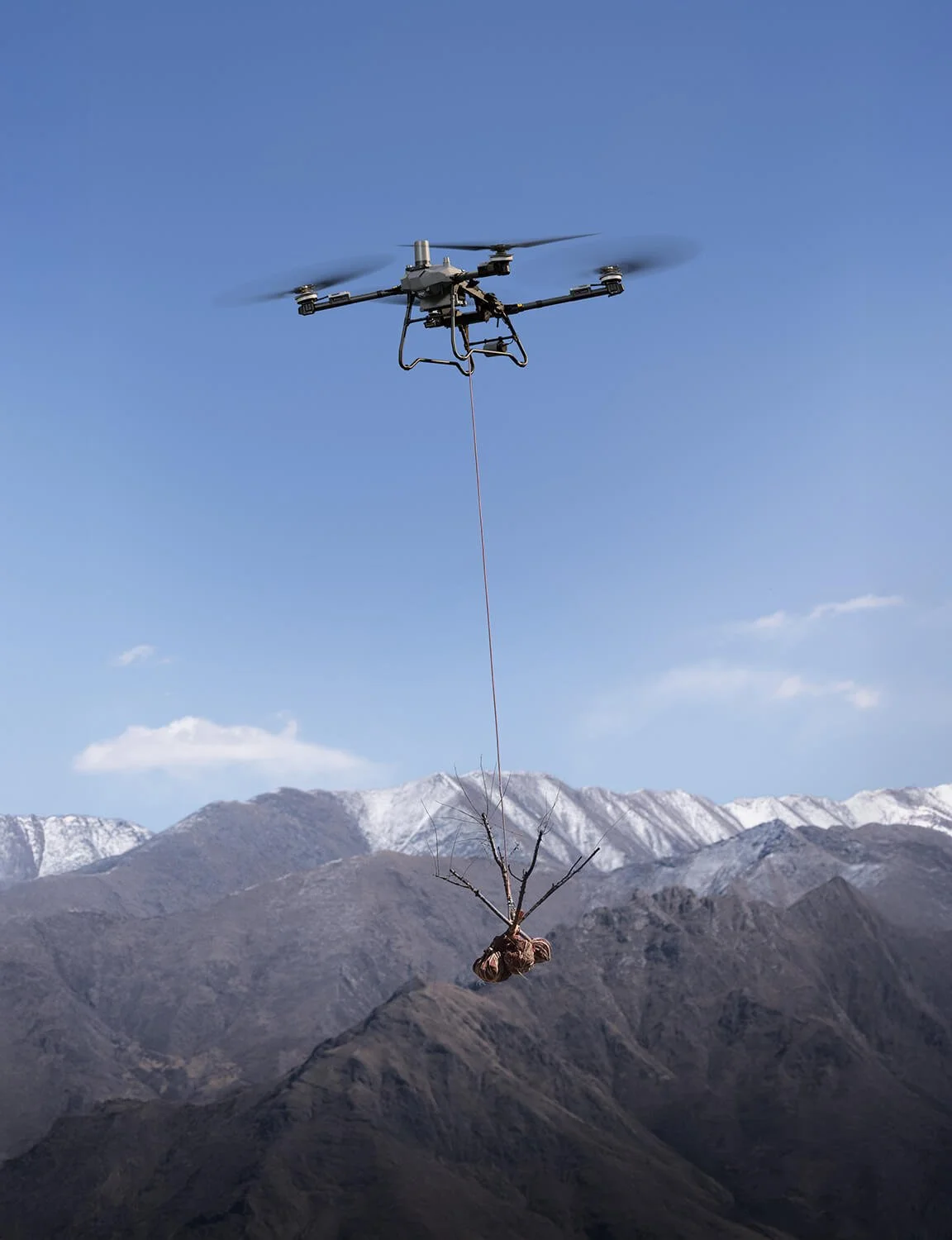

Saplings
Solar Panels

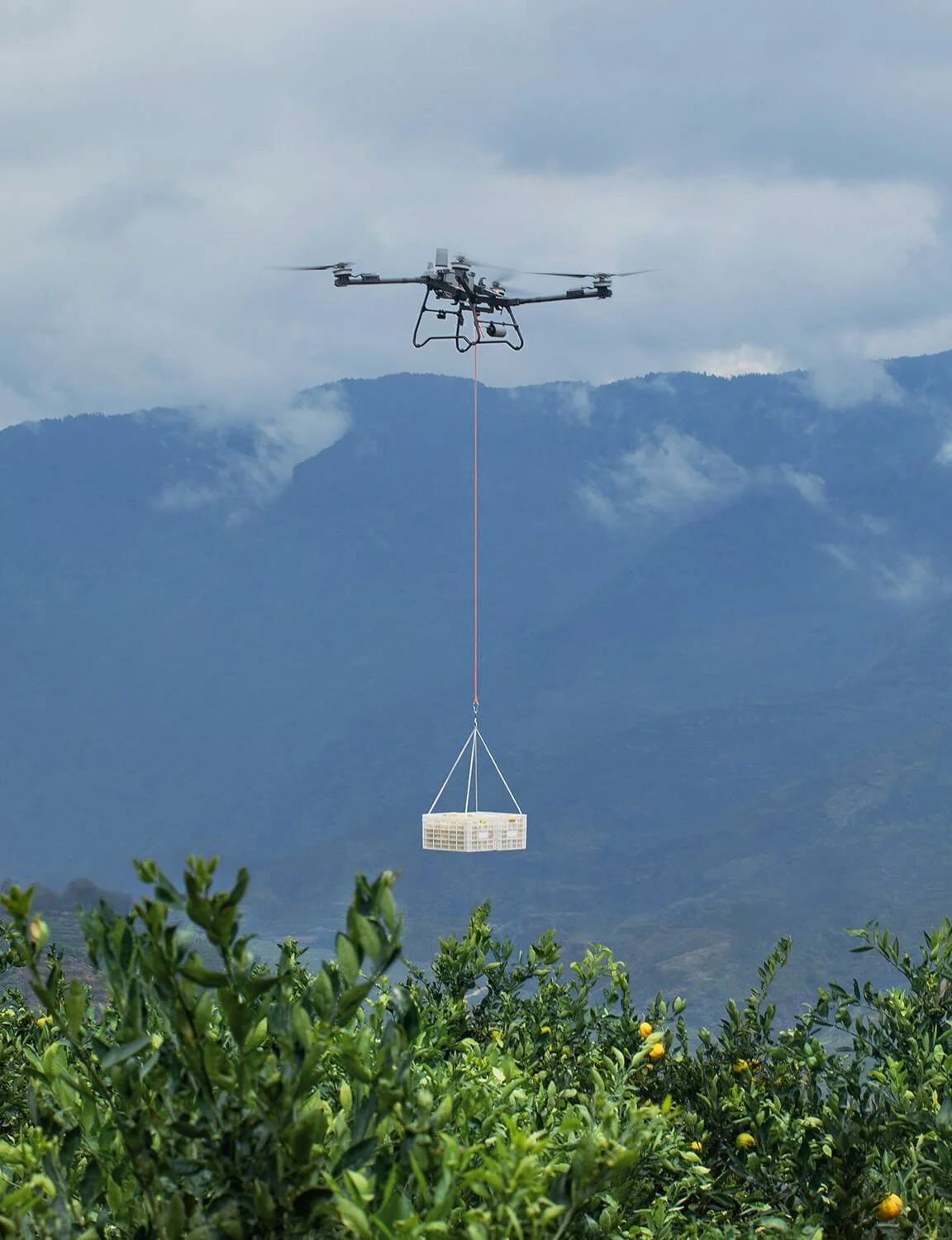

Fruits
Building Material
Spraying System
Efficient Operation, Outstanding Performance.
The T70P comes equipped with a 70 L tank and dual atomization centrifugal sprinklers, offering high flow rates for faster flight speeds and greater operational efficiency in field applications. Orchard users can choose an optional mist sprinkler set, which upgrades both flow rate and atomization effects, ensuring thorough penetration even through dense canopies and tall plants.

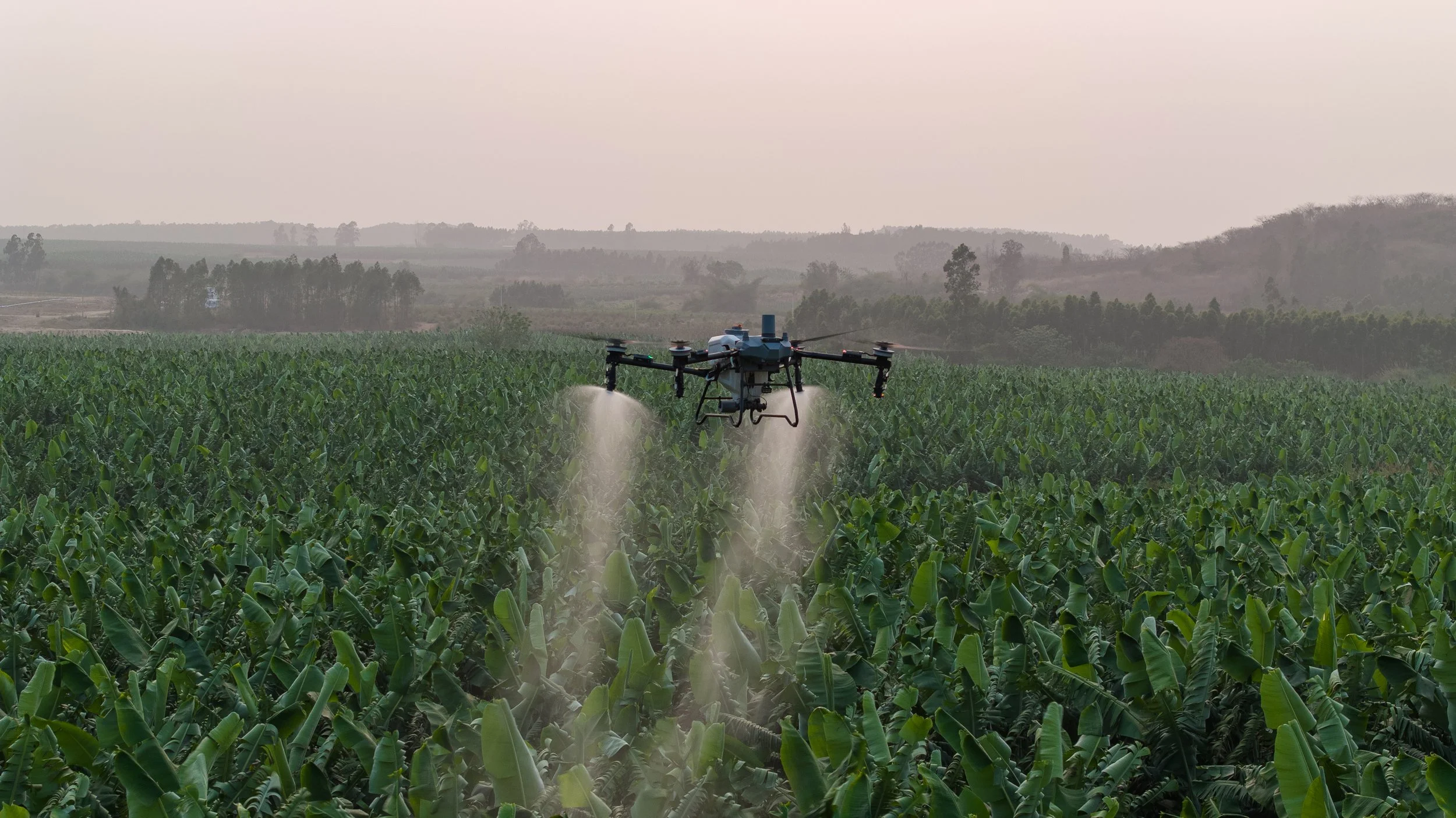

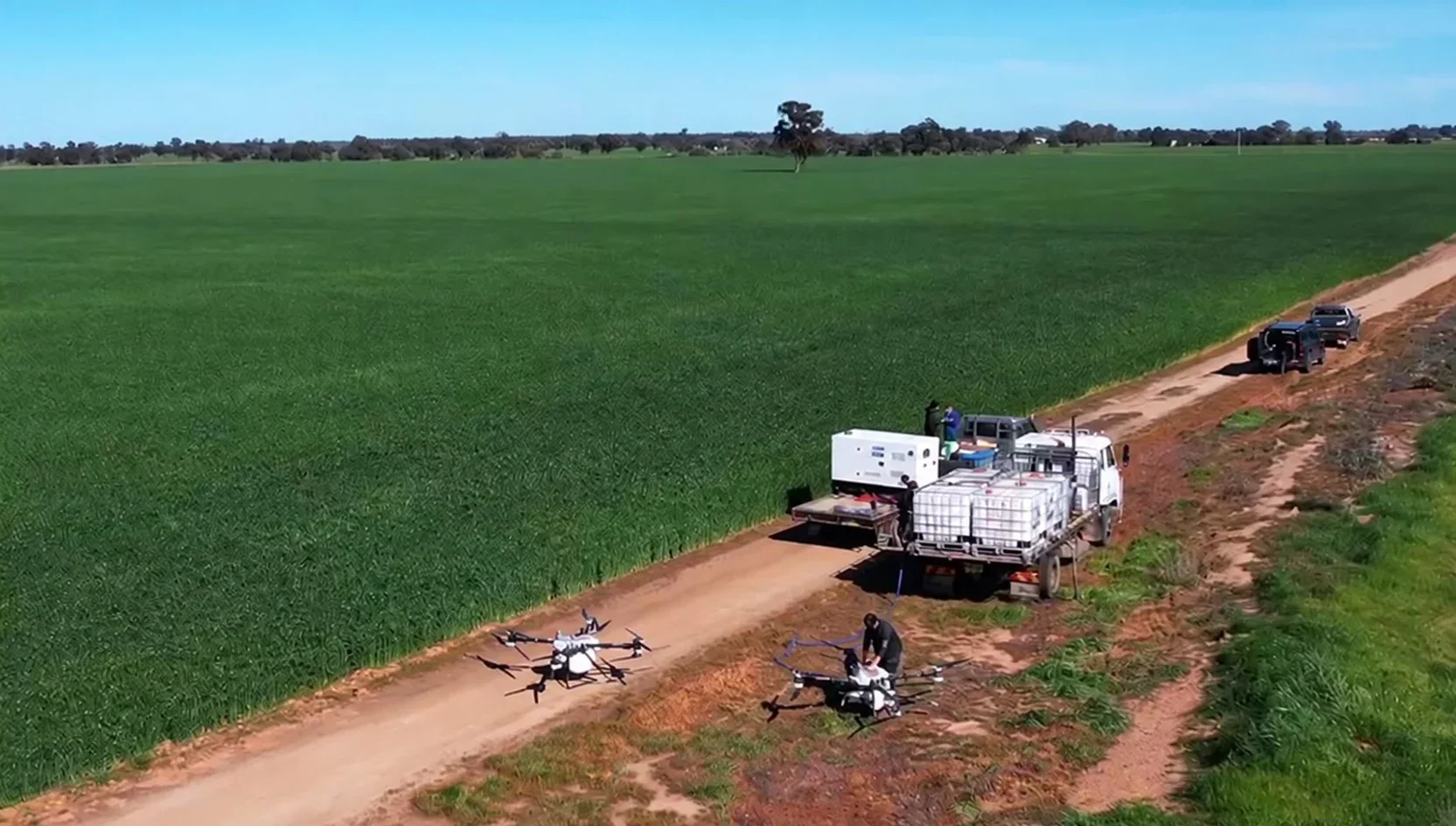

Field Operations

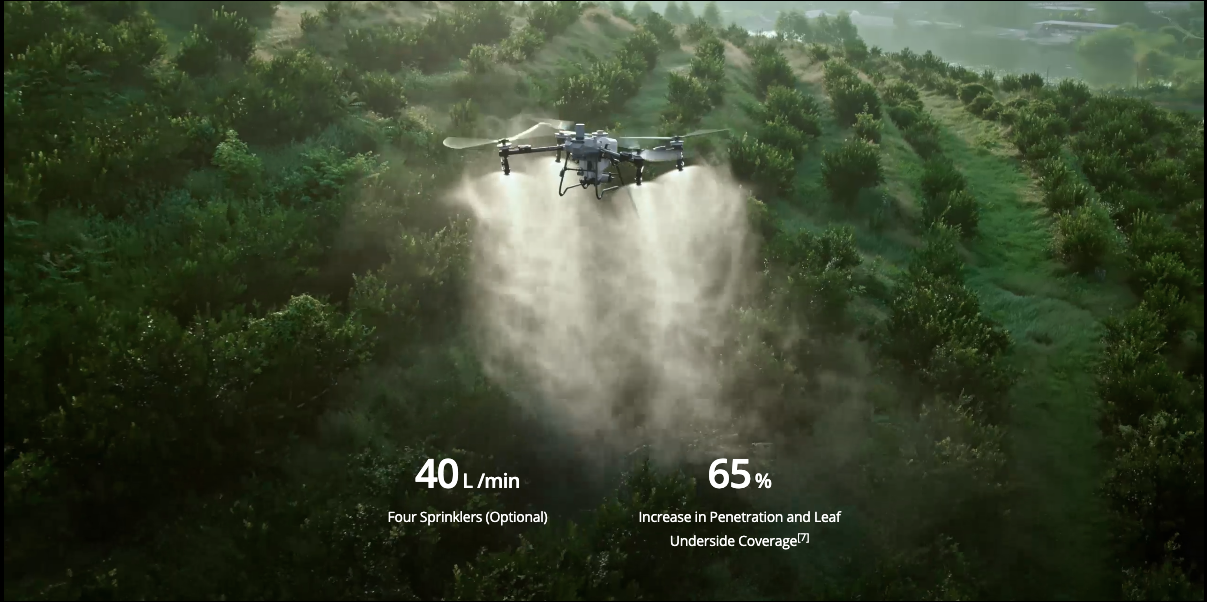

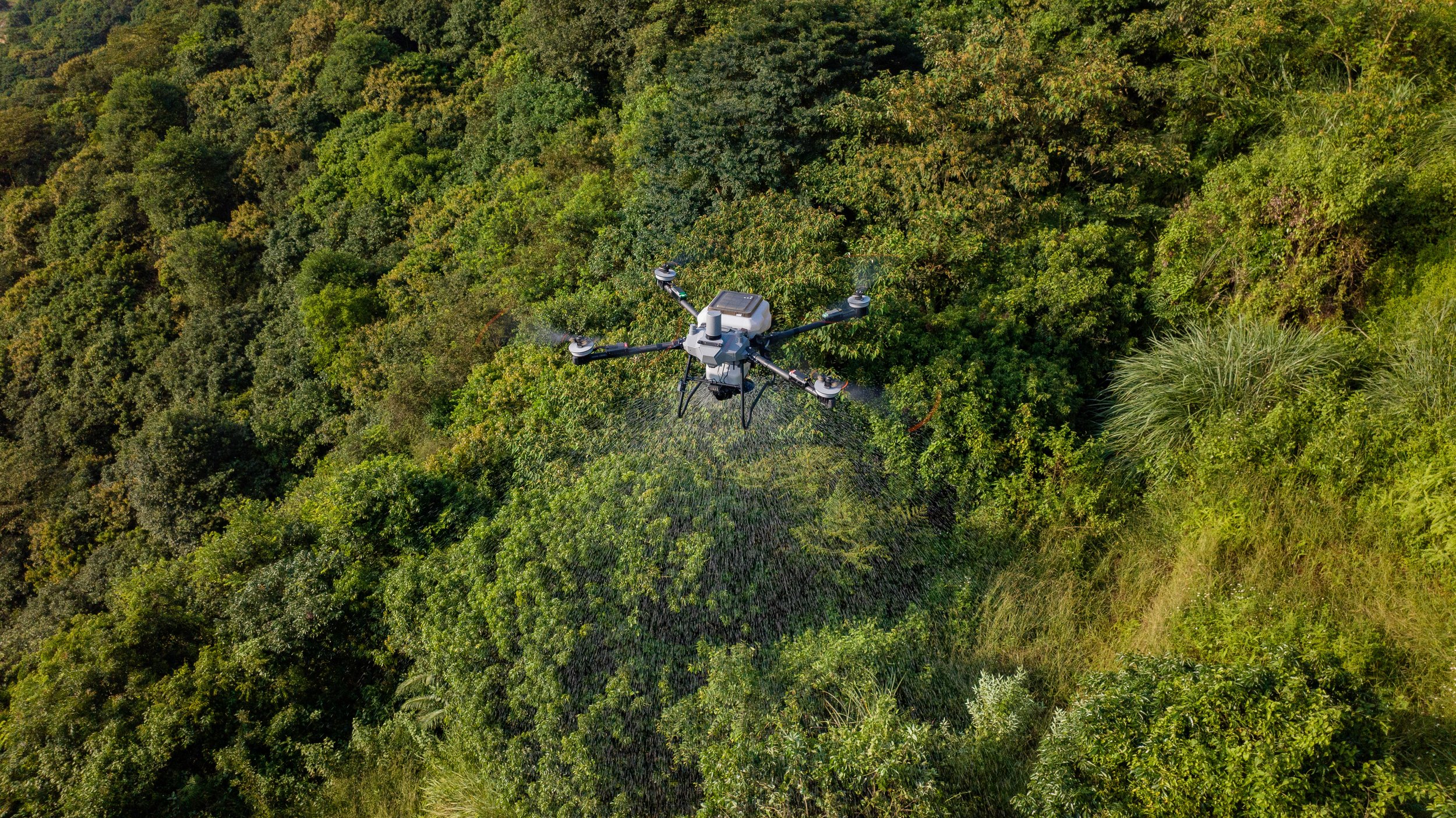

Orchard Operations

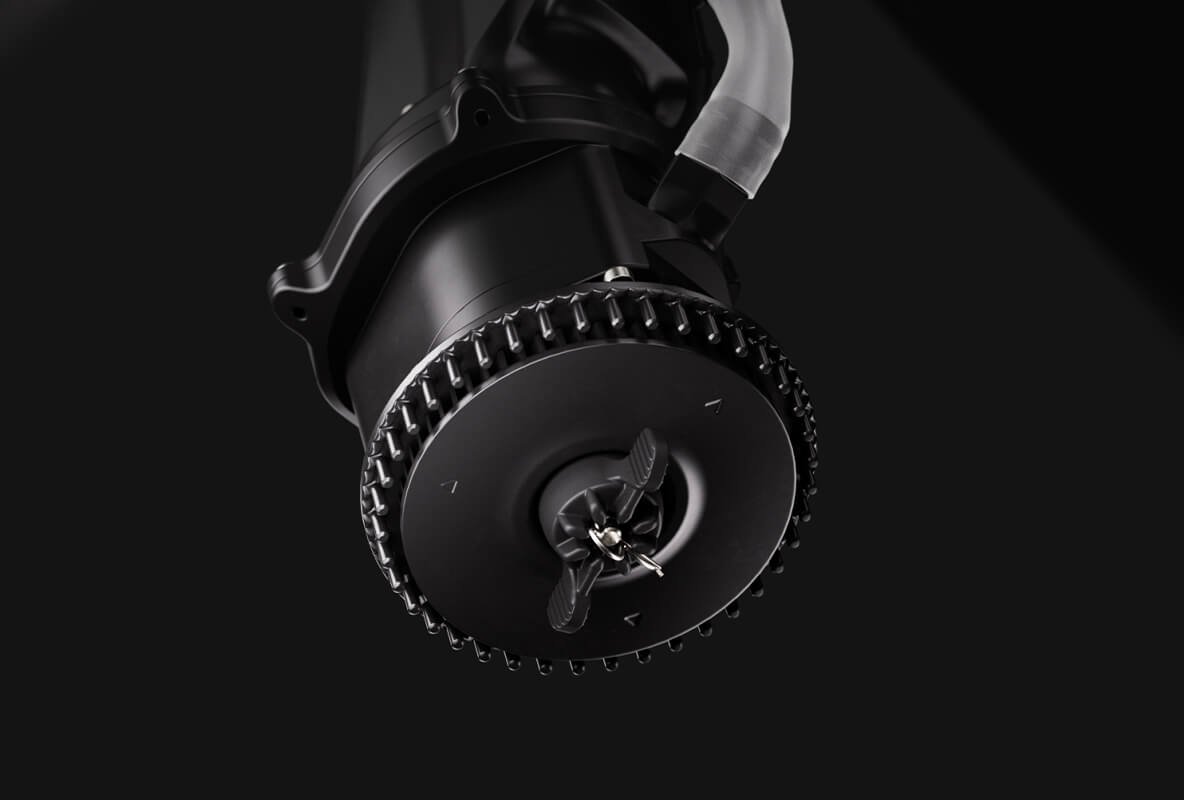

Water-Cooled Mist Sprinklers (Optional)
Fine droplets as small as 50 μm [23]penetrate canopies effectively, ensuring thorough leaf coverage. The newly designed liquid flow path rapidly dissipates heat generated by dual centrifugal motors, enhancing durability and extending the system's lifespan.

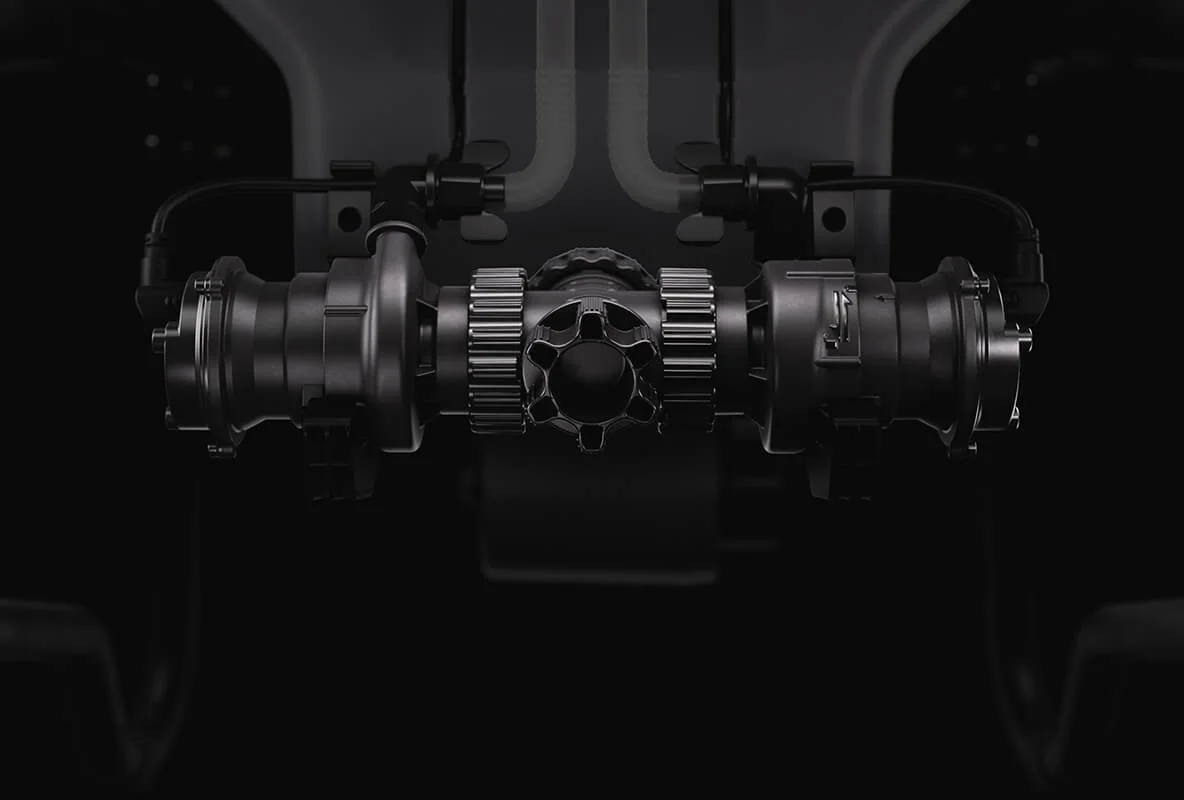

Magnetic Drive Impeller Pumps
Corrosion-resistant, stable, and reliable, an optimized impeller structure and increased chamber volume meet the high flow demands of orchard scenarios.

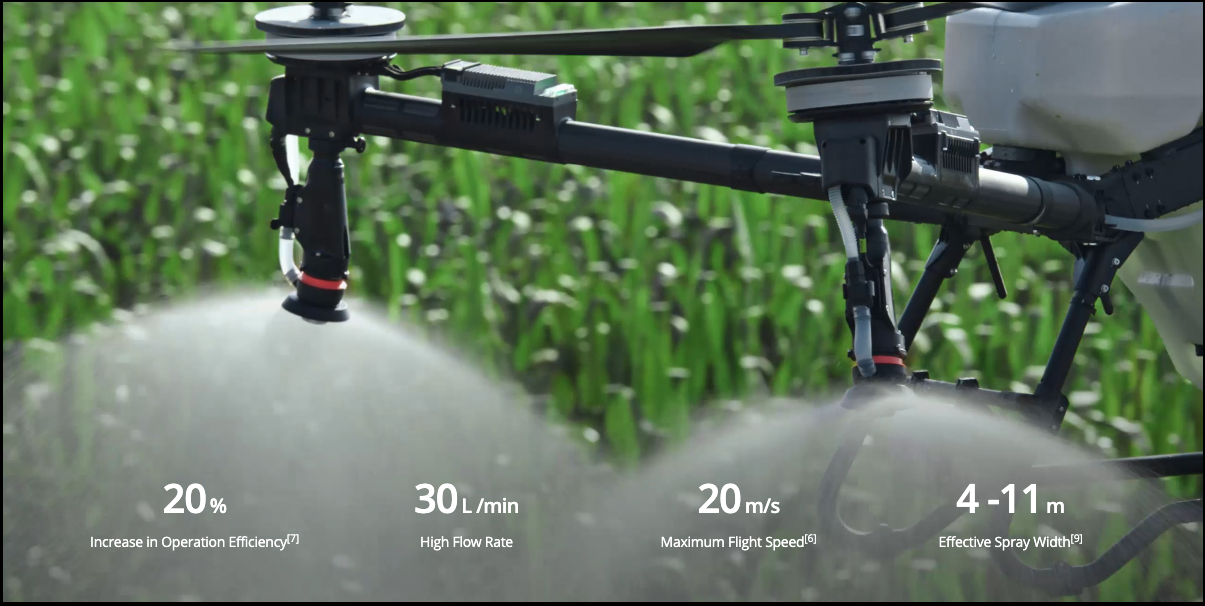

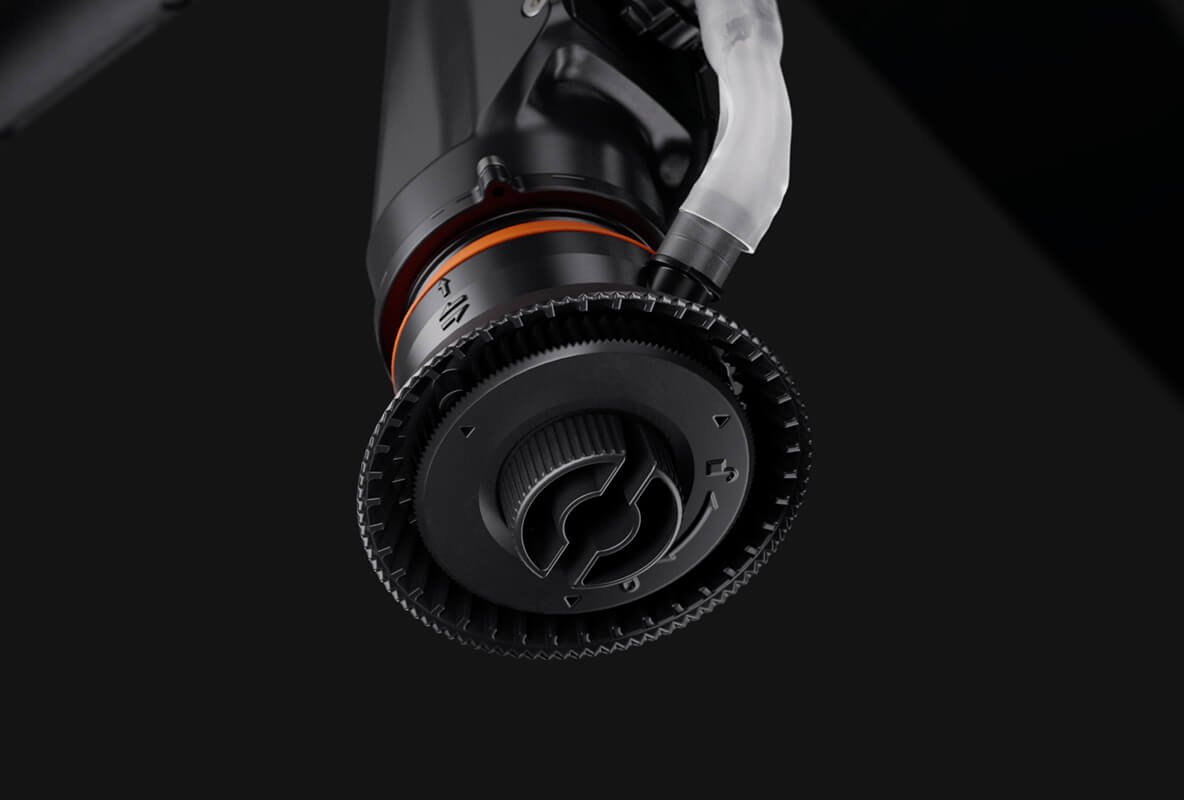

Dual Atomization Centrifugal Sprinklers
New flow path design, dual spinklers support a maximum flow rate of 30 L/min, Particle size range of 50-500 μm[8], suitable for most operational scenarios.

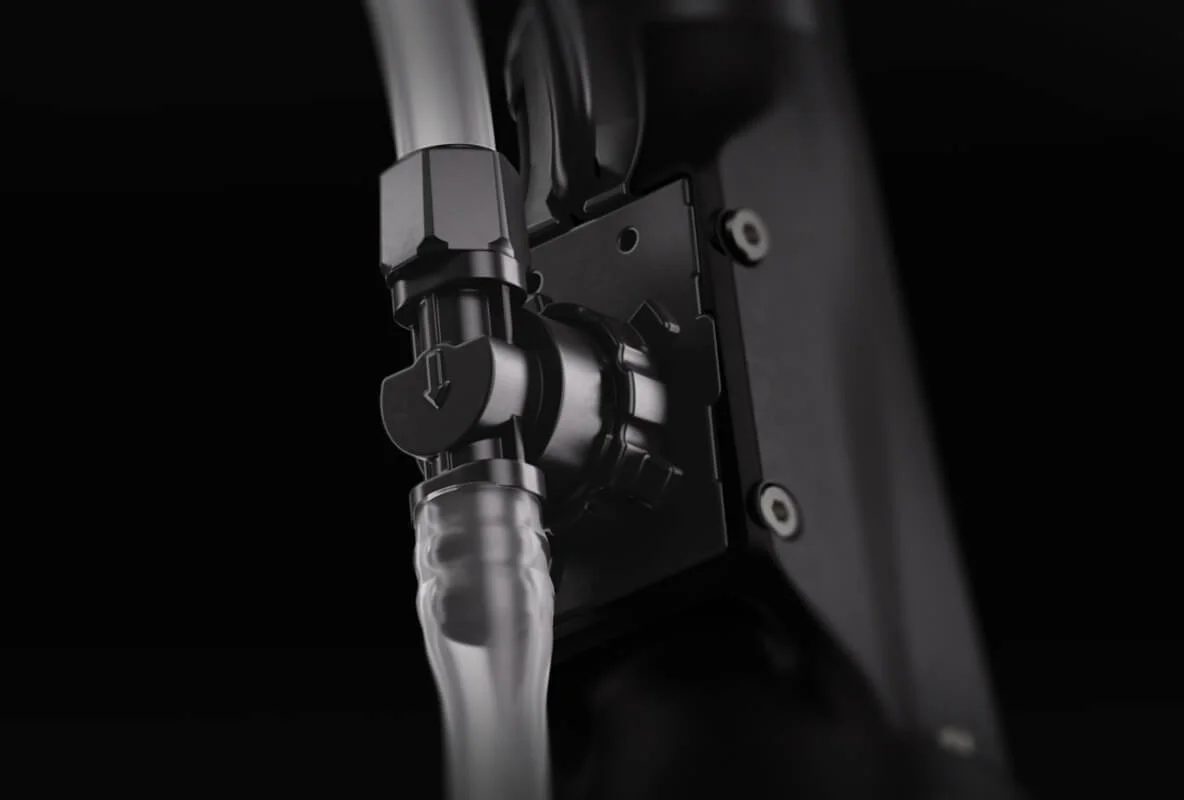

Solenoid Valves
Precision starting and stopping eliminates leaking.

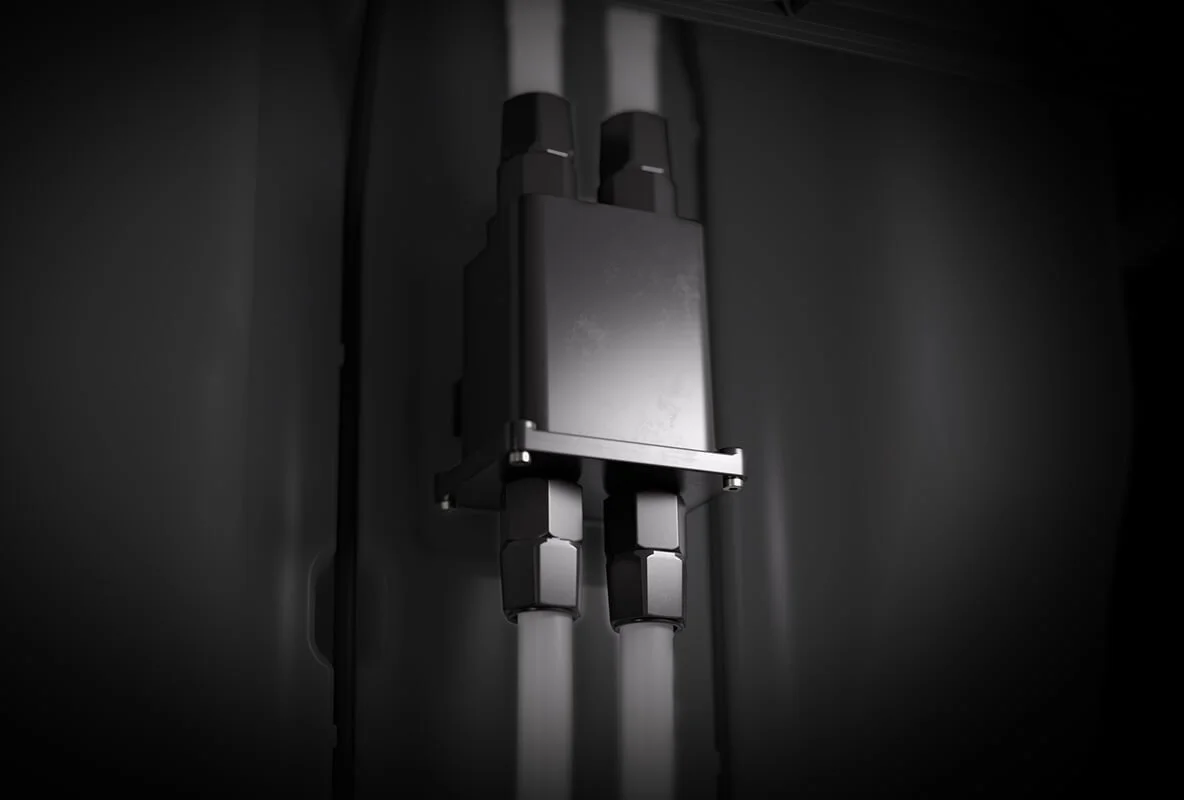

Dual-Channel Electromagnetic Flow Meter
Real-time precise flow detection and dynamic control ensures high-precision operations. It avoids direct contact with the liquid, preventing corrosion and enhancing durability.
Spreading System
Outstanding Efficiency and Performance

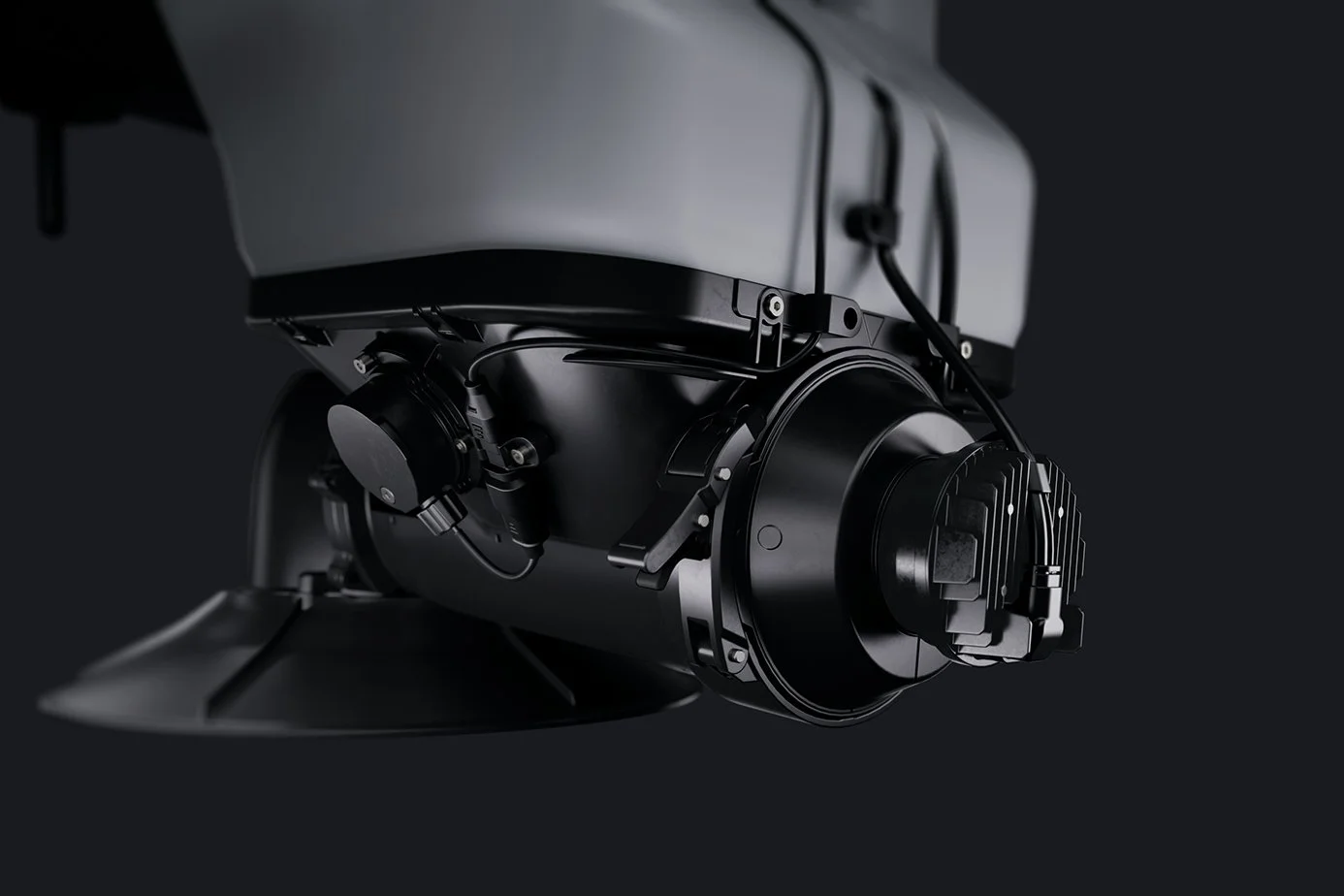

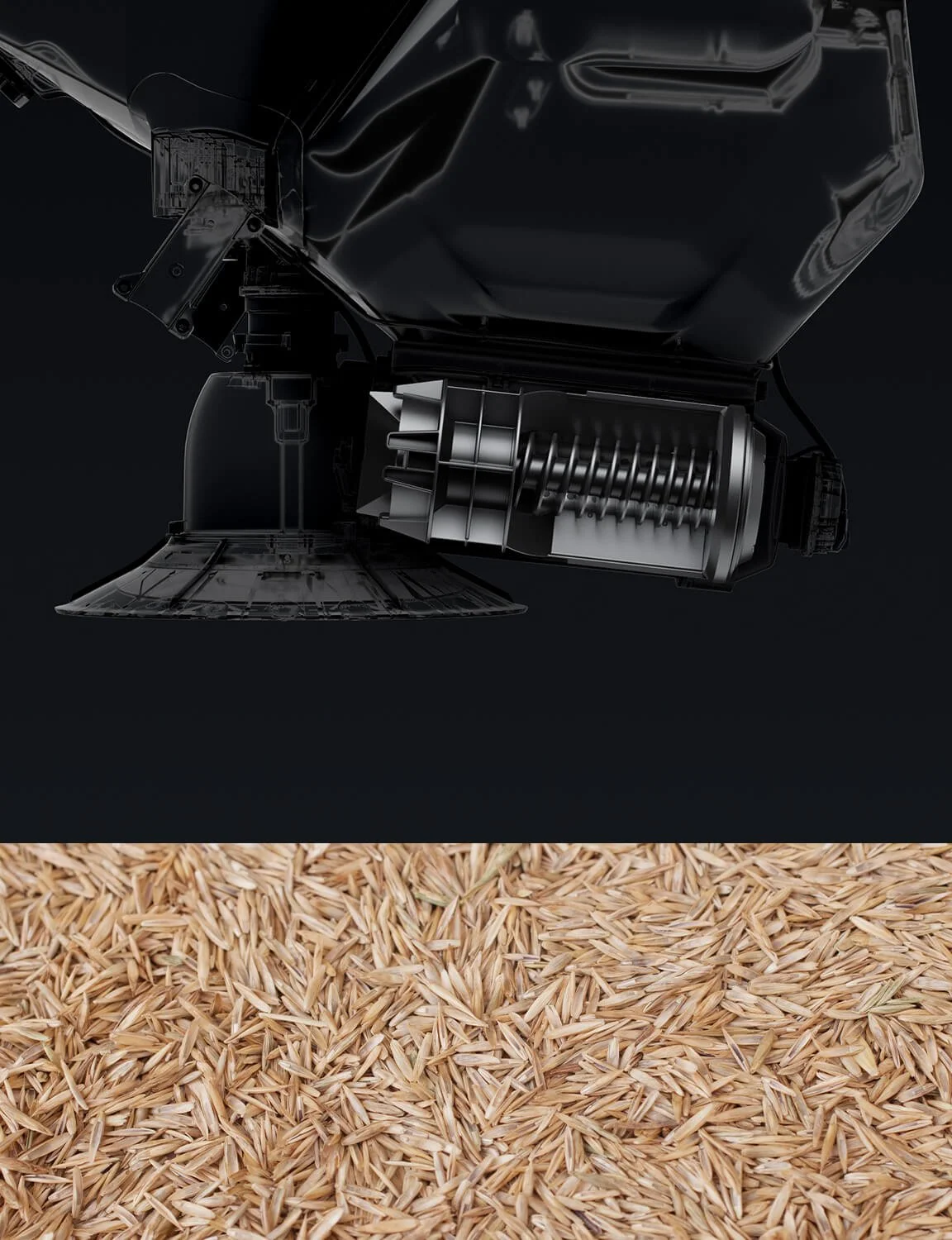

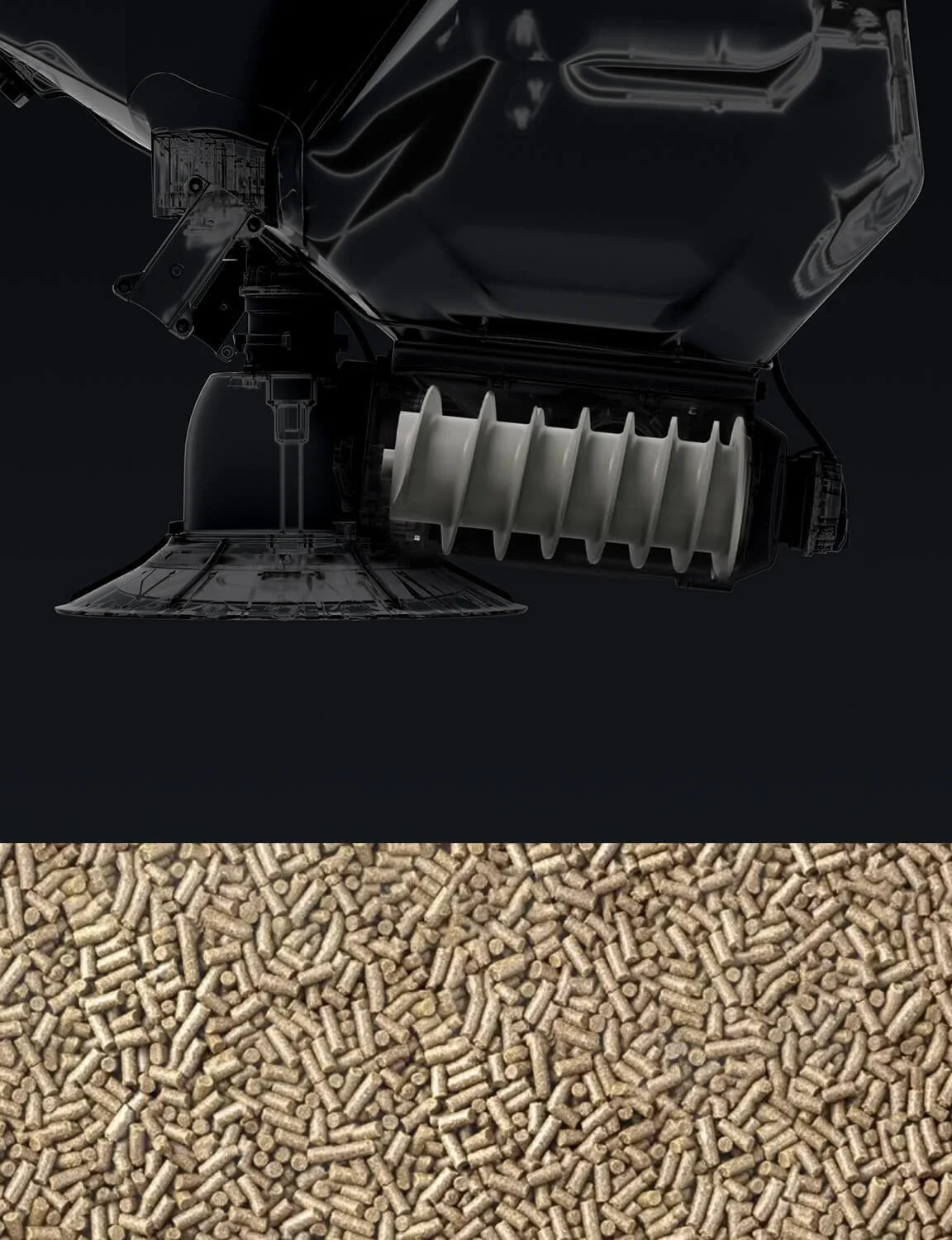

Brand-New Screw Feeder
Spreading accuracy doubled, flow rate increased by 270%[7], and granulars applicability further enhanced.

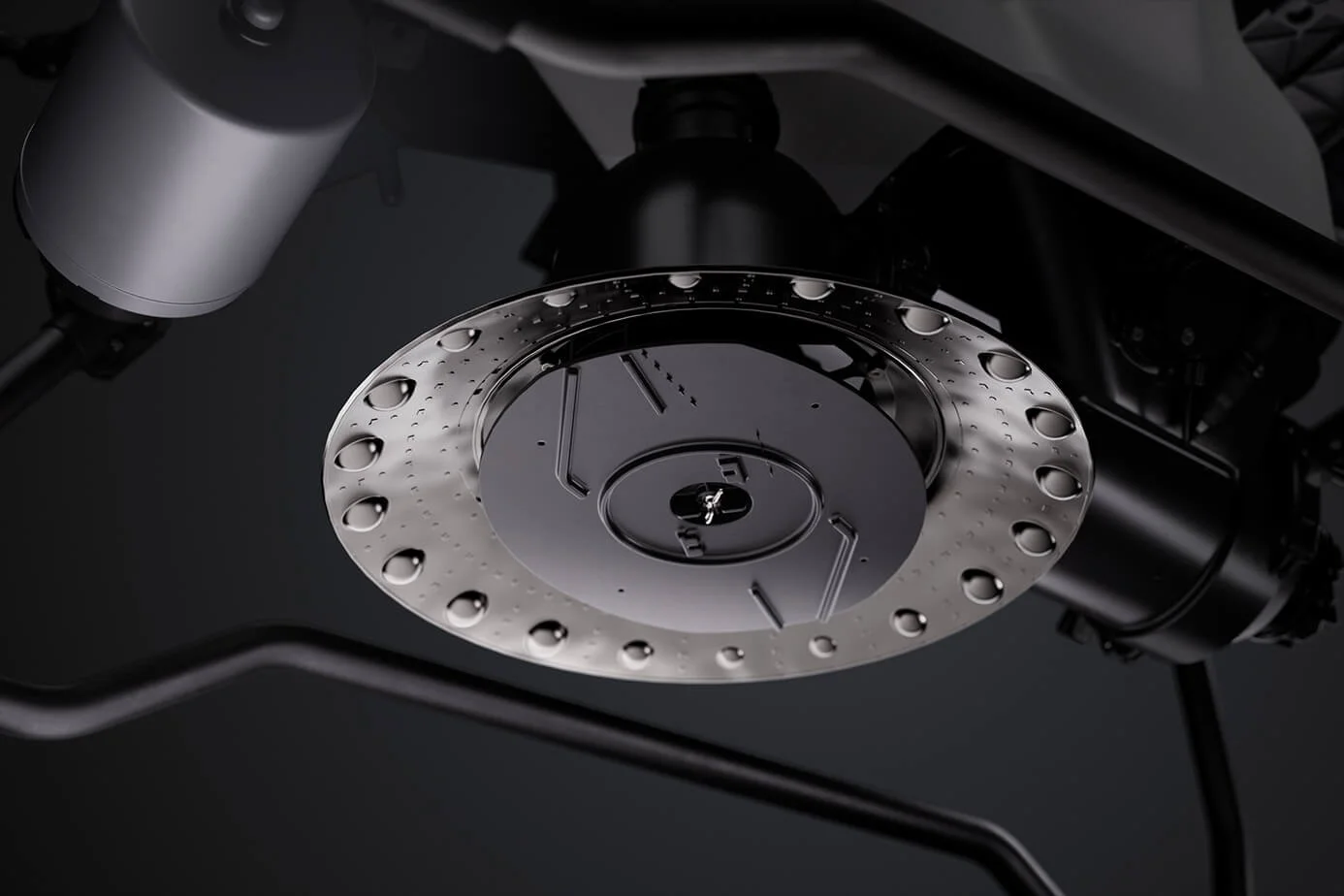

Centrifugal Spreader Disc
Ensures uniform spreading across the entire flow range with outstanding results. Features a stainless steel cap for durability and strength.

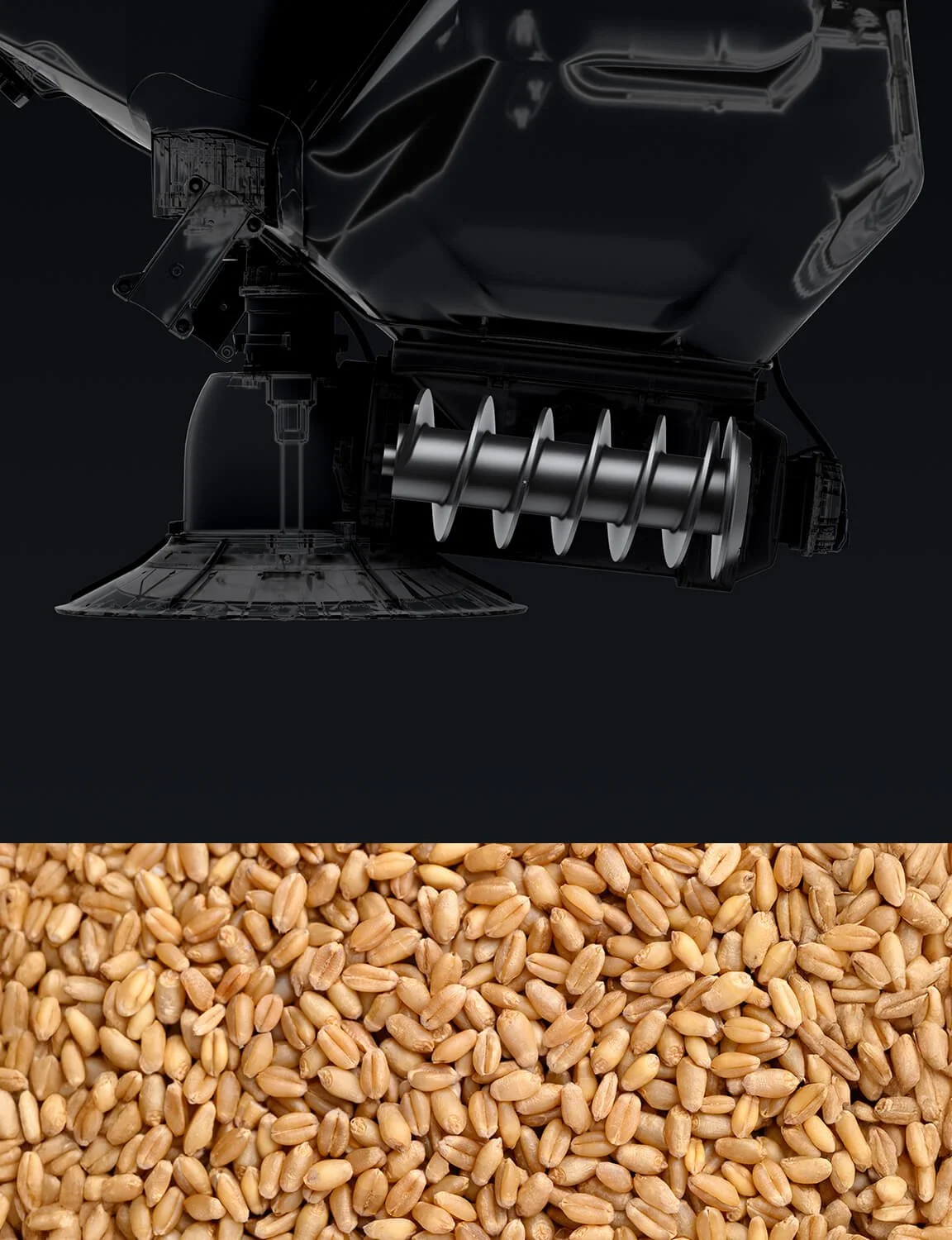

Extra-Large Feeder
Suitable for granulars such as fertilizers, wheat seeds, granular fungicides, feed, etc.
Recommended application rate: 75-750 kg per hectare.
Recommended particle size: 0.5-10 mm

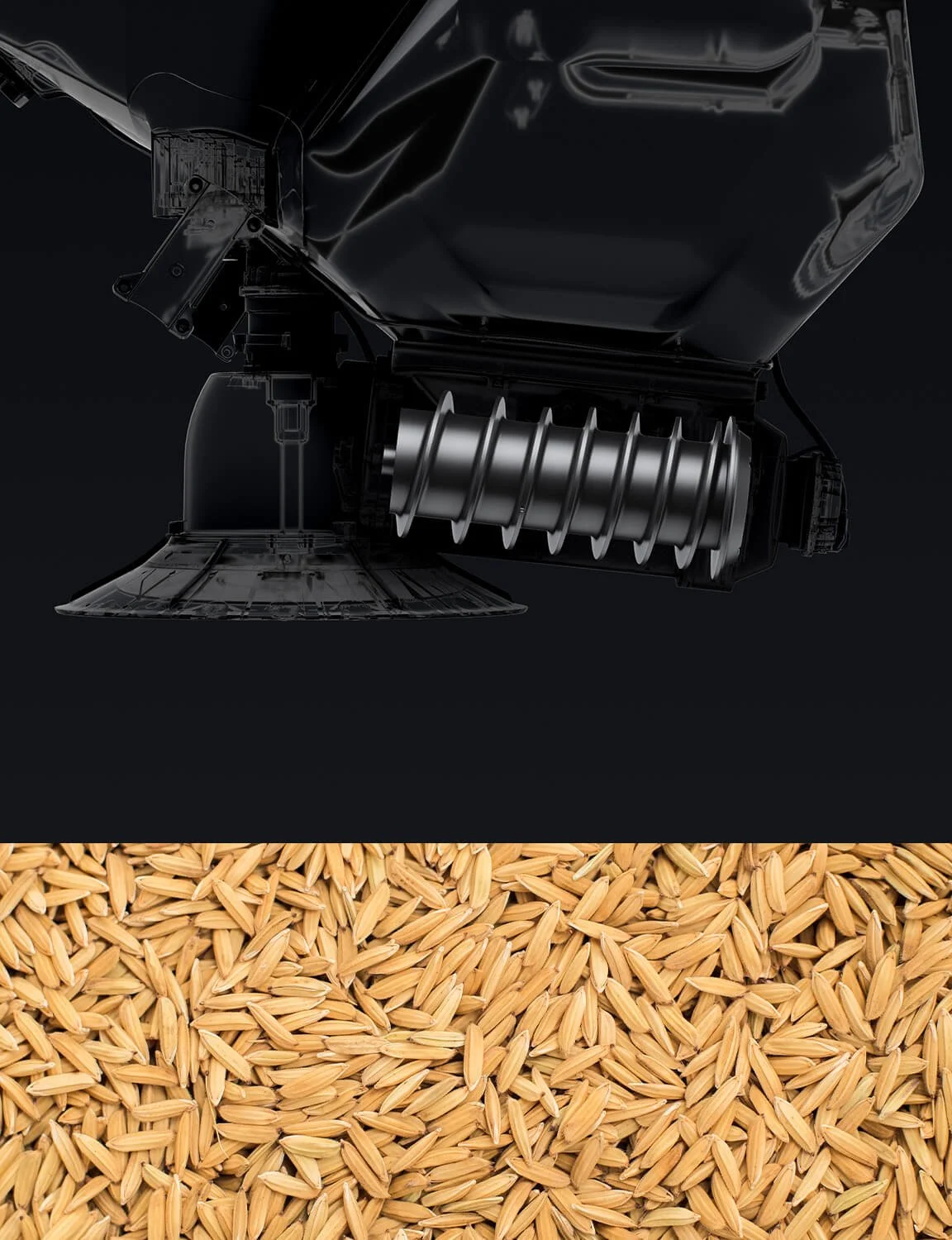

Large Feeder (Optional)
Suitable for granulars such as rice seeds, cover crop seeds, etc.
Recommended application rate: 75-270 kg per hectare.
Recommended particle size: 4-10 mm
Medium Feeder
Suitable for granulars such as rice seeds.
Recommended application rate: 22.5-120 kg per hectare.
Recommended particle size: 4-6 mm

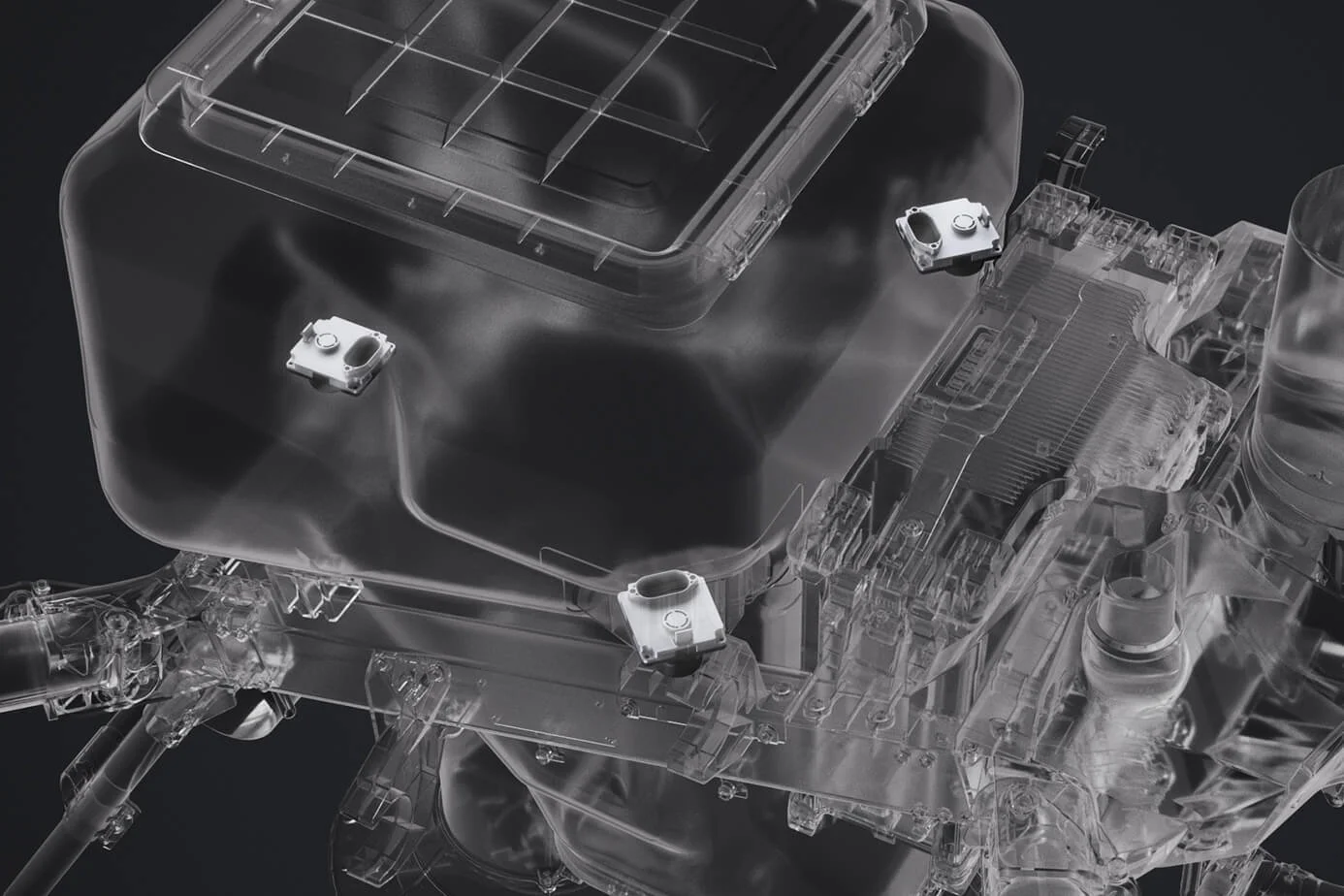

High-Precision Weighing Sensor
Provides real-time, accurate granulars quantity display for precise usage and refilling, effectively minimizing waste. It also supports automatic flow calibration and cloud-based storage of operation templates, ensuring precise and convenient spreading.

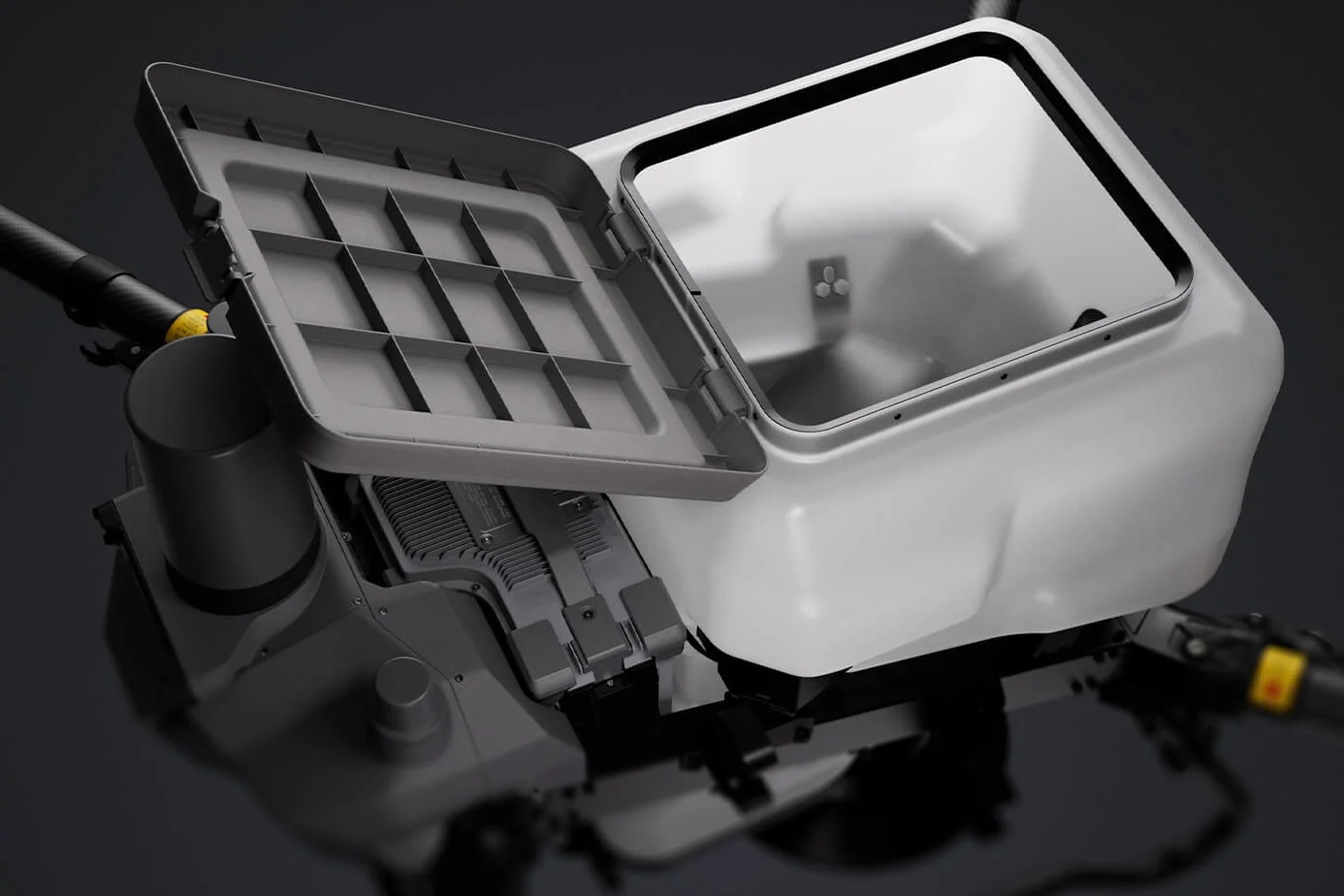

Large Loading Gate
Allows for easy and convenient bulk loading.
Medium-Small Feeder (Optional)
Suitable for granulars such as aquatic feed and other high-volume, small-particle materials.
Recommended application rate: 22.5–120 kg per hectare.
Recommended particle size: 0.5-2 mm

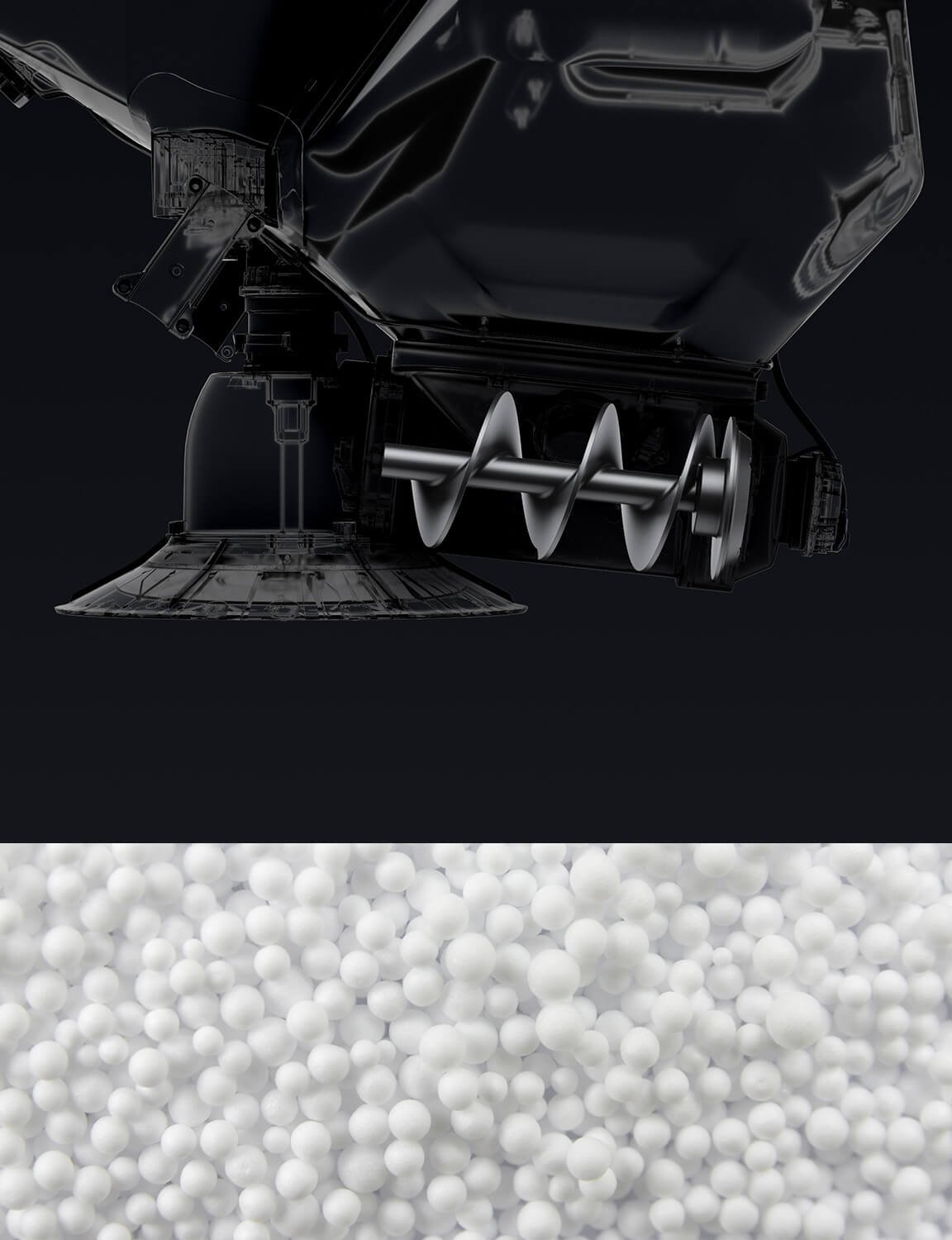

Small Feeder (Optional)
Suitable for granulars such as rapeseed, granular herbicides, grass seeds, granular insecticides, etc.
Recommended application rate: 3-22.5 kg per hectare.
Recommended particle size: 0.5-4 mm
Safety System

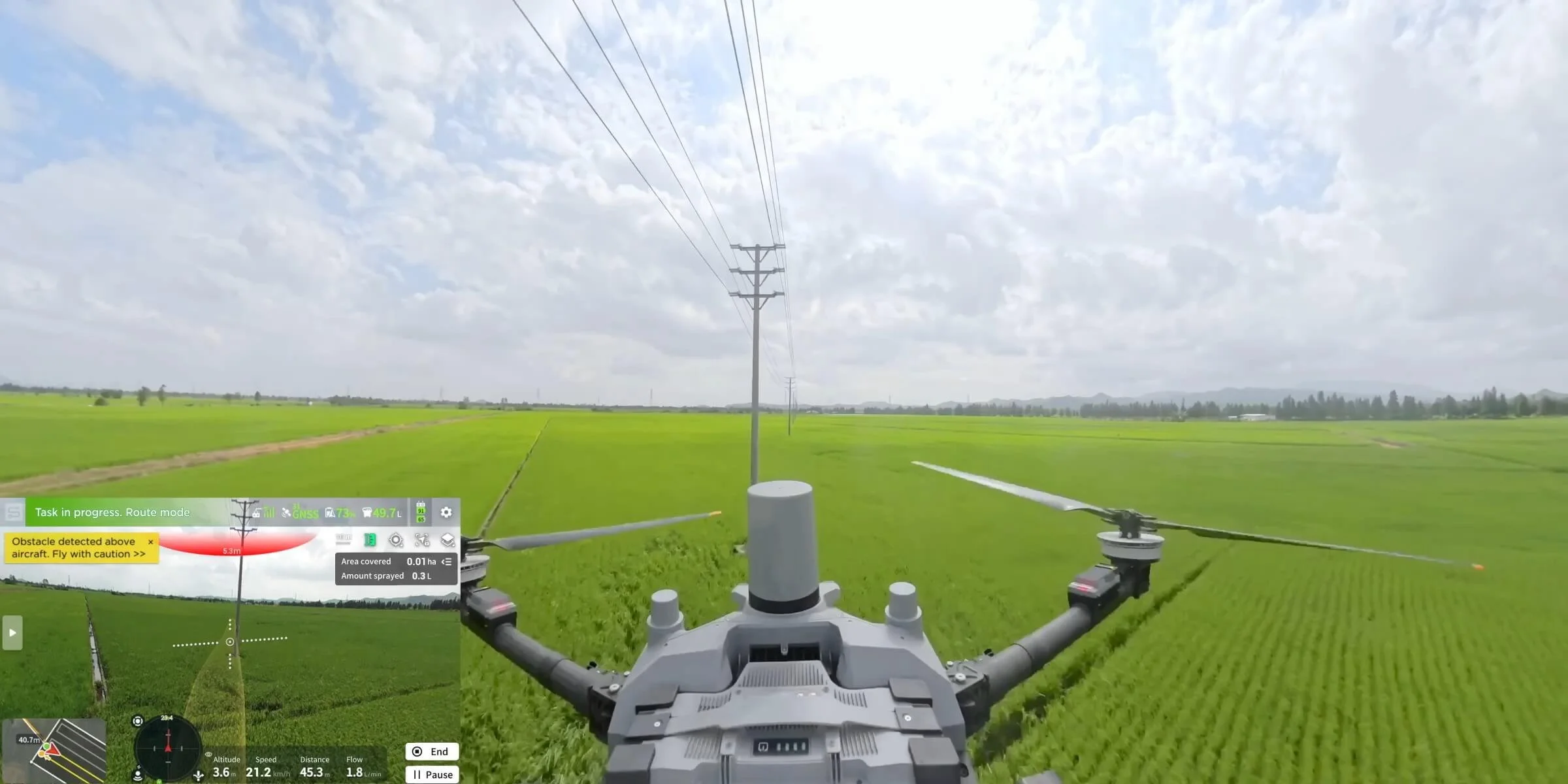

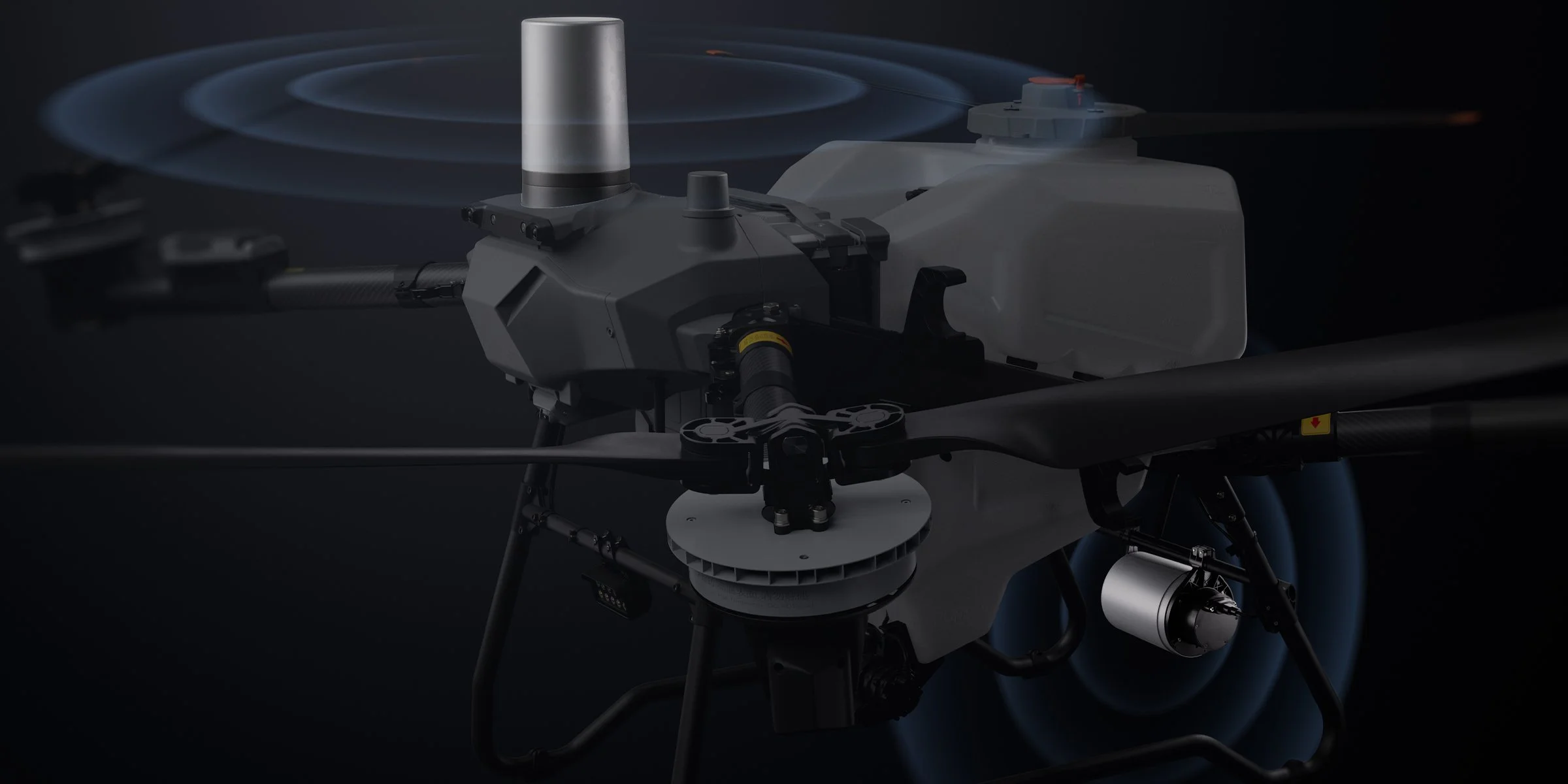

Obstacle Avoidance, AR Enhanced Display

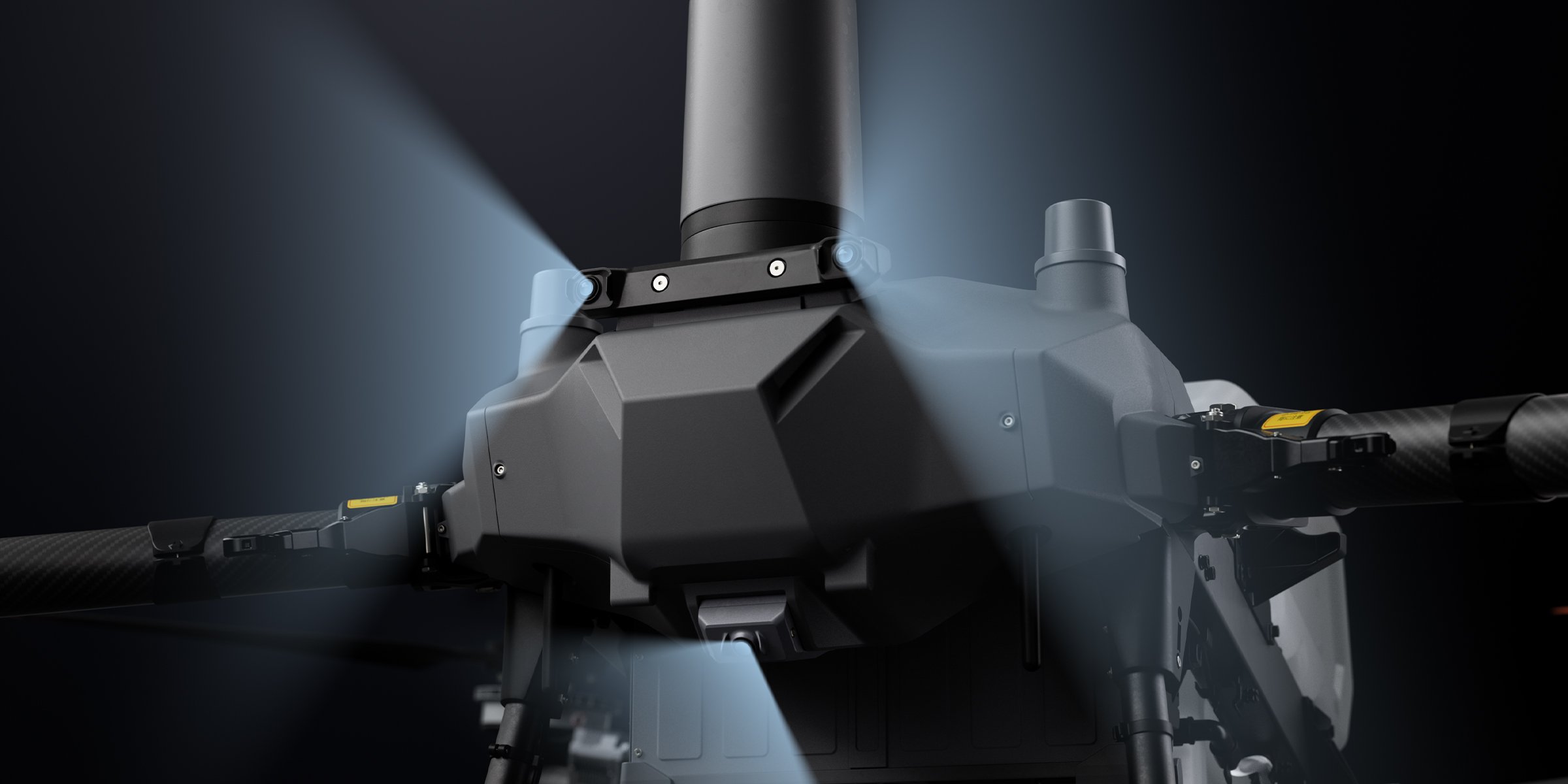

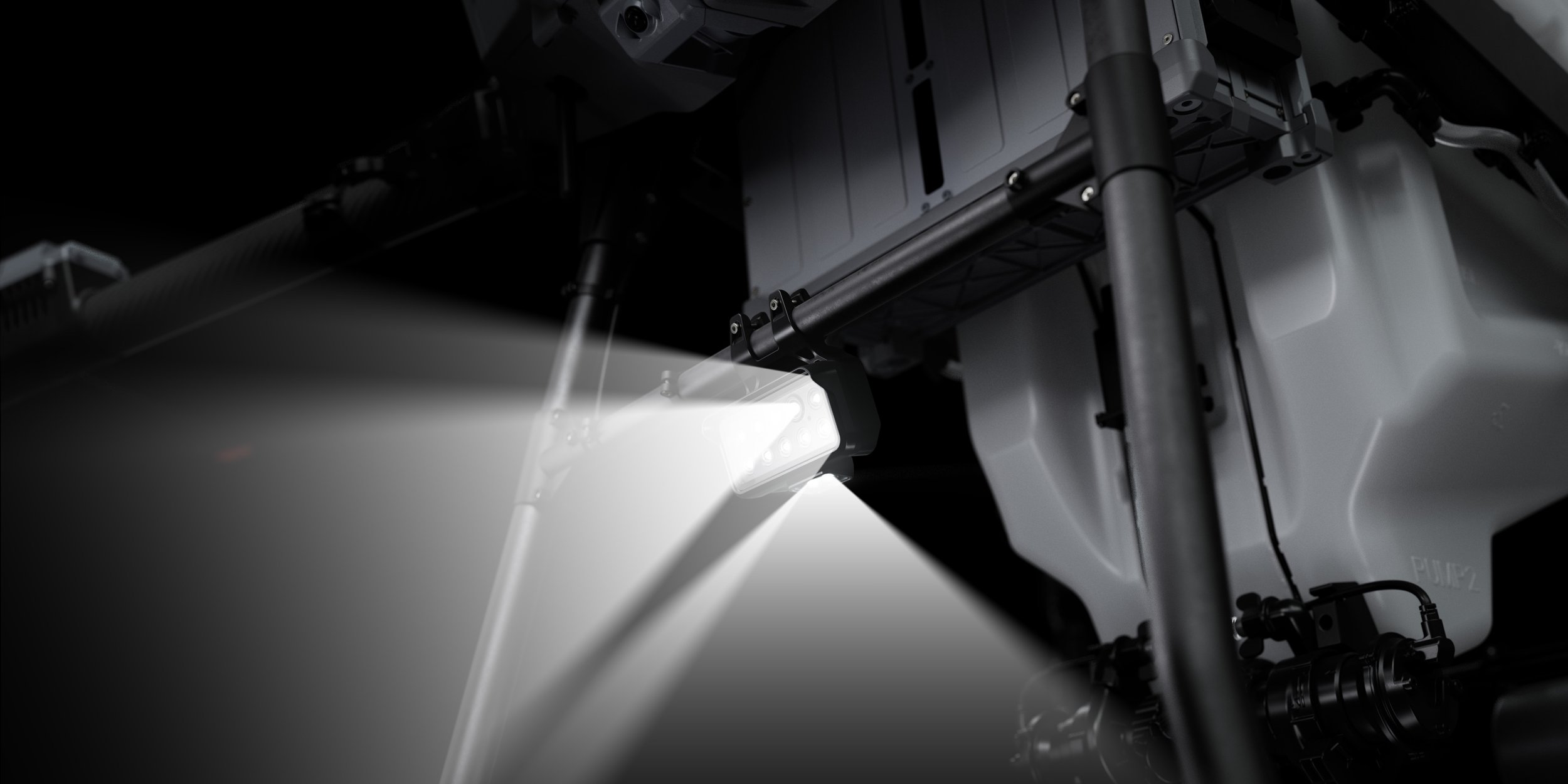

The T70P is equipped with intelligent obstacle avoidance and AR-enhanced display. With Safety System 3.0, its radar and vision systems work together with upgraded algorithms to deliver comprehensive obstacle awareness, enabling smooth navigation and effortless maneuvering through fields.
